BANJO FITTINGS LS150-80 Y Strainer With 80 Mesh Stainless Steel Screen, 1-1/2 X 1-1/2 Inch Size
Item: AC8UALModel: LS150-80Cross Ref: 3DUC2
7 In Stock
Ships within 2 days via
10.00% off
€122.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Y Strainer |
| Blow Off Port | 1" |
| Connection | FNPT |
| Connection Type | NPT |
| Gasket Material | EPDM |
| Height | 9 5/8" |
| Housing Material | Polypropylene |
| Includes Screen | Yes |
| Length | 9 7/8" |
| Material | Polypropylene |
| Max. Operating Pressure | 150 psi |
| Max. Pressure | 150 psi |
| Maximum Pressure At 100°f | 166 psi |
| Maximum Temperature | 150°F |
| Mesh Size | 80 |
| Micron Rating | 177 µm |
| Pipe Size | 1 1/2" |
| Port 1 Connection Size | 1 1/2" |
| Port 1 Gender | Female |
| Port 2 Connection Size | 1 1/2" |
| Port 2 Connection Type | NPT |
| Port 2 Gender | Female |
| Port 3 Connection Size | 1" |
| Screen Material | Stainless Steel |
| Screen Material Grade | Grade 304 |
| Screen Mesh Size | 80 mesh |
| Seal | EPDM |
| Series | LS Series |
| Strainer Type | Mesh |
| Thread Type | FNPT |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 24.45 |
| Ship length (cm) | 25.08 |
| Ship width (cm) | 18.26 |
| HS code | 8421290065 |
| Country of Origin | US |
Product Variants
| Product | Model | Mesh Size | Gasket Material | Screen Mesh Size | Micron Rating | Screen Material Grade | Strainer Type | Connection Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LS150-30 | 30 | EPDM | 30 mesh | 595 µm | Grade 304 | Mesh | NPT | - | €132.16 | |
 |
LS150-50 | 50 | EPDM | 50 mesh | 297 µm | Grade 304 | Mesh | NPT | Polypropylene | €121.47 | |
 |

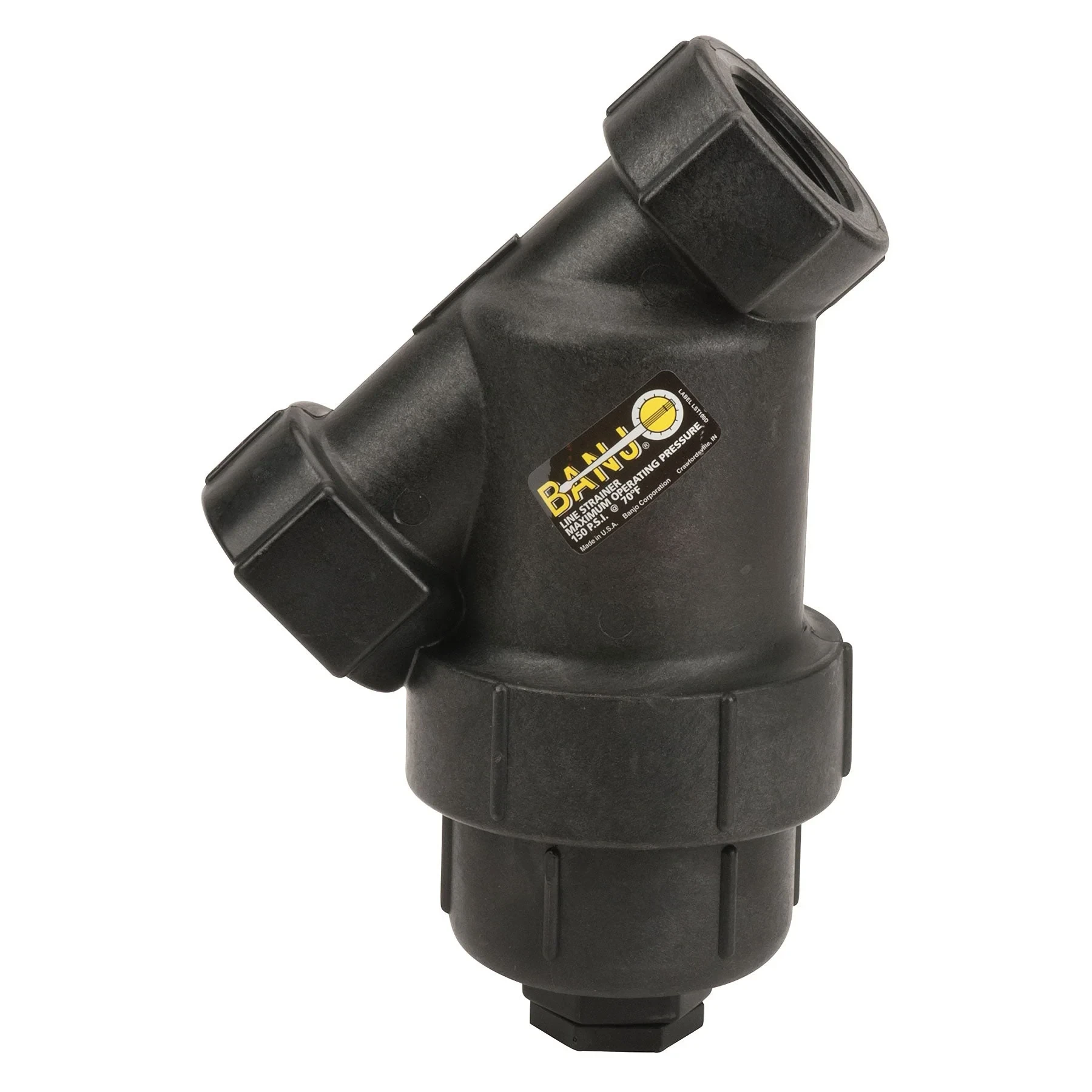

LS150-12 | 12 | EPDM | 12 mesh | 1680 µm | Grade 316 | Mesh | NPT | Polypropylene | €124.31 | |
 |
LS150-20 | 20 | FKM | 20 mesh | 841 µm | - | Mesh | NPT | - | €133.36 | |
 |
LS150-50V | 50 | - | - | - | - | - | - | - | €91.56 | RFQ
|
 |
LS150-06 | 6 | - | - | - | - | - | - | - | €84.30 | |
 |
LS150-120 | 20 | - | - | - | - | - | - | - | €84.30 |
