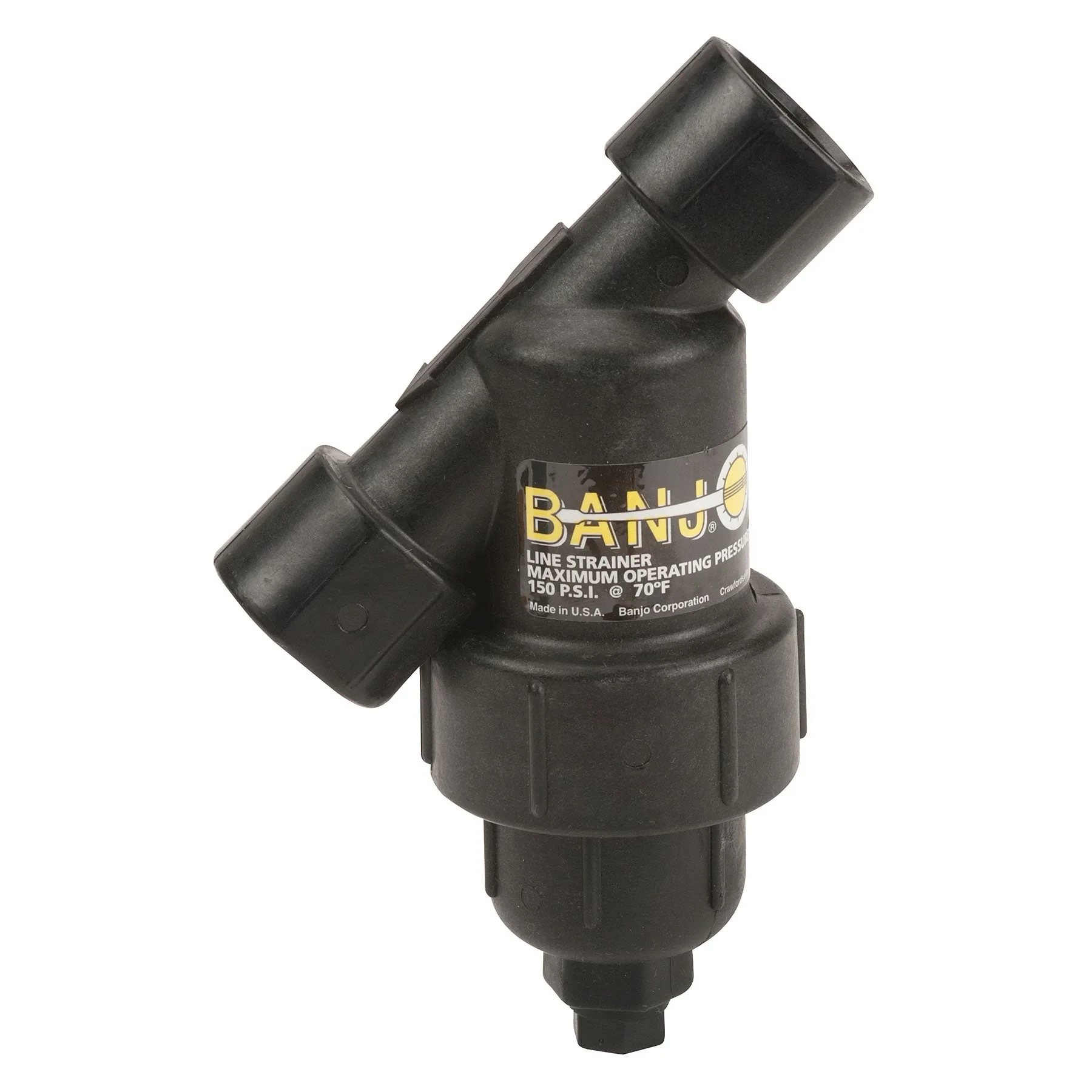

BANJO FITTINGS LS075-20 Y-Line Strainer, 20 Mesh Screen, 3/4 x 3/4 Inch, Stainless Steel
Item: AC8TZRModel: LS075-20Cross Ref: 3DTZ5
7 In Stock
Ships within 2 days via
10.00% off
€50.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Y Strainer |
| Blow Off Port | 1/4" |
| Connection | FNPT |
| Connection Type | NPT |
| Gasket Material | EPDM |
| Housing Material | Polypropylene |
| Includes Screen | Yes |
| Length | 6" |
| Material | Polypropylene |
| Max. Pressure | 150 psi |
| Maximum Pressure | 150 psi |
| Maximum Pressure At 100°f | 192 psi |
| Maximum Temperature | 150°F |
| Mesh Size | 20 |
| Micron Rating | 841 µm |
| Pipe Size | 3/4" |
| Port 1 Connection Size | 3/4" |
| Port 1 Gender | Female |
| Port 2 Connection Size | 3/4" |
| Port 2 Connection Type | NPT |
| Port 2 Gender | Female |
| Port 3 Connection Size | 1/4" |
| Screen Material | Stainless Steel |
| Screen Material Grade | Grade 304 |
| Screen Mesh Size | 20 mesh |
| Screen Size | 20 mesh |
| Seal | EPDM |
| Series | LS Series |
| Strainer Type | Mesh |
| Thread Type | FNPT |
| Width | 4.437" |
Shipping Info:
| Ship weight (kg) | 0.15 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 15.08 |
| Ship width (cm) | 11.27 |
| HS code | 8421290065 |
| Country of Origin | US |
