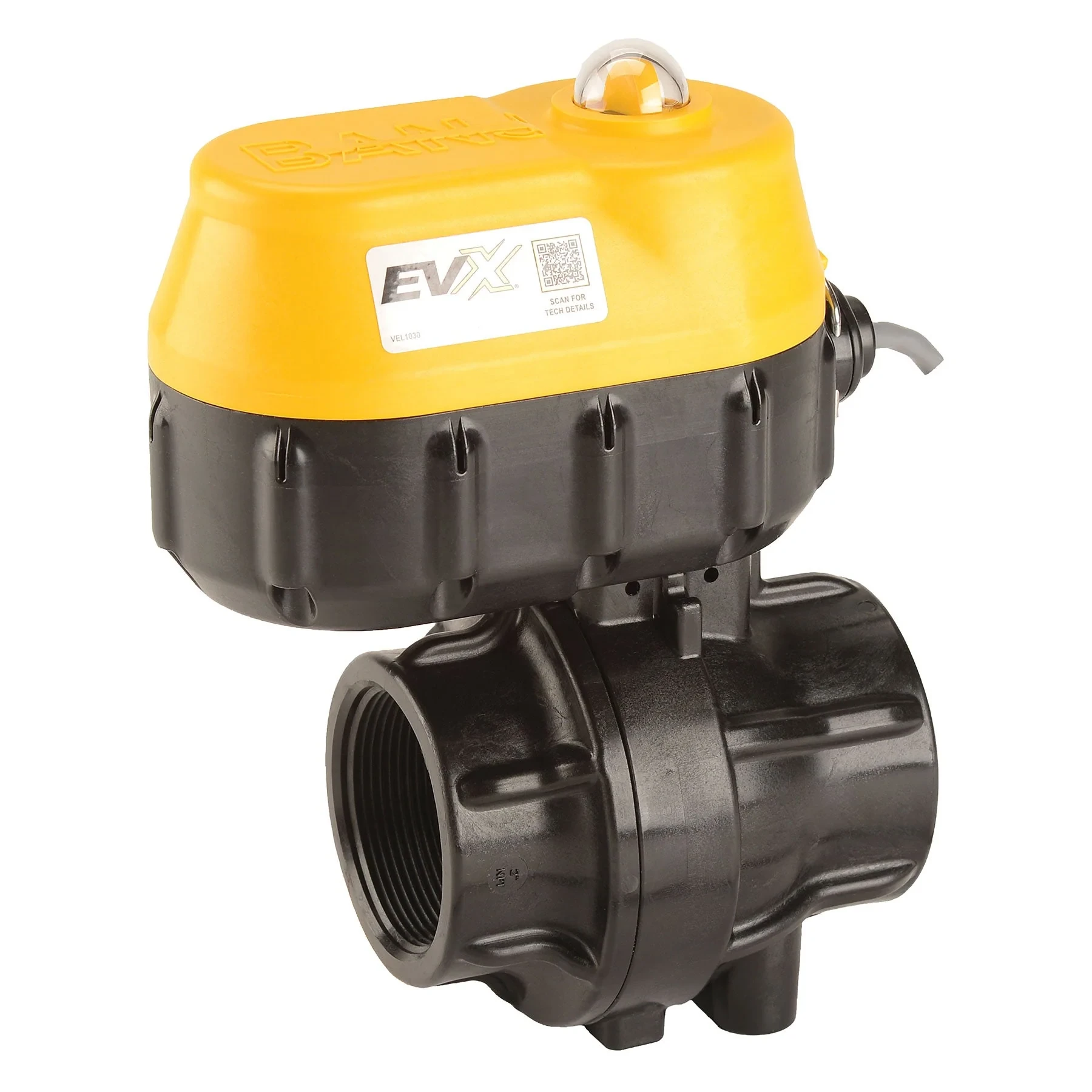

BANJO FITTINGS EVX22024 Polypropylene Electronic Actuated Ball Valve, 2 Inch Pipe Size, 24VDC
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Actuator Duty Cycle | 100% |
| Actuator Features | Internally Fused/Automatic Reset, Position Indicator |
| Actuator Motor Type | Reversing |
| Actuator Operation | 90° |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Actuated |
| Body Material | Glass Filled Polypropylene |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Fail Safe Position | Fail Last |
| For Media | Corrosive Chemicals, Water |
| Grade | Grade 316 |
| Ip Rating | IP68 |
| Max. Media Temperature | 150°F |
| Max. Pressure | 250 psi |
| Max. Pressure (cwp) | 250 psi |
| Max. Pressure Differential | 250 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Applicable |
| Media Temp. Range | 0°F to 150°F |
| Min. Media Temperature | 0°F |
| Nominal Valve Size | 2" |
| Number Of Pieces | 2 |
| Number Of Ways | 2 |
| Overall Length | 4.69" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 2" |
| Port | Full |
| Product Datasheet | banjo-fittings-evx22024.pdf |
| Seal Material | FKM |
| Seat Material | PTFE |
| Special Features | Not Applicable |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Temp. Range | -20°F to +150°F |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Deactivated State | normally Closed (NC) |
| Valve Structure | Two Piece |
| Valve Ways | 2-Way |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 2.57 |
| Ship height (cm) | 22.46 |
| Ship length (cm) | 17.07 |
| Ship width (cm) | 10.48 |
| Country of Origin | US |
