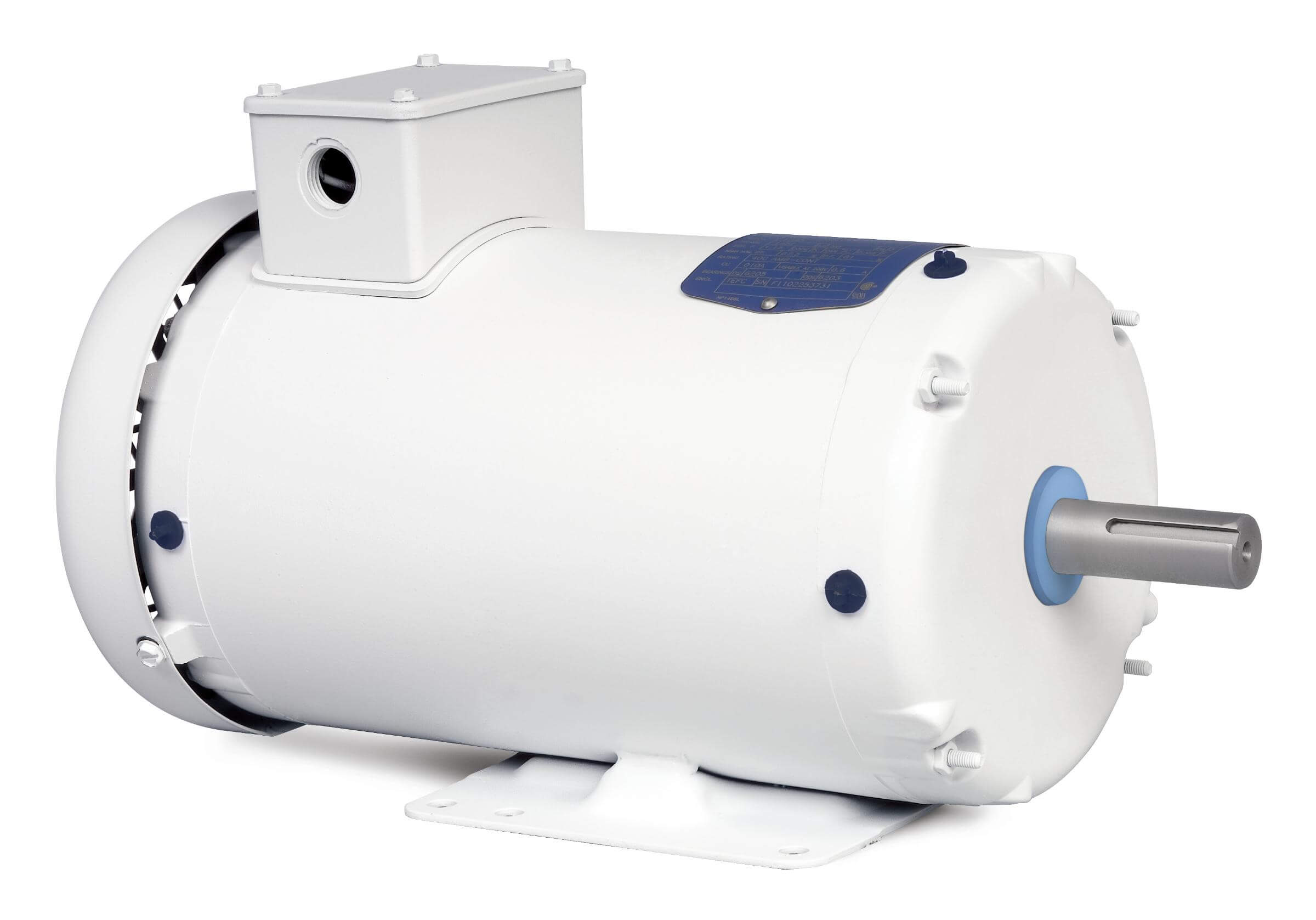

BALDOR MOTOR WDM3561TP Washdown Feather Picker Motor, 230/460V, 1800 RPM, 3 hp, 3 Phase, TEFC, 145T Frame
Get it by Tuesday, Aug 25
€2,268.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Application | Feather Picker |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Type | Sealed Ball |
| Color | White |
| Conduit Box Material | Steel |
| Conduit Box Position | F3 |
| Connection Box | Top |
| Design Code | D |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 87.5% |
| Enclosure Design | TEFC |
| Finish | Epoxy Coating |
| Frame | 145T |
| Frame Material | Steel |
| Frame Size | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 8A |
| Hp | 3 hp |
| Insulation Class | Class H |
| Integrated Overload Protection | No |
| Inverter Code | Not Inverter |
| Inverter Rated | No |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Design | Smooth With Key |
| Mounting Hole Pattern Length | 4", 5" |
| Mounting Hole Pattern Width | 5 1/2" |
| Mounting Type | Foot Mounted |
| Nameplate Speed | 1640/1800 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Height | 8 3/4" |
| Overall Length | 15.53" |
| Phase | 3 |
| Power Factor | 80 |
| Pulley Face Code | Standard |
| Service Factor | 1 |
| Shaft Design | Smooth Shaft |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Height | 3 1/2" |
| Shaft Height (in.) | 3.5 |
| Shaft Key Size | 0.19" x 0.19" |
| Shaft Keyway Size | 0.19" x 0.19" |
| Shaft Rotation | Reversible |
| Speed | 1640 RPM |
| Synchronous Speed | 1800 RPM |
| Voltage | 230/460V |
Shipping Info:
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 38.42 |
| Ship length (cm) | 54.93 |
| Ship width (cm) | 40.96 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - WDM3561TP-9
- Mounting hole pattern length (in): 4, 5
- Mounting hole pattern width (in): 5.5
