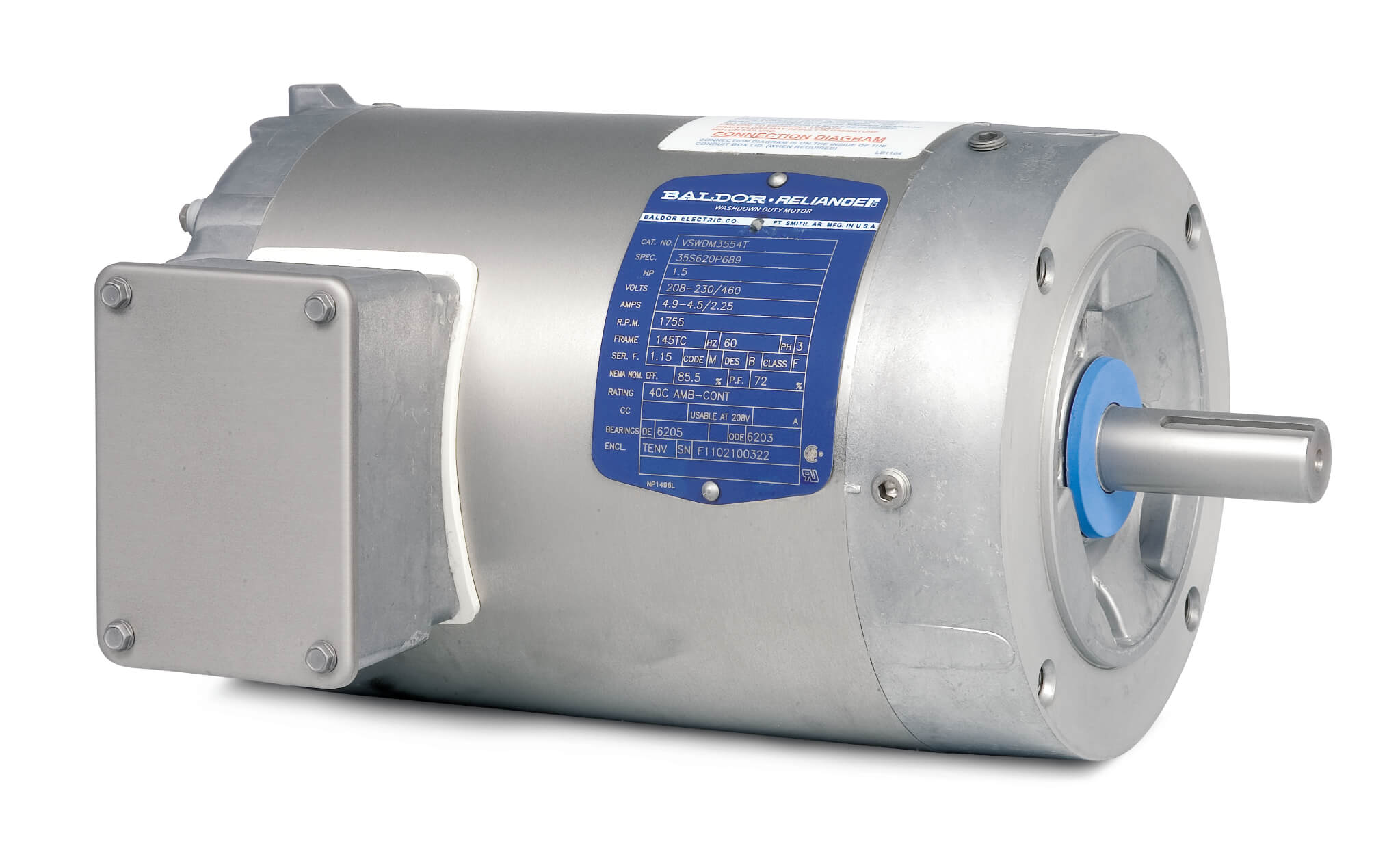

BALDOR MOTOR VSWDM3538 Paint Free Motor, 230/460V, 1800 RPM, 60 Hz, 0.5 hp, 3 Phase, TENV, 56C Frame
Get it by Friday, Aug 21
5.00% off
€1,487.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 1.6/0.8A |
| Amps @ 208v | 1.8A |
| Application | Washdown |
| Base | None |
| Base Indicator | None |
| Base Type | Not Applicable |
| Bearing Type | Sealed |
| Body Dia. | 6 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Break Down Torque | 6.71 lbs.-ft. |
| Code | M |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TENV |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 0.9A |
| Full Load Torque | 1.49 ft.-lbs. |
| Full Load Torque | 1.49 lbs.-ft. |
| Hp | 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Code | Inverter Duty |
| Lead | 9#18 |
| Length Less Shaft | 9 3/16" |
| Line-line Res. @ 25°c | 34 ohms A Ph/0 ohms B Ph |
| Locked Rotor Torque | 5.31 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Sealed |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Vertical |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | CCW |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Sub Application | Heavy Duty |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Multiplier | WD |
| Nameplate Speed | 1770 RPM |
| Nema Design | B |
| Nema/iec | NEMA |
| No Load Amps | 0.608A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 11.06" |
| Phase | 3 |
| Power Factor | 63 |
| Product Type | Washdown Motor |
| Proprietary | No |
| Pull Up Torque | 4.67 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | F |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 7/8" |
| Shaft Rotation | Reversible |
| Speed | 1700-1800 RPM |
| Start Configuration | DOL |
| Starting Amps | 6.34A |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 65°C |
| Temp. Rise @ Rated Load | 54°C |
| Temp. Rise @ S. F. Load | 65°C |
| Thermal Protection | None |
| Type | 3512M |
| Usable @ 208v | Yes |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 5.31 LB-FT
- Nameplate No.: NP1496L
- Pull-Up Torque: 4.67 LB-FT
- Starting Current: 6.34 Amps
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Full Load Amps | Nameplate Speed | Mounting Type | Speed | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CESWDM3546 | 208-230/460V | 1 hp | 5/8" | 1.7A | 1770 RPM | Rigid Base | 1700-1800 RPM | 4 | €2,516.64 | |
| CESWDM3546T | 208-230/460V | 1 hp | 7/8" | 1.5A | 1760 RPM | C Face, Foot Mounted | 1760 RPM | 4 | €1,823.99 | |
| CESWDM3554 | 208-230/460V | 1 1/2 hp | 5/8" | 2.1A | 1755/1770 RPM | C Face, Foot Mounted | 1755 RPM | 4 | €1,902.74 | |
| CESWDM3554T | 208-230/460V | 1 1/2 hp | 7/8" | 4.4-4.2/2.1A | 1755/1770 RPM | C Face, Foot Mounted | 1700-1800 RPM | 4 | €1,952.93 | |
| CESWDM3555T | 208-230/460V | 2 hp | 7/8" | 5-5.4/2.5A | 3450 RPM | C Face, Foot Mounted | 3400-3600 RPM | 2 | €2,313.20 | |
| CESWDM3558 | 208-230/460V | 2 hp | 5/8" | 2.9A | 1750 RPM | C Face, Foot Mounted | 1750 RPM | 4 | €2,251.19 | |
| CESWDM3558T | 208-230/460V | 2 hp | 7/8" | 5.6-5.9/2.8A | 1755 RPM | C Face, Foot Mounted | 1700-1800 RPM | 4 | €2,396.88 |
