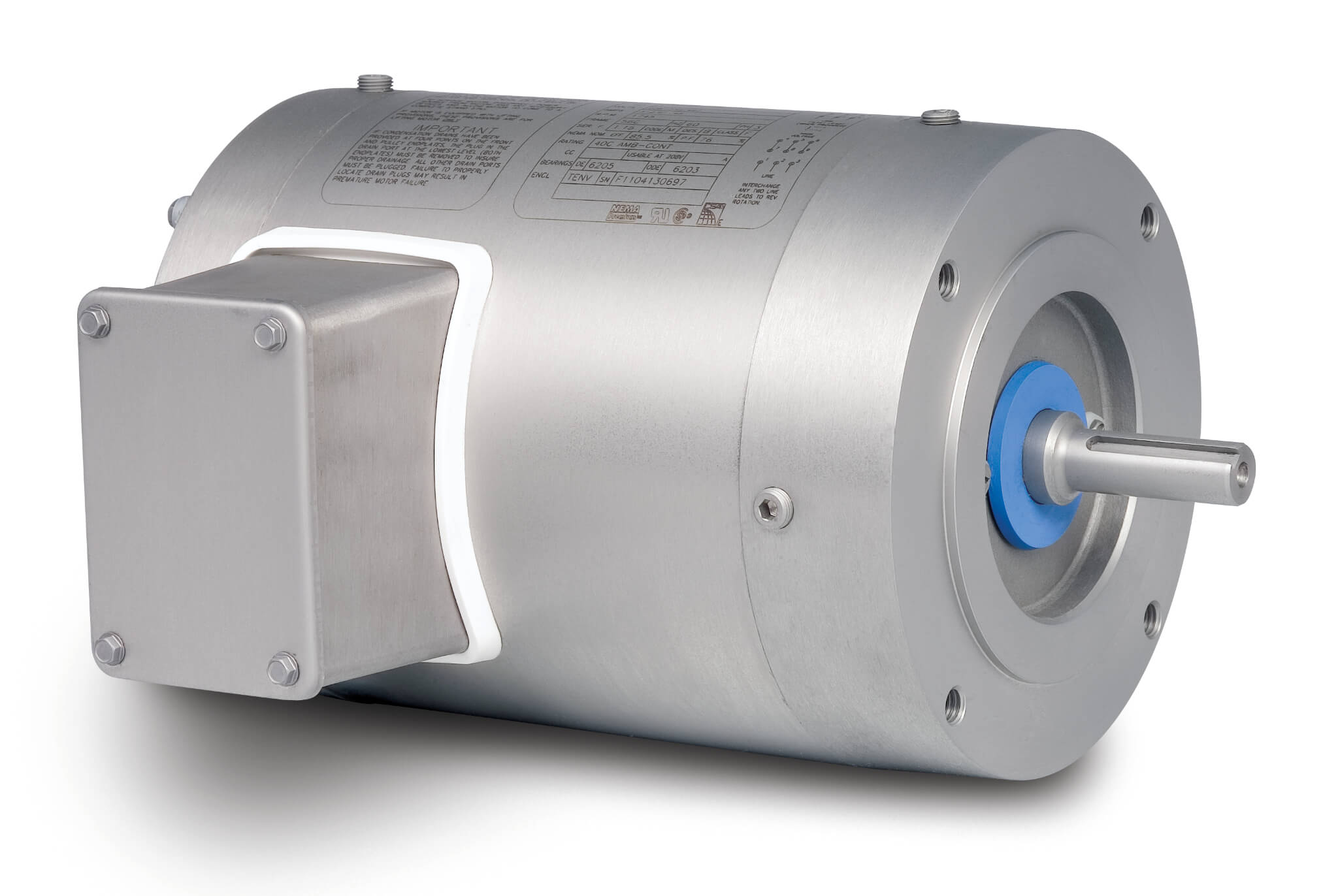

BALDOR MOTOR VSSWDM3541 Washdown Motor, 3600 RPM, 60 Hz, 0.75 hp, 3 Phase, TENV, 56C Frame, Stainless Steel
Get it by Tuesday, Sep 1
€2,045.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 2.2/1.1A |
| Amps @ 208v | 2.3A |
| Base | None |
| Base Indicator | None |
| Base Type | Not Applicable |
| Break Down Torque | 7.6 lbs.-ft. |
| Code | N |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TENV |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.2/1.1A |
| Full Load Torque | 1.1 ft.-lbs. |
| Full Load Torque | 1.1 lbs.-ft. |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 9#18 |
| Line-line Res. @ 25°c | 14.8 ohms A Ph/0 ohms B Ph |
| Locked Rotor Torque | 5.6 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Mounting Type | C Face, Footless |
| Multiplier | WD |
| Nameplate Speed | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 0.61A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 11.09" |
| Phase | 3 |
| Power Factor | 80 |
| Product Datasheet | baldor-motor-vsswdm3541.pdf |
| Proprietary | No |
| Pull Up Torque | 4.1 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | R |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 3400-3600 RPM |
| Start Configuration | DOL |
| Starting Amps | 11.7A |
| Synchronous Speed | 3600 RPM |
| Temp. Rise @ Rated Load | 65°C |
| Temp. Rise @ S. F. Load | 77°C |
| Type | 3518M |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 5.6 LB-FT
- Nameplate No.: NP1951A01
- Pull-Up Torque: 4.1 LB-FT
- Starting Current: 11.7 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Full Load Amps | Nameplate Speed | Finish | Mounting Type | Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CESSWDM23933T | 230/460V | 15 hp | 1 5/8" | 35.4/17.7A | 1765 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €10,122.00 | |
| CESSWDM23934T | 230/460V | 20 hp | 1 5/8" | 46.8/23.4A | 1760/1765 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €11,738.29 | |
| CESSWDM23994T | 208-230/460V | 15 hp | 1 5/8" | 33-36/16.5A | 3520 RPM | Unfinished | C Face, Foot Mounted | 3400-3600 RPM | €10,284.42 | |
| CESSWDM3545 | 230/460V | 1 hp | 5/8" | 1.4A | 3450 RPM | Unpainted | C Face, Foot Mounted | 3450 RPM | €2,286.63 | |
| CESSWDM3546 | 208-230/460V | 1 hp | 5/8" | 1.5A | 1745/1770 RPM | Unfinished | C Face, Foot Mounted | 1745 RPM | €2,277.76 | |
| CESSWDM3546T | 208-230/460V | 1 hp | 7/8" | 3.3-3/1.5A | 1760 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €2,311.24 | |
| CESSWDM3546T-5 | 575V | 1 hp | 7/8" | 1.25A | 1765 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €2,311.24 |
