BALDOR MOTOR CESSWDM3545 Washdown Motor, 3600 RPM, 60 Hz, 1 hp, 3 Phase, TENV, 56C Frame, Stainless Steel
Get it by Tuesday, Aug 18
€2,286.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 1.4A @ 460V, 2.8A @ 230V , 2.8A @ 230V, 1.4A @ 460V |
| Auxillary Box | No Auxillary Box |
| Auxillary Box Lead Termination | None |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Blower | None |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 82.5% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TENV |
| Feedback Device | NO FEEDBACK |
| Finish | Unpainted |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Front Face Code | Standard |
| Front Shaft Indicator | None |
| Full Load Amps | 1.4A |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 1.4A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Kva Code | N |
| Lifting Lugs | No Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 9 @ 18 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Type | 3520M |
| Mounting Type | C Face, Foot Mounted |
| Nameplate Speed | 3450 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Output Frequency | 1 hp @ 60 Hz |
| Overall Length | 11.09" |
| Phase | 3 |
| Power Factor | 82 |
| Product Datasheet | baldor-motor-cesswdm3545.pdf |
| Product Family | Wash Down All Stainless Steel |
| Pulley End Bearing Type | Sealed Bearing |
| Pulley Face Code | C Face |
| Pulley Shaft Indicator | Standard |
| Rodent Screen | Not Available |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | No Slinger |
| Speed | 3400-3600 RPM , 3450 RPM |
| Speed Type | Single Speed |
| Start Type | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Synchronous Speed @ Hz | 3600 RPM @ 60 Hz |
| Thermal Device - Bearing | None |
| Thermal Device - Winding | None |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 230/460V |
| Voltage @ Frequency | 230V @ 60 Hz, 460V @ 60 Hz |
| Winding Thermal 1 | None |
| Winding Thermal 2 | None |
| Xp Class And Group | None |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 82.50%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: N
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Product Family: Wash Down All Stainless Steel
- Pulley End Bearing Type: Sealed Bearing
- Pulley Face Code: C-Face
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 0.625 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
Documentation:
Product Variants
| Model | Voltage | Hp | Shaft Dia. | Full Load Amps | Nameplate Speed | Finish | Mounting Type | Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

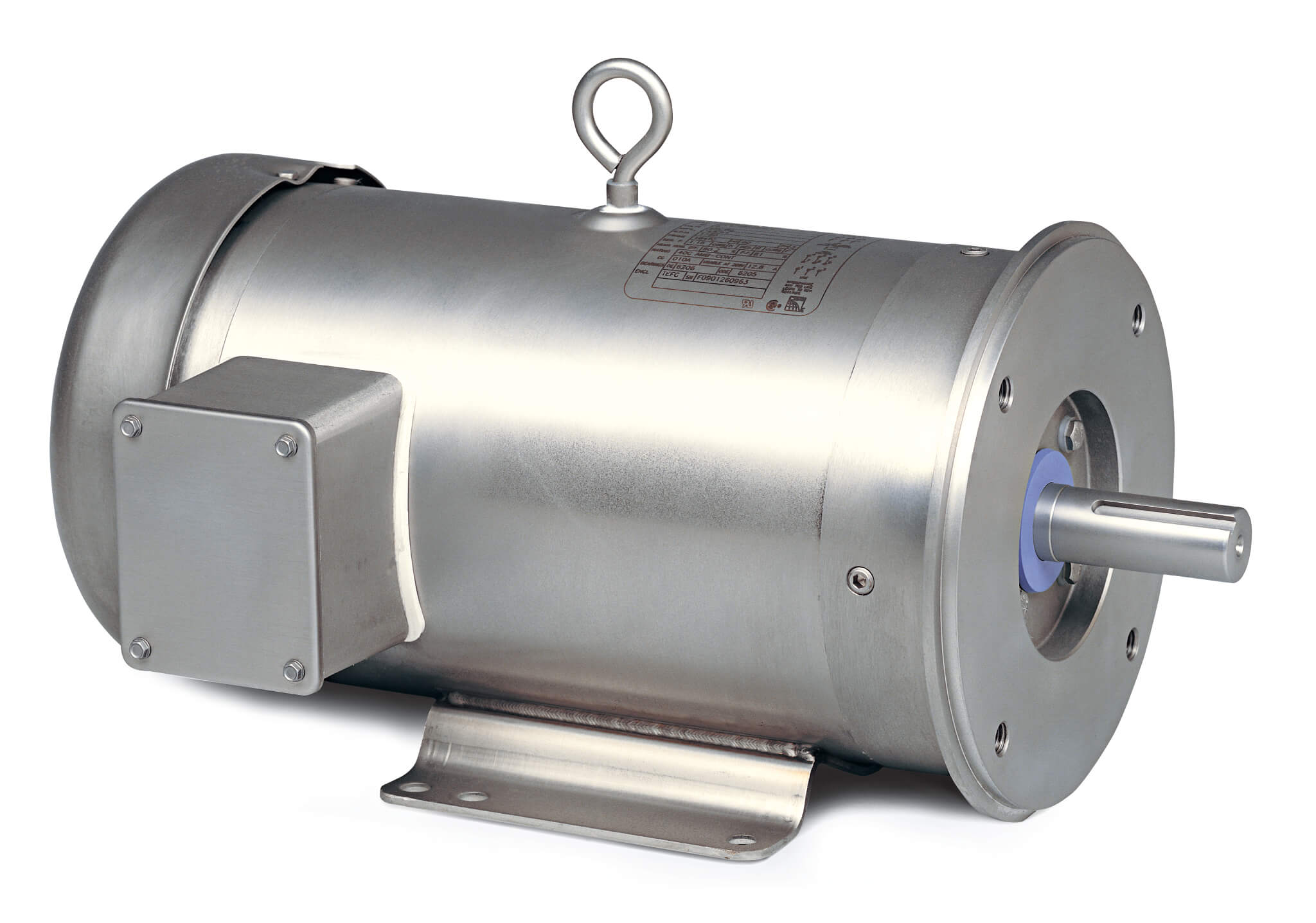

| CESSWDM23933T | 230/460V | 15 hp | 1 5/8" | 35.4/17.7A | 1765 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €10,122.00 | |
| CESSWDM23934T | 230/460V | 20 hp | 1 5/8" | 46.8/23.4A | 1760/1765 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €11,738.29 | |
| CESSWDM23994T | 208-230/460V | 15 hp | 1 5/8" | 33-36/16.5A | 3520 RPM | Unfinished | C Face, Foot Mounted | 3400-3600 RPM | €10,284.42 | |
| CESSWDM3546 | 208-230/460V | 1 hp | 5/8" | 1.5A | 1745/1770 RPM | Unfinished | C Face, Foot Mounted | 1745 RPM | €2,277.76 | |
| CESSWDM3546T | 208-230/460V | 1 hp | 7/8" | 3.3-3/1.5A | 1760 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €2,311.24 | |
| CESSWDM3546T-5 | 575V | 1 hp | 7/8" | 1.25A | 1765 RPM | Unfinished | C Face, Foot Mounted | 1700-1800 RPM | €2,311.24 | |
| CESSWDM3550 | 208-230/460V | 1 1/2 hp | 5/8" | 3.7-3.6/1.8A | 3500 RPM | Unfinished | C Face, Foot Mounted | 3400-3600 RPM | €2,300.40 |
