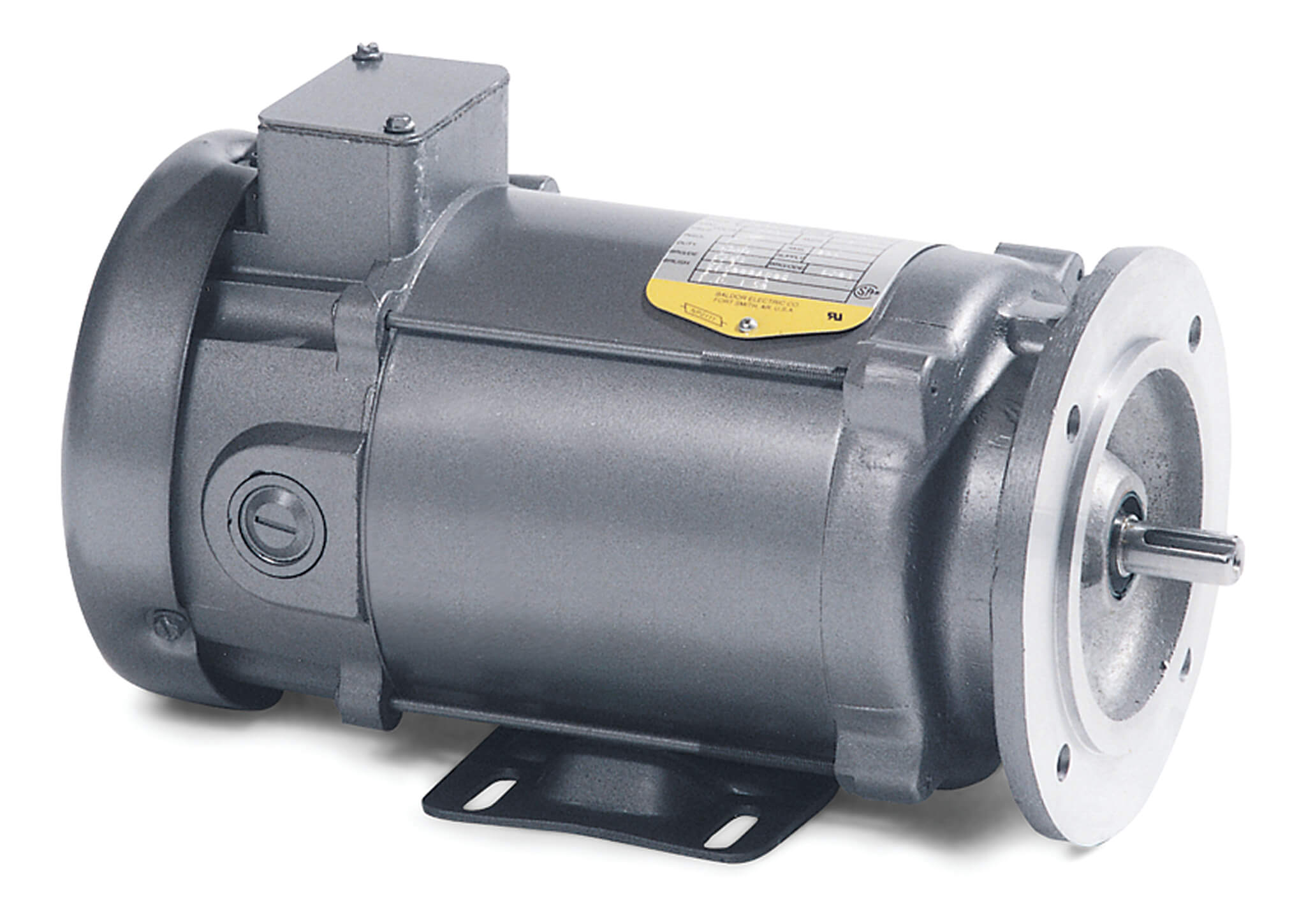

BALDOR MOTOR VP3603D General Purpose DC Motor, 180V, 1750 RPM, 3 hp, 2.2kW, TEFC, D112D Frame
Get it by Monday, Dec 22
€5,288.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Ac/dc | DC |
| Ambient Temp. | 40°C |
| Amps | 14A |
| Armature Amps | 14A |
| Armature Inertia | 107.11 lbs.-sq. ft. |
| Armature Voltage | 180V |
| Base Indicator | Rigid |
| Base Rpm | 1750 RPM |
| Base Type | Rigid Base |
| Brushes | 2/BP5031A01 |
| Class | Stock |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | D112D |
| Frame Material | Steel |
| Hp | 11/5 hp |
| Insulation Class | Class F |
| Multiplier | L1 |
| Nameplate Rpm | 1750 RPM |
| Nema/iec | IEC |
| Output Kw | 2.2 kW |
| Overall Length | 24.57" |
| Power | 2.2 kW |
| Product Datasheet | baldor-motor-vp3603d.pdf |
| Proprietary | No |
| Revision | S |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1.103" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Type | 3649P |
| Voltage | 180V |
Shipping Info:
| Ship weight (kg) | 54.9 |
| Ship height (cm) | 34.61 |
| Ship length (cm) | 80.81 |
| Ship width (cm) | 33.82 |
| HS code | 85013200 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Nameplate No.: NP0891L
Documentation:
Product Variants
| Model | Hp | Frame | Shaft Dia. | Type | Overall Length | Revision | Conduit Box Position | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VP3311D | 9/50 hp, 1/4 hp | - | 0.552" | 3320P | 11.6" | K | B35 | 1.25A | €1,116.07 | |
| VP3316D | 1/4 hp, 1/3 hp | - | 0.552" | 3327P | 12.54" | J | B35 | 1.6A | €1,176.65 | |
| VP3326D | 37/100 hp, 1/2 hp | - | 0.552" | 3336P | 14.29" | Q | B35 | - | €1,316.76 | |
| VP3428D | 37/100 hp, 1/2 hp | - | 0.551" | 3416P | 13.15" | Y | B35 | 2.5A | €1,365.04 | |
| VP3436D | 57/100 hp, 3/4 hp | - | 0.748" | 3428P | 14.35" | F | B35 | 3.7A | €1,598.85 | |
| VP3439D | 14/25 hp, 3/4 hp | - | 0.748" | 3420P | 14.35" | F | B35 | 3.6A | €1,415.21 | |
| VP3455D | 3/4 hp, 1 hp | - | 0.748" | 3435P | 15.22" | E | B35 | 5A | €1,945.32 |
