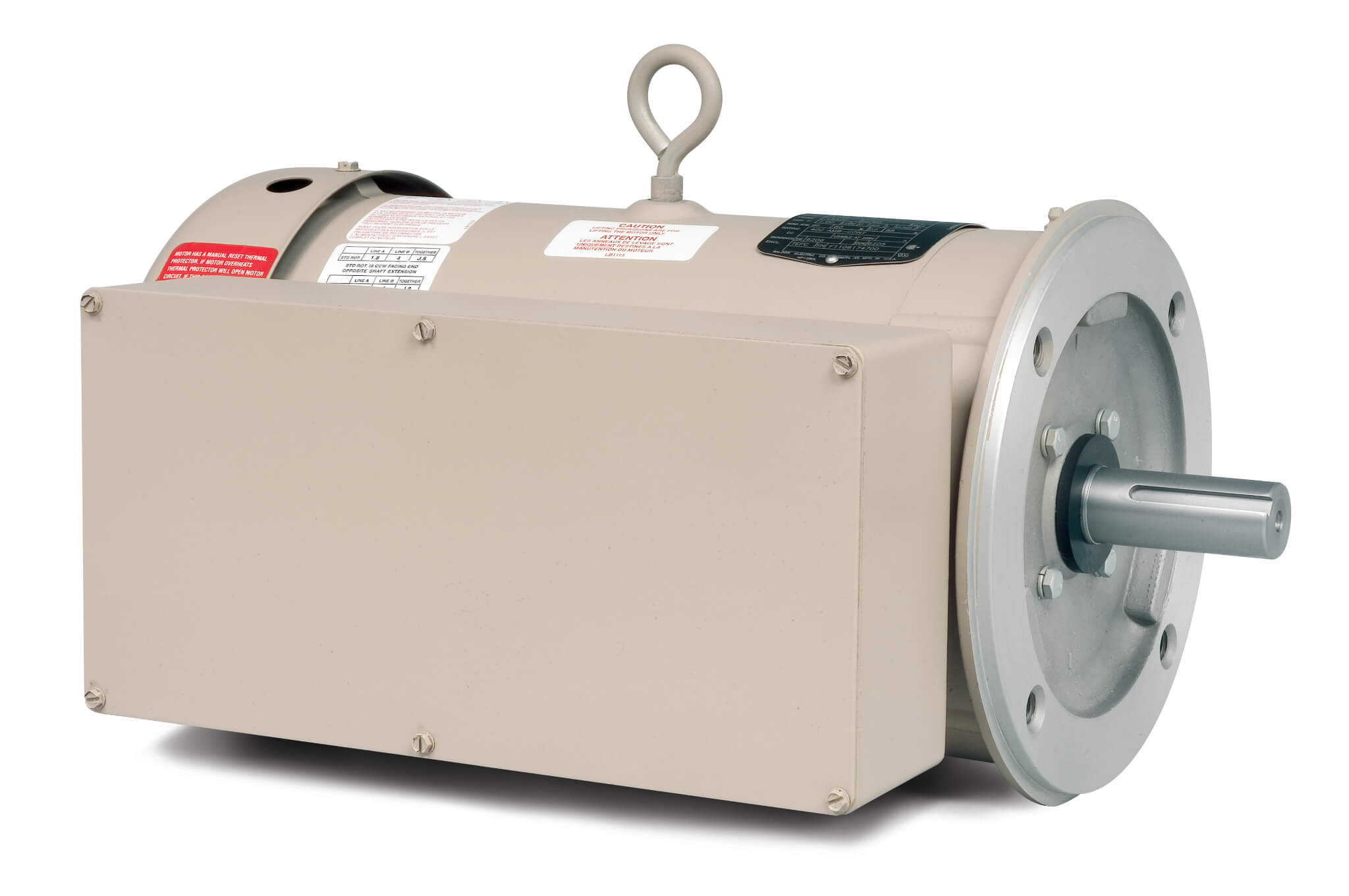

BALDOR MOTOR VFDL3612TM Farm Duty Motor, 1800 RPM, 60 Hz, 5 hp, 1 Phase, TEFC, 184TC Frame
Get it by Wednesday, Dec 24
€3,519.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 23A |
| Base Type | Not Applicable |
| Break-down Torque | 43 lbs.-ft. |
| Class | Stock |
| Code | J |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 184TC |
| Frame Material | Steel |
| Frame Size | 184TC |
| Frequency | 60 Hz |
| Full Load Torque | 15 ft.-lbs. |
| Full Load Torque | 15 lbs.-ft. |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#10 A PH,3#16 B&J |
| Lead | 2#10 A Ph, 3#16 B&J |
| Line-line Res. @ 25° C | 0.353 ohms A Ph/2.23 ohms B Ph |
| Locked-rotor Torque | 46 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | C Face, Footless |
| Multiplier | L1 |
| Nema/iec | NEMA |
| No Load Amps | 10A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 18.04" |
| Phase | 1 |
| Power Factor | 88 |
| Product Datasheet | baldor-motor-vfdl3612tm.pdf |
| Proprietary | No |
| Pull-up Torque | 36 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | B |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 163A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise @ Rated Load | 97°C |
| Thermal Protection | Manual |
| Type | 3646LC |
| Voltage | 230V |
| Wire Size | 10 AWG |
Shipping Info:
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 41.28 |
| Ship length (cm) | 67.63 |
| Ship width (cm) | 42.23 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 46 LB-FT
- Nameplate No.: NP1280L
- Pull-Up Torque: 36 LB-FT
- Starting Current: 163 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Service Factor | Overall Length | Power Factor | Type | Break-down Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
VFDL3516TM | 208-230V | 2 hp | 145TC | 1.15 | 14.16" | 99 | 3535LC | 14.5 lbs.-ft. | €2,127.72 | |
|
VFDL3610TM | 230V | 3 hp | 184TC | 1 | 18.04" | 76 | 3640LC | 32 lbs.-ft. | €2,882.42 |
