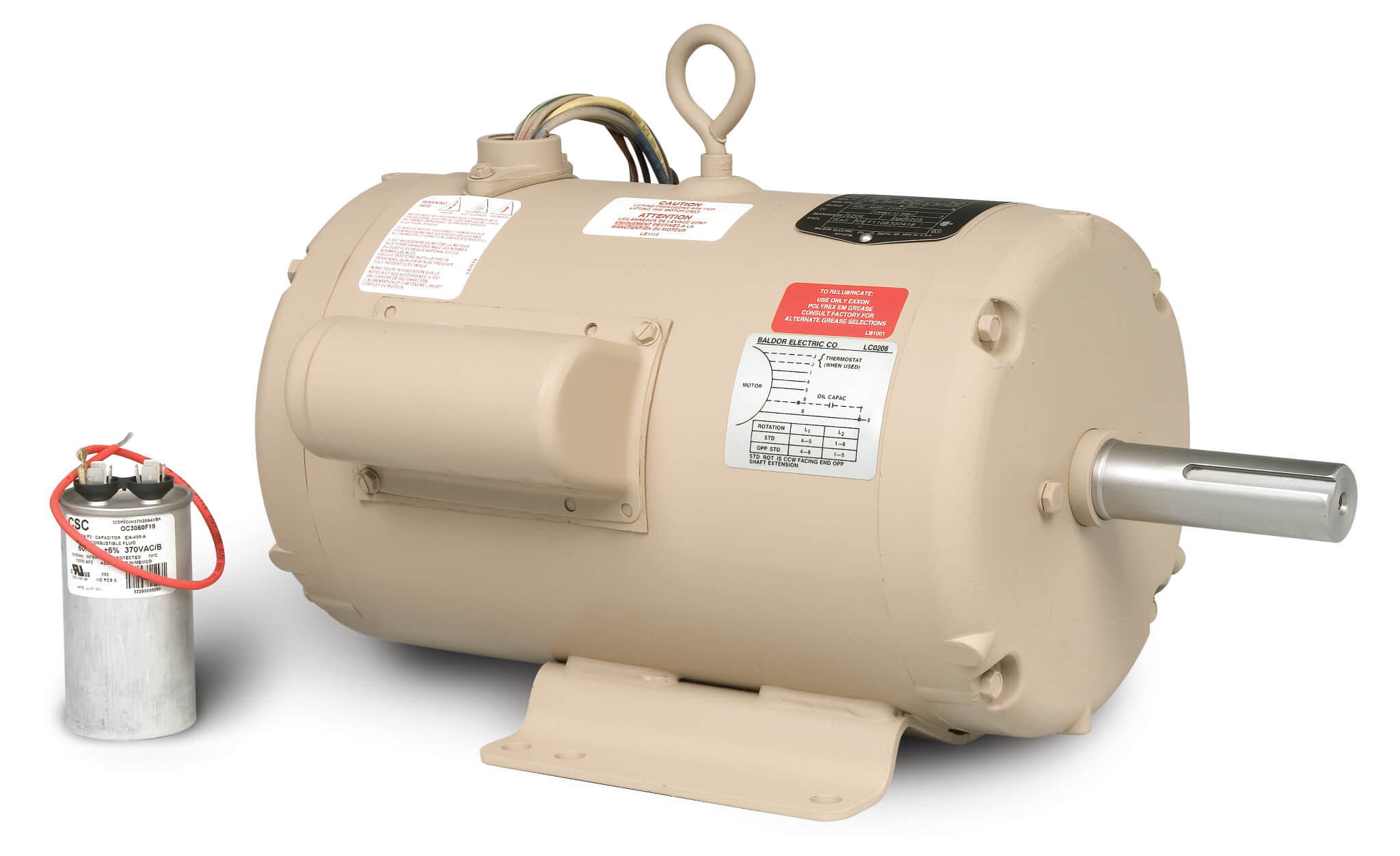

BALDOR MOTOR UCLE153 Grain Dryer Motor, 230V, 3600 RPM, 60 Hz, 1.5/3 hp, 1 Phase, TEAO, 145TZ Frame
Get it by Tuesday, Dec 23
€1,767.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 12.5A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 11.5 lbs.-ft. |
| Class | Stock |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | TEAO |
| Frame | 145TZ |
| Frame Material | Steel |
| Frame Size | 143TZ |
| Frequency | 60 Hz |
| Full Load Torque | 4.6 lbs.-ft. |
| Full Load Torque | 4.6 ft.-lbs. |
| Hp | 1 1/2 hp to 3 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#14 A PH 30'LG,2#18 B PH Y |
| Lead | 2#14 A Ph 30'Lg, 2#18 B Ph Y |
| Leads | 2#14A Ph 30 Ft. Long, 2#18 B Ph Y |
| Line-line Res. @ 25° C | 0.766 ohms A Ph/1.45 ohms B Ph |
| Locked-rotor Torque | 10.5 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Rigid Base |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 2.6A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Overall Length | 14 1/4" |
| Phase | 1 |
| Power Factor | 95 |
| Product Datasheet | baldor-motor-ucle153.pdf |
| Proprietary | No |
| Pull-up Torque | 9.3 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | AB |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 77A |
| Synchronous Rpm | 3600 RPM |
| Thermal Protection | Thermostat |
| Type | 3532LC |
| Voltage | 230V |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 10.5 LB-FT
- Nameplate No.: NP1279L
- Pull-Up Torque: 9.3 LB-FT
- Starting Current: 77 Amps
Documentation:
Product Variants
| Model | Hp | Nameplate Rpm | Motor Enclosure Design | Frame | Insulation Class | Service Factor | Mounting Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

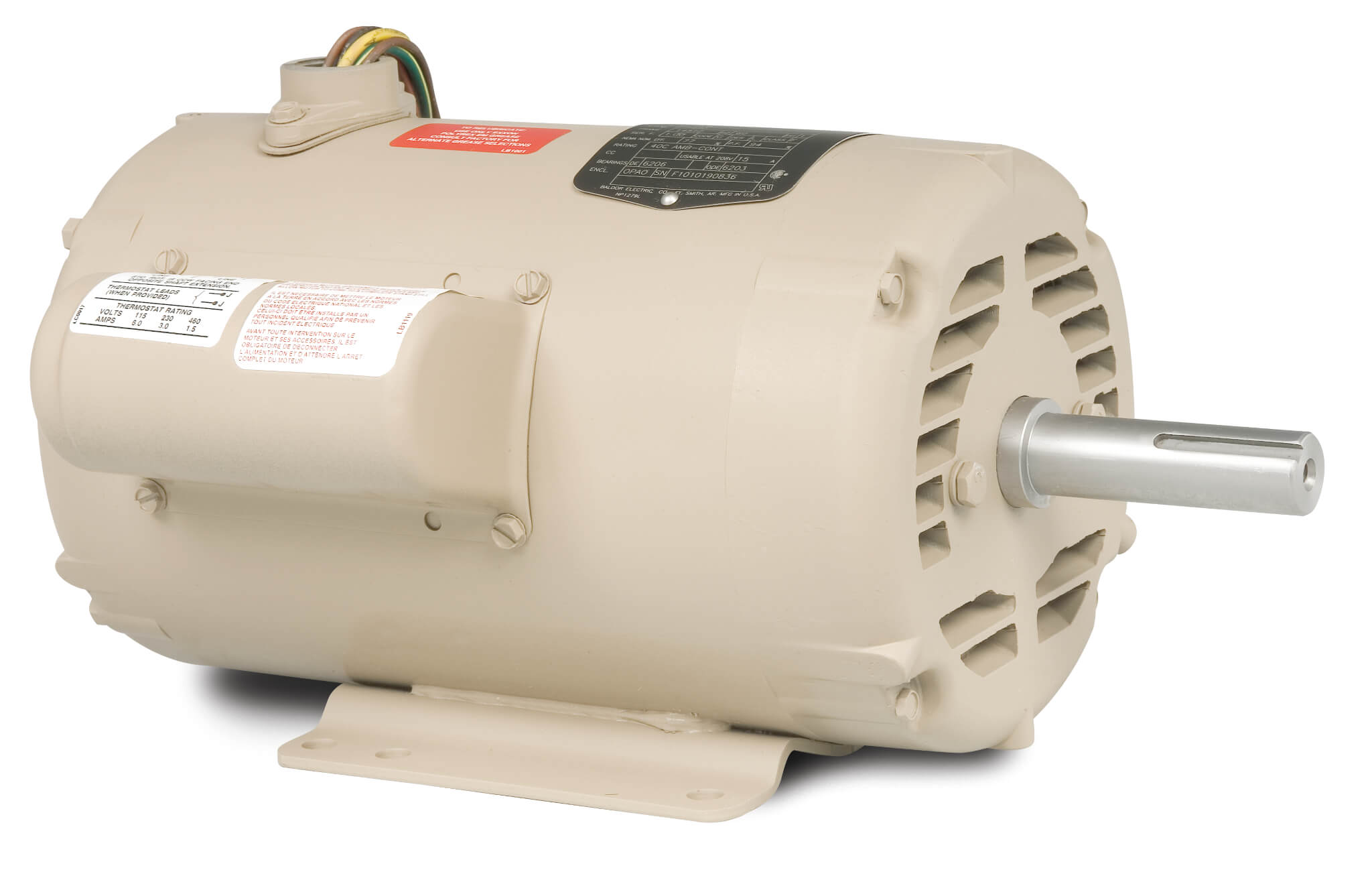

| UCL1015 | 10 hp to 15 hp | 3450 RPM | Open Air Over | 215Z | Class F | 1 | Rigid Base | 17.81" | €3,659.04 | |
| UCL3145 | 3 hp to 4 1/2 hp | 3450 RPM | Open Liquid Cooled | 145TZ | Class F | 1 | Rigid Base | 15.63" | €1,709.54 | |
| UCL345 | 3 hp to 4 1/2 hp | 3450 RPM | Open Air Over | 182Z | Class F | 1 | Rigid Base | 14.88" | €1,780.23 | |
| UCL570 | 5 hp to 7 hp | 3450 RPM | Open Air Over | 182TZ | Class F | 1 | Rigid Base | 16.87" | €2,103.82 | |
| UCL710 | 7 1/2 hp to 10 hp | 3450 RPM | Open Air Over | 182TZ | Class F | 1 | Rigid Base | 16.87" | €2,256.15 | |
| UCL7510 | 7 1/2 hp to 10 1/2 hp | 3450 RPM | Open Air Over | 215Z | Class F | 1 | Rigid Base | 17.44" | €2,855.55 | |
| UCLE1015 | 10 hp to 15 hp | 3500 RPM | Totally Enclosed Air Over | 215Z | Class F | 1 | Rigid Base | 18.56" | €3,691.90 |
