BALDOR MOTOR RM3112A Three Phase Motor, 230/460V, 1800 RPM, 60 Hz, 0.75 hp, ODP, 56H Frame
Get it by Friday, Dec 19
10.00% off
€1,049.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Blower/Fan Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 3/1.5A |
| Amps @ 208v | 3.6A |
| Base Indicator | Resilient |
| Base Type | Resilient |
| Bearing Type | Ball |
| Break-down Torque | 10 lbs.-ft. |
| Class | Stock |
| Code | K |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Enclosure Design | Open |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.5/3/3.6A |
| Full Load Torque | 2.25 ft.-lbs. |
| Full Load Torque | 2.25 lbs.-ft. |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Inverter Rated | No |
| Lead | 12#18 |
| Length | 11 9/16" |
| Length Less Shaft | 9 11/16" |
| Line-line Res. @ 25° C | 17.68 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 8.8 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Resilient Base |
| Multiplier | K |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| Nema/iec | NEMA |
| No Load Amps | 1.2A |
| No. Of Motor Leads | 12 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 74% |
| Overall Length | 11 9/16", 11.59" |
| Part Winding Start Capable | Yes |
| Phase | 3 |
| Power Factor | 60 |
| Product Datasheet | baldor-motor-rm3112a.pdf |
| Proprietary | No |
| Pull-up Torque | 8.5 lbs.-ft. |
| Pulley Face Code | Resilient Mount |
| Revision | Q |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 7/8" |
| Shaft Rotation | Reversible |
| Shaft Type | Standard |
| Start Configuration | DOL |
| Starting Amps | 10A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 59°C |
| Temp. Rise @ Rated Load | 48°C |
| Temp. Rise @ S. F. Load | 59°C |
| Thermal Protection | Automatic |
| Type | 3420M |
| Usable @ 208v | Yes |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - RHM445A, RHM3112
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 8.8 LB-FT
- Nameplate No.: NP1257L
- Pull-Up Torque: 8.5 LB-FT
- Starting Current: 10 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Frame | Rpm Range | Insulation Class | Shaft Dia. | Motor Type | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

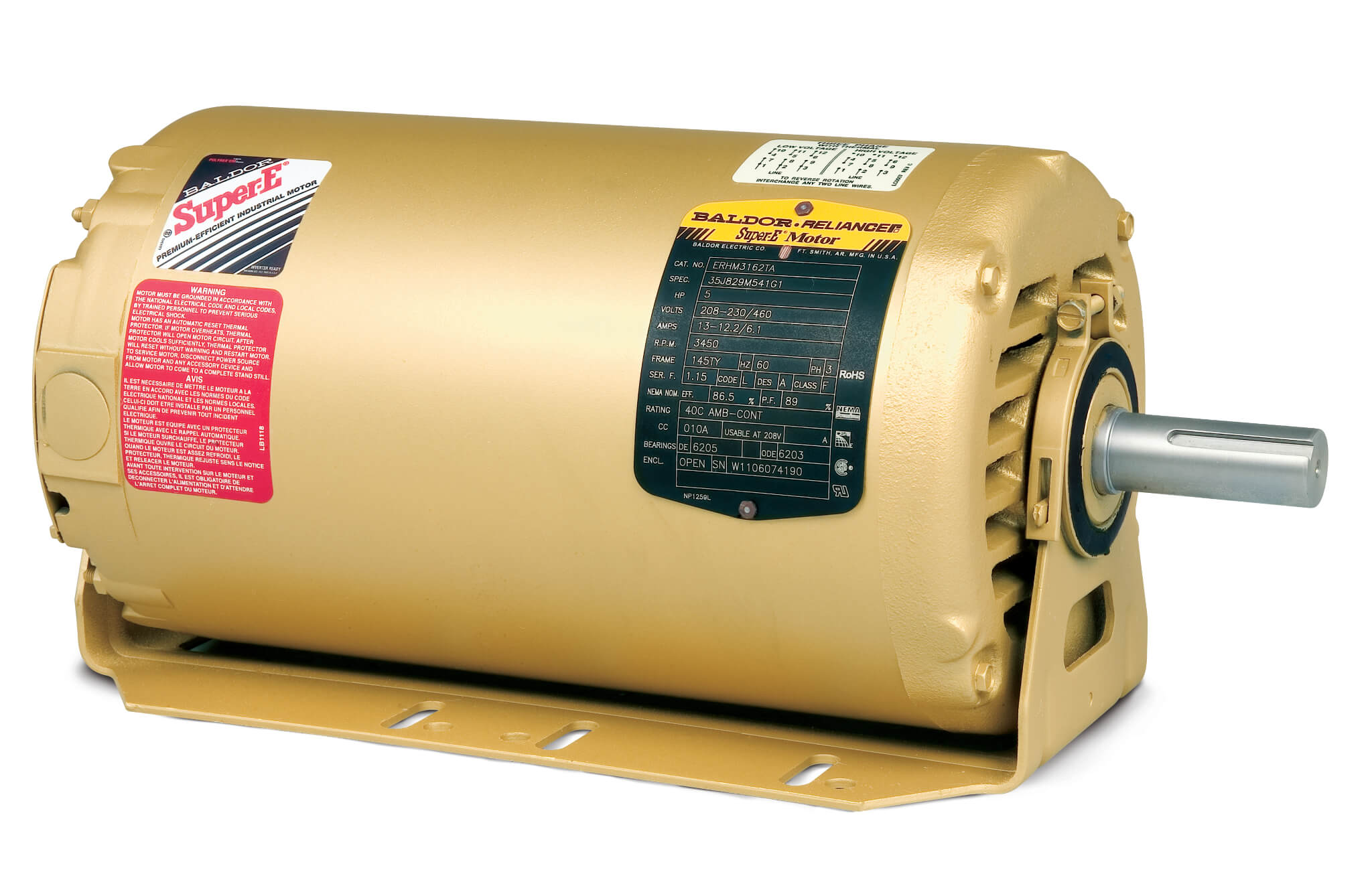

| ERHM3162TA | 230/460V | 5 hp | 145TY | - | Class F | 7/8" | Three Phase | 89 | €1,773.98 | |

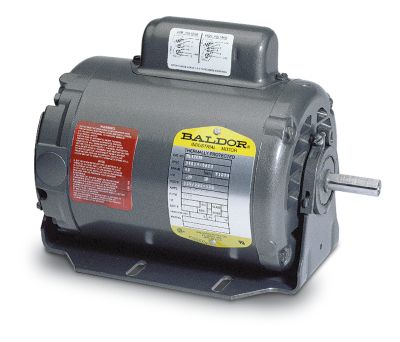

| ERM3003 | 230/460V | 1/4 hp | 48 | 1700-1800 RPM | Class B | 1/2" | 3413M | 62 | €681.58 | |
| ERM3007 | 230/460V | 1/3 hp | 48 | 1700-1800 RPM | Class B | 1/2" | 3416M | 66 | €709.03 | |
| ERM3009 | 230/460V | 1/2 hp | 48 | 3400-3600 RPM | Class B | 1/2" | 3416M | 78 | €747.84 | |
| ERM3010 | 230/460V | 1/2 hp | 48 | 1700-1800 RPM | Class B | 1/2" | 3424M | 78 | €762.03 | |
| ERM3104 | 230/460V | 1/3 hp | 56 | 1700-1800 RPM | Class B | 5/8" | 3416M | 66 | €709.03 | |
| ERM3108 | 230/460V | 1/2 hp | 56 | 1700-1800 RPM | Class B | 5/8" | 3424M | 78 | €762.03 |
