BALDOR MOTOR RL1307A Fan And Blower Motor, 115/230V, 1800 RPM, 60 Hz, 0.75 hp, 1 Phase, ODP, 56H Frame
Get it by Thursday, Dec 18
10.00% off
€1,095.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 10.2/5.1A |
| Amps @ 208v | 6A |
| Base Indicator | Resilient |
| Base Type | Resilient |
| Bearing Type | Ball |
| Body Dia. | 5 13/16" |
| Break-down Torque | 5.5 lbs.-ft. |
| Class | Stock |
| Code | K |
| Conduit Box Position | F1 |
| Design Code | N |
| Dia. | 5 13/16" |
| Diameter | 5 13/16" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Enclosure Design | Open |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.1A |
| Full Load Torque | 2.25 ft.-lbs. |
| Full Load Torque | 2.25 lbs.-ft. |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 6#18, 1#14 #1Th |
| Lead | 6#18,1#14 #1TH |
| Length | 12 15/16" |
| Length Less Shaft | 11 1/16" |
| Line-line Res. @ 25° C | 3.1 ohms A Ph/1.64 ohms B Ph |
| Locked-rotor Torque | 9.5 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Standard |
| Motor Shaft Rotation | CCW |
| Motor Sub Application | HVAC/R |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Resilient Base |
| Multiplier | K |
| Nameplate Rpm | 1725 RPM |
| Nema/iec | NEMA |
| No Load Amps | 3.9A |
| No. Of Motor Leads | 6 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 68% |
| Overall Length | 12 15/16", 12.96" |
| Phase | 1 |
| Power Factor | 68 |
| Product Datasheet | baldor-motor-rl1307a.pdf |
| Proprietary | No |
| Pull-up Torque | 4.5 lbs.-ft. |
| Pulley Face Code | Resilient Mount |
| Revision | Z |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Length | 1 7/8" |
| Shaft Rotation | Reversible, Connected Standard |
| Shaft Type | Standard |
| Start Configuration | DOL |
| Starting Amps | 31A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 90°C |
| Temp. Rise @ Rated Load | 74°C |
| Temp. Rise @ S. F. Load | 90°C |
| Thermal Protection | Automatic |
| Type | 3428L |
| Voltage | 115/230V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85013100 |
| Country of Origin | US |
Product Details:
- SUPERSEDES BALDOR - RL445A
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 9.5 LB-FT
- Nameplate No.: NP1257L
- Pull-Up Torque: 4.5 LB-FT
- Starting Current: 31 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Phase | Frame | Motor Application | Rpm Range | Motor Enclosure Design | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

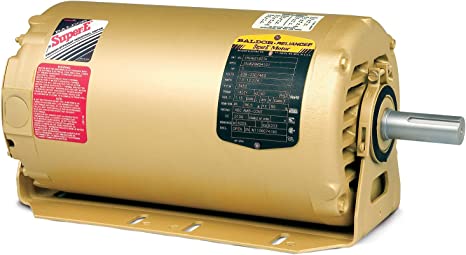

ERL1313A | 115-230V | 1 1/2 hp | 1 | 56H | - | 3400-3600 RPM | - | Class B | €1,091.54 | |
|
ERL1319A | 115/230V | 1 1/2 hp | 1 | 56H | - | - | - | Class F | €1,187.71 | |
|
ERL1319A277 | 277V | 1 1/2 hp | 1 | 56H | - | 1700-1800 RPM | - | Class F | €1,226.18 | |
 |
ERM3158TA | 208-230/460V | 3 hp | 3 | 145TY | - | - | - | Class F | €1,241.98 | |
|
RL1301A277 | 277V | 1/3 hp | 1 | 56 | - | - | - | Class B | €705.90 | |
|
RL1304A | 115/230V | 1/2 hp | 1 | 56 | General Application | 1701-1800 RPM | Open Dripproof | Class B | €687.62 | |
|
RL1304A277 | 277V | 1/2 hp | 1 | 56 | - | - | - | Class B | €734.75 |
