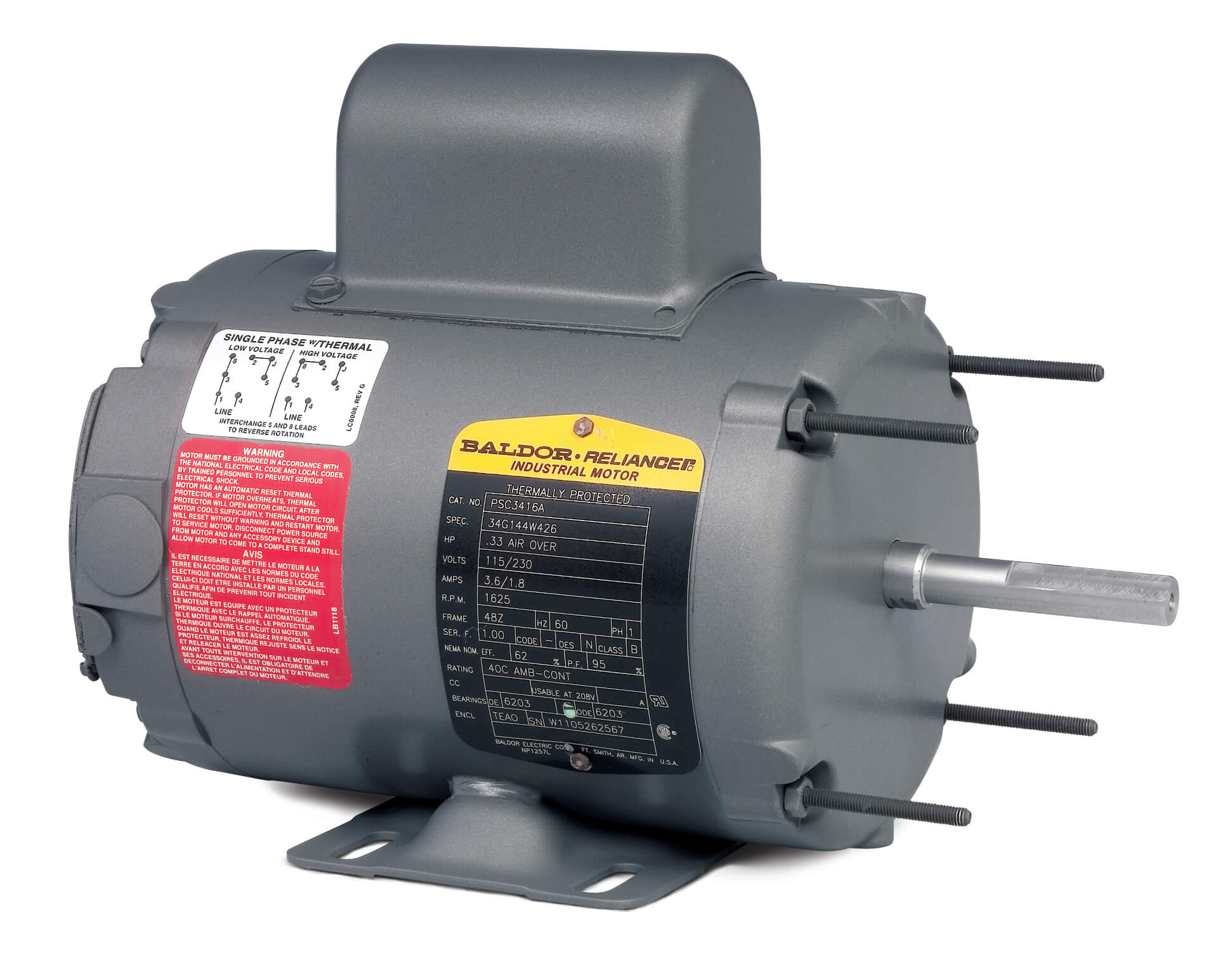

BALDOR MOTOR PSC3413A Direct Drive Fan Motor, 115/230V, 1800 RPM, 60 Hz, 0.25 hp, TEAO, 48Z Frame
Get it by Friday, Dec 19
€633.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 2.6/1.3A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 1.2 lbs.-ft. |
| Class | Stock |
| Code | C |
| Conduit Box Position | F1 |
| Design Code | N |
| Duty | Continuous |
| Enclosure Design | TEAO |
| Enclosure Type | Totally Enclosed Air Over |
| Frame | 48Z |
| Frame Material | Steel |
| Frame Size | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 2.6/1.3A |
| Full Load Torque | 0.8 ft.-lbs. |
| Full Load Torque | 0.8 lbs.-ft. |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 7#18 |
| Line-line Res. @ 25° C | 18.9 ohms A Ph/11.3 ohms B Ph |
| Locked-rotor Torque | 0.4 lbs.-ft. |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | 3411C |
| Mounting Type | Extended Studs, Foot Mounted |
| Multiplier | K |
| Nema/iec | NEMA |
| No Load Amps | 0.5A |
| No. Of Motor Leads | 7 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 65.5% |
| Overall Length | 11.34" |
| Phase | 1 |
| Power Factor | 93 |
| Product Datasheet | baldor-motor-psc3413a.pdf |
| Proprietary | No |
| Pull-up Torque | 0.4 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | K |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 3.5A |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Automatic |
| Type | 3411C |
| Voltage | 115/230V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 35.09 |
| Ship width (cm) | 27.47 |
| HS code | 85013100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 0.4 LB-FT
- Nameplate No.: NP1257L
- Pull-Up Torque: 0.4 LB-FT
- Starting Current: 3.5 Amps
