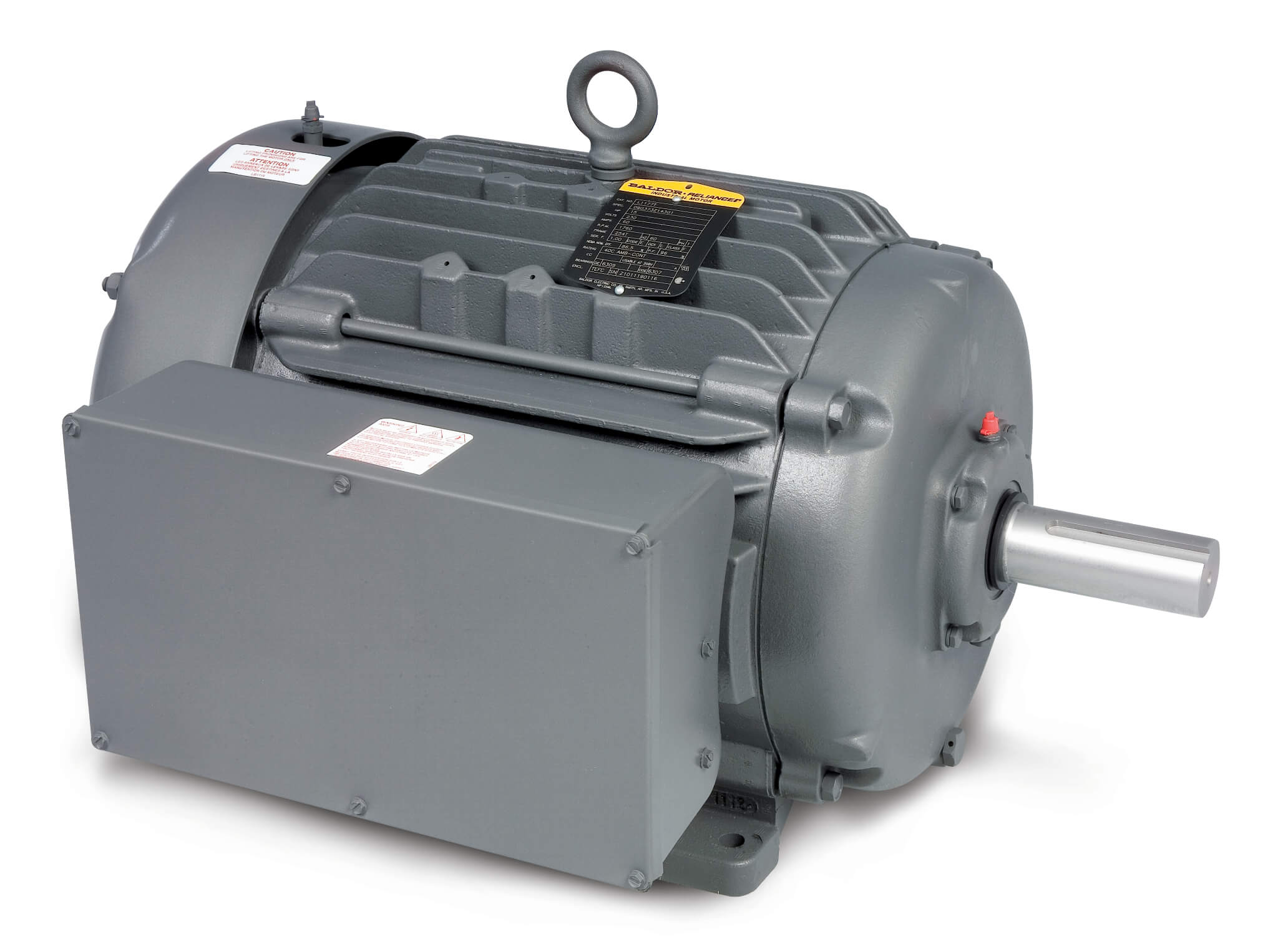

BALDOR MOTOR L1177T Single Phase Motor, 230V, 1800 RPM, 60 Hz, 15 hp, 1 Phase, TEFC, 254T Frame
Get it by Tuesday, Aug 25
€9,989.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 60A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break Down Torque | 114 lbs.-ft. |
| Code | E |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 254T |
| Frame Material | Iron |
| Frame Size | 254T |
| Frequency | 60 Hz |
| Full Load Amps | 60A |
| Full Load Torque | 45.3 ft.-lbs. |
| Full Load Torque | 45.3 lbs.-ft. |
| Hp | 15 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#6 A PH 12' long,2#12 B PHY |
| Lead | 2#6 A Ph 12' Long, 2#12 B Phy |
| Leads | 2#6A Ph 12 Ft. Long, 2#12 B Ph Y |
| Line-line Res. @ 25°c | 0.11 ohms A Ph/0.415 ohms B Ph |
| Locked Rotor Torque | 76.7 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Capacitor Start, Run |
| Mounting Type | Foot Mounted |
| Multiplier | L1 |
| Nameplate Speed | 1760 RPM |
| Nema/iec | NEMA |
| No Load Amps | 7.93A |
| No. Of Motor Leads | 2 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Overall Length | 23.36" |
| Phase | 1 |
| Power Factor | 96 |
| Product Datasheet | baldor-motor-l1177t.pdf |
| Proprietary | No |
| Pull Up Torque | 55 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | T |
| Service Factor | 1 |
| Shaft Dia. | 1 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1700-1800 RPM |
| Start Configuration | DOL |
| Starting Amps | 304A |
| Synchronous Speed | 1800 RPM |
| Temp. Rise @ Rated Load | 80°C |
| Type | 0956LC |
| Voltage | 230V |
| Wire Size | 6 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 138.6 |
| Ship height (cm) | 54.61 |
| Ship length (cm) | 80.01 |
| Ship width (cm) | 60.96 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 76.7 LB-FT
- Nameplate No.: NP1256L
- Pull-Up Torque: 55 LB-FT
- Starting Current: 304 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Full Load Amps | Service Factor | Motor Type | Mounting Type | Frame | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL3403 | 115/230V | 1/4 hp | 2.5/1.25A | 1.35 | Capacitor Start | Foot Mounted | 48 | Class F | €950.26 | |
| EL3405 | 115/208-230V | 1/3 hp | 3.2/1.7-1.6A | 1.35 | Capacitor Start, Run | Rigid Base | 48 | Class F | €559.90 | |
| EL3501 | 115/230V | 1/3 hp | 3.2/1.6A | 1.35 | Capacitor Start | Foot Mounted | 56 | Class F | €1,066.70 | |
| EL3503 | 115/230V | 1/2 hp | 4.9/2.5A | 1.25 | Capacitor Start | Foot Mounted | 56 | Class B | €1,024.00 | |
| EL3504 | 115/230V | 1/2 hp | 4.6/2.3A | 1.25 | Capacitor Start | Foot Mounted | 56 | Class F | €1,230.52 | |
| EL3506 | 115/230V | 3/4 hp | 7.8/3.9A | 1.25 | Capacitor Start | Foot Mounted | 56 | Class B | €1,162.94 | |
| EL3507 | 115/208-230V | 3/4 hp | 6.3/3.4-3.15A | 1.25 | Capacitor Start | Foot Mounted | 56 | Class F | €1,483.24 |
