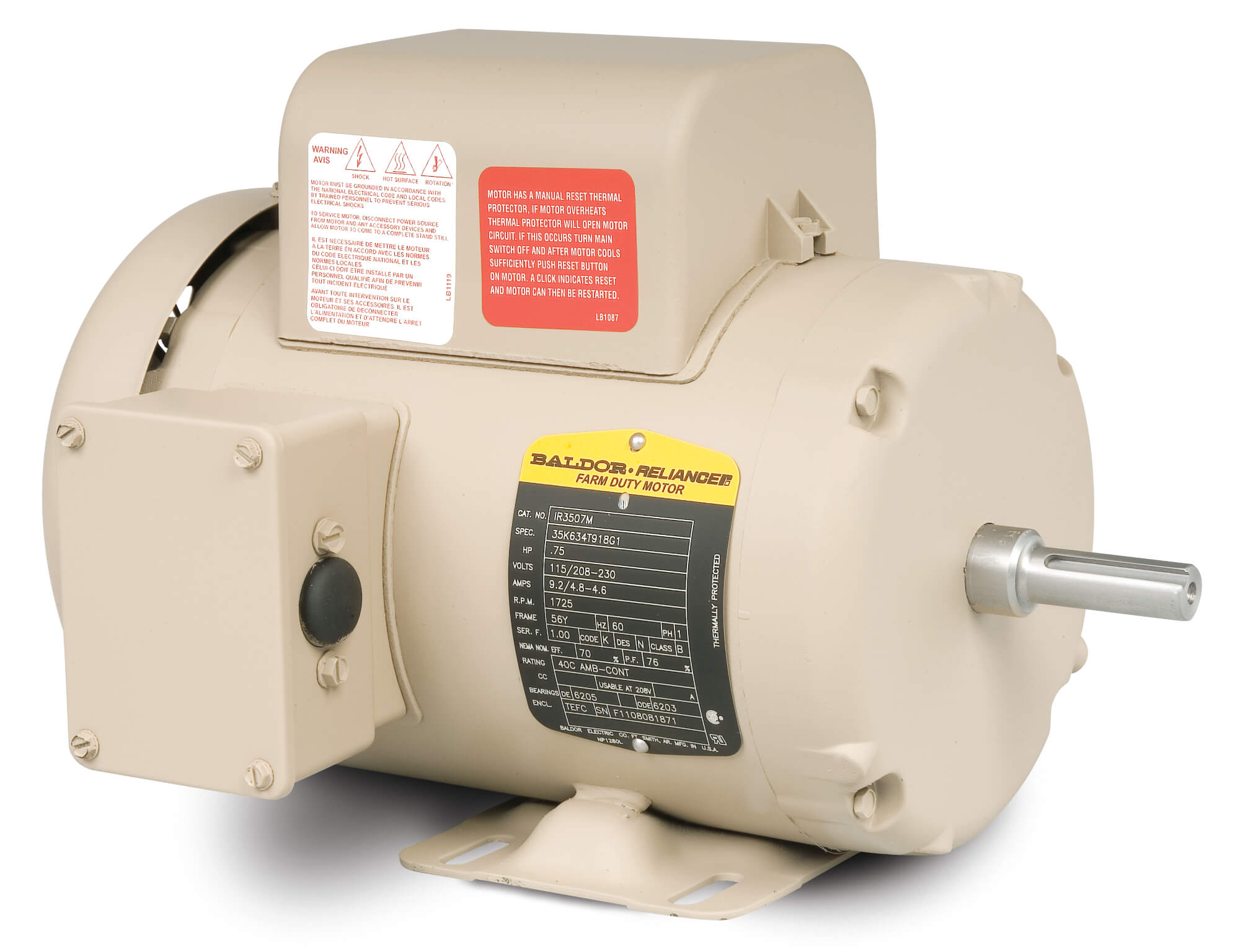

BALDOR MOTOR IR3507M Instant Reversing Motor, 115/208-230V, 1800 RPM, 0.75 hp, 1 Phase, TEFC, 56 Frame
Get it by Tuesday, Dec 23
€1,110.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 9.2/4.8-4.6A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 5.3 lbs.-ft. |
| Class | Stock |
| Code | K |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | N |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Torque | 2.3 lbs.-ft. |
| Full Load Torque | 2.3 ft.-lbs. |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 6#18,1#16 #4TH |
| Lead | 6#18, 1#16 #4Th |
| Line-line Res. @ 25° C | 0.905 ohms A Ph/1.82 ohms B Ph |
| Locked-rotor Torque | 7.7 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Foot Mounted |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Foot Mounted |
| Multiplier | K |
| Nema/iec | NEMA |
| No Load Amps | 5.4A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 70% |
| Overall Length | 13.23" |
| Phase | 1 |
| Power Factor | 76 |
| Product Datasheet | baldor-motor-ir3507m.pdf |
| Proprietary | No |
| Pull-up Torque | 5 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | E |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 54A |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Manual |
| Type | 3524L |
| Voltage | 115/208-230V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 7.7 LB-FT
- Nameplate No.: NP1280L
- Pull-Up Torque: 5 LB-FT
- Starting Current: 54 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Service Factor | Power Factor | Type | Break-down Torque | Amps | Lead | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
IR3510M | 230V | 1 hp | 1.15 | 70 | 3528L | 8.1 lbs.-ft. | 6.2A | 8#18 | €1,201.76 |
