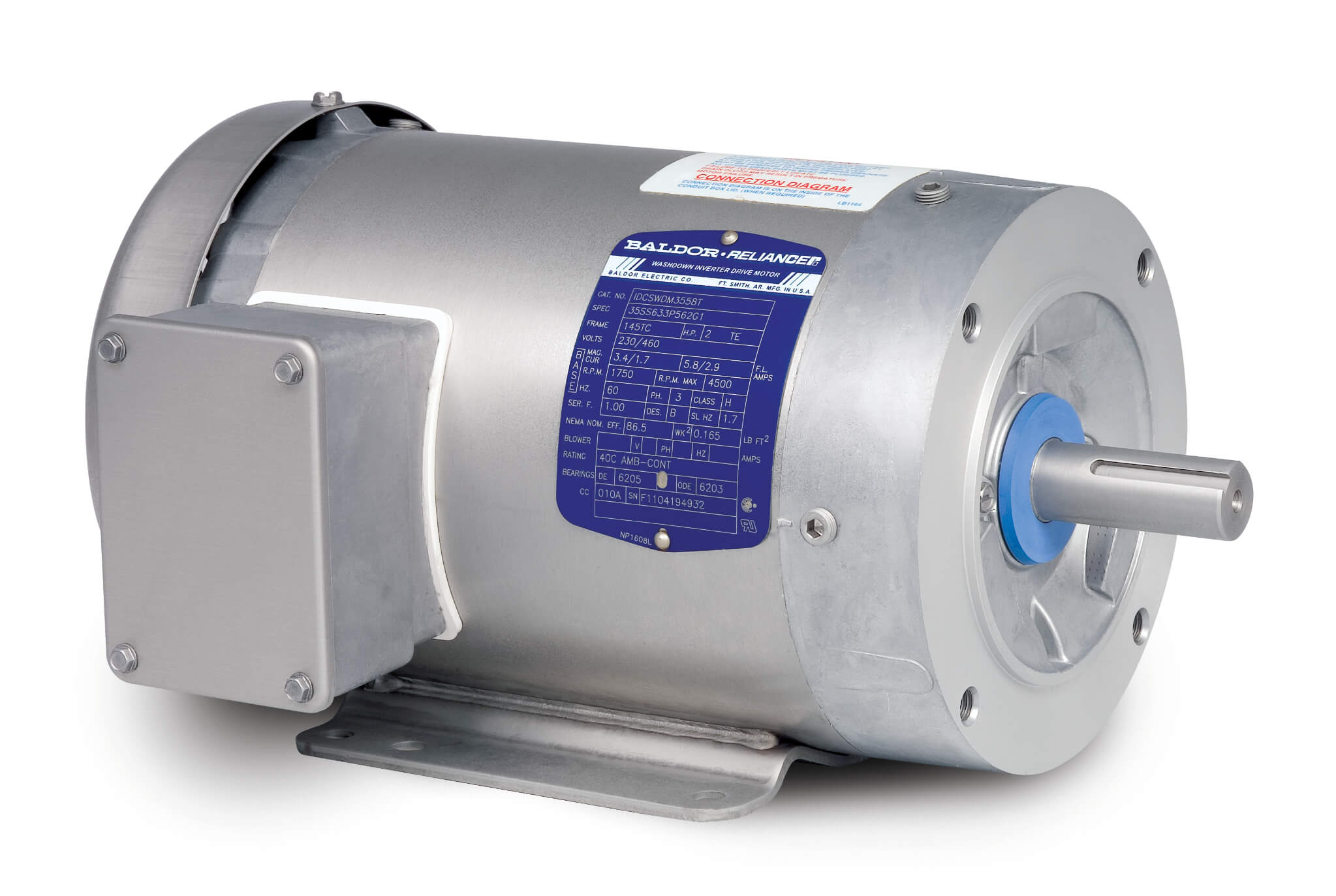

BALDOR MOTOR IDCSWDM3554 Invester Duty Washdown Motor, 1800 RPM, 1.5 hp, 3 Phase, TEFC, 56C Frame
Get it by Tuesday, Dec 23
€3,160.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Base | Rigid Base |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 4.2/2.1A |
| Hp | 1 1/2 hp |
| Insulation Class | Class H |
| Inverter Code | Inverter Ready |
| Lead | 9#18 |
| Magnetizing Amps | 2.4/1.2A |
| Max. Rpm | 4000 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Mounting Type | C Face, Foot Mounted |
| Multiplier | E2 |
| Nameplate Rpm | 1760 RPM |
| Nema/iec | NEMA |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 88.5% |
| Output | 1 1/2 hp |
| Overall Length | 13.22" |
| Phase | 3 |
| Power Factor | 72 |
| Product Datasheet | baldor-motor-idcswdm3554.pdf |
| Proprietary | No |
| Pulley Face Code | C Face |
| Revision | J |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1800 RPM |
| Type | 3533M |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Nameplate No.: NP1608L
- SL Hz: 1.33
Documentation:
Product Variants
| Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Type | Shaft Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

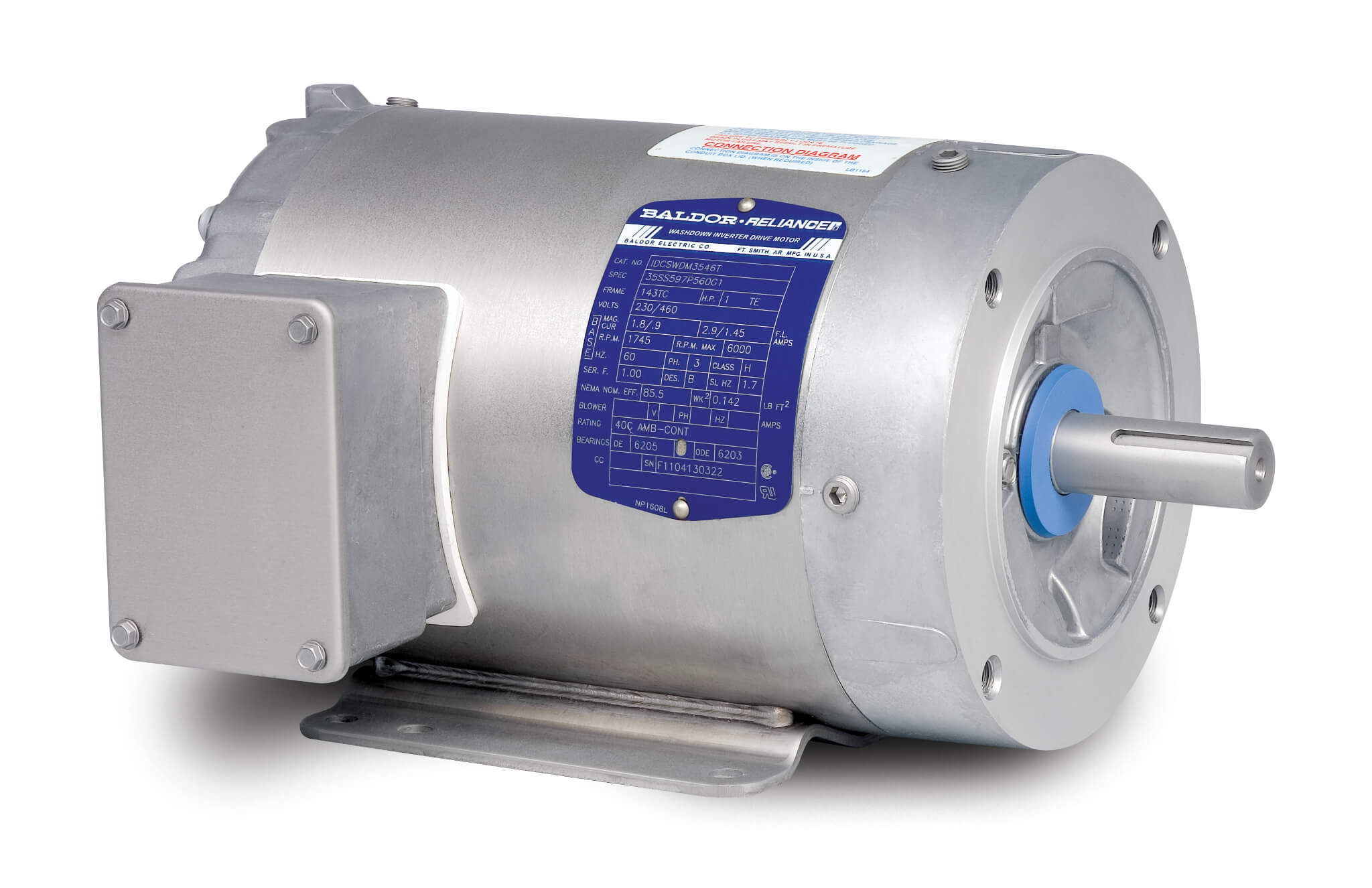

| IDCSWDM3538 | 208-230/460V | 1/2 hp | 1750 RPM | 56C | 1.7-1.6/0.8A | 3515M | 5/8" | 11.06" | €2,514.01 | |
| IDCSWDM3542 | 208-230/460V | 3/4 hp | 1740/1745 RPM | 56C | 2.36-2.16/1.08A | 3519M | 5/8" | 11.06" | €2,846.72 | |
| IDCSWDM3546 | 208-230/460V | 1 hp | 1745/1770 RPM | 56C | 3-2.9/1.45A | 3524M | 5/8" | 12.06" | €2,954.99 | |
| IDCSWDM3546T | 230/460V | 1 hp | 1745/1770 RPM | 143TC | 2.9/1.45A | 3524M | 7/8" | 12.12" | €2,954.99 | |
| IDCSWDM3554T | 230/460V | 1 1/2 hp | 1760 RPM | 145TC | 4.2/2.1A | 3533M | 7/8" | 13.29" | €3,160.73 | |
| IDCSWDM3558 | 230/460V | 2 hp | 1750 RPM | 56C | 5.8/2.9A | 3528M | 5/8" | 13.24" | €3,376.30 | |
| IDCSWDM3558T | 230/460V | 2 hp | 1750 RPM | 145TC | 2.9A | 3528M | 7/8" | 13.29" | €3,376.30 |
