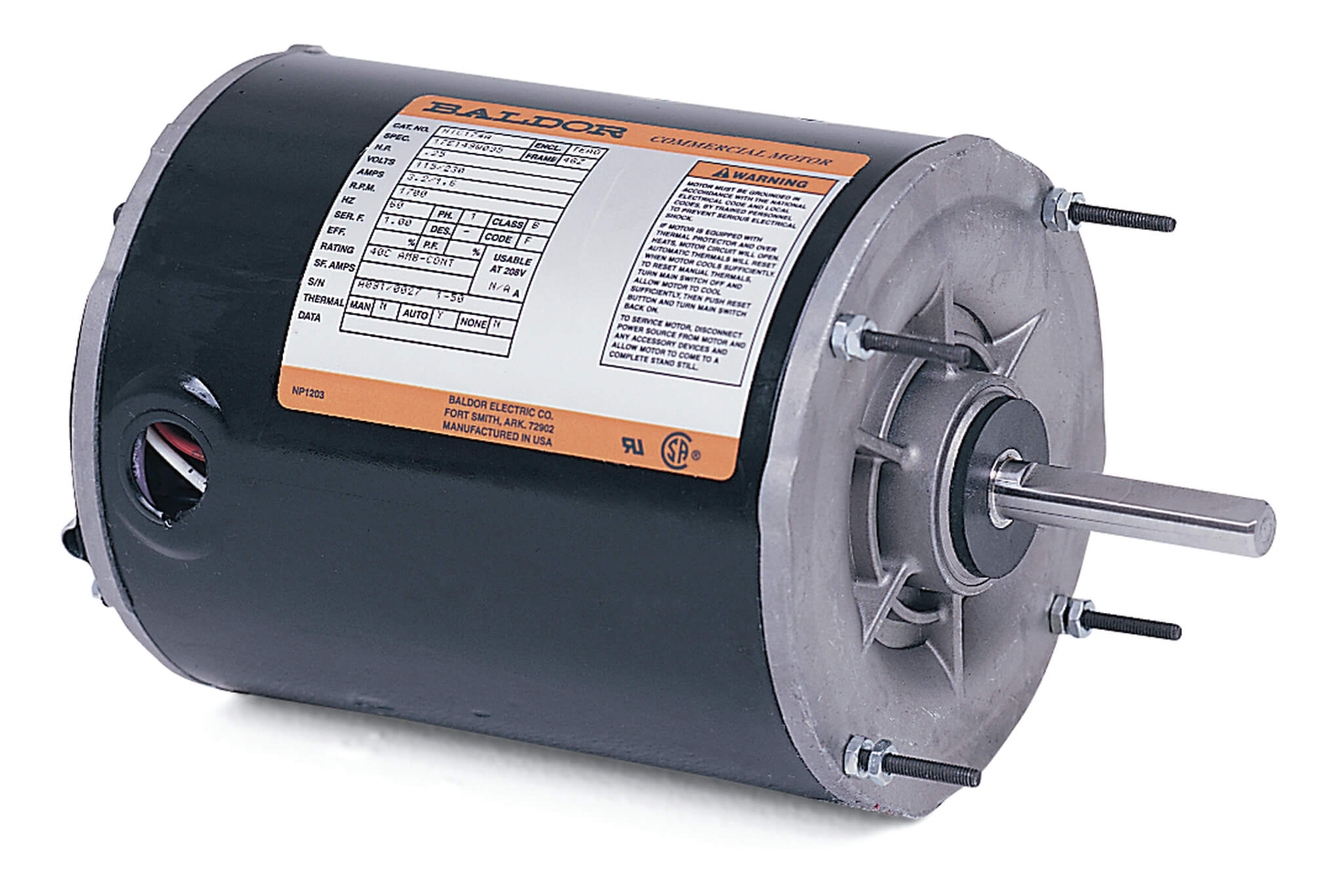

BALDOR MOTOR HIC264A Direct Drive Fan Motor, 115/230V, 1800 RPM, 0.33 hp, 1 Phase, TEAO, 48Z Frame
Get it by Friday, Dec 19
€590.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 3.8/1.9A |
| Auto | Yes |
| Base Type | Not Applicable |
| Break-down Torque | 2.06 lbs.-ft. |
| Class | Stock |
| Code | E |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Enclosure Design | TEAO |
| Frame | 48Z |
| Frame Material | Steel |
| Frame Size | 48Z |
| Frequency | 60 Hz |
| Full Load Torque | 1.07 lbs.-ft. |
| Full Load Torque | 1.07 LB-FT |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 9#16 |
| Line-line Res. @ 25° C | 10.855 ohms A Ph/9.9118 ohms B Ph |
| Locked-rotor Torque | 0.343 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Extended Studs |
| Mounting Type | Extended Studs |
| Multiplier | C1 |
| Nameplate Rpm | 1625 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.98A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Length | 10.09" |
| Phase | 1 |
| Power Factor | 90 |
| Product Datasheet | baldor-motor-hic264a.pdf |
| Proprietary | No |
| Pull-up Torque | 0.34 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | J |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible, Connected Standard |
| Start Configuration | DOL |
| Starting Amps | 6.82A |
| Synchronous Rpm | 1800 RPM |
| Thermal Protection | Automatic |
| Type | 1714C |
| Voltage | 115/230V |
| Wire Size | 16 AWG |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 35.09 |
| Ship width (cm) | 27.47 |
| HS code | 85013100 |
| Country of Origin | US |
Product Details:
- Locked-Rotor Torque: 0.343 LB-FT
- Nameplate No.: NP1203A01
- Pull-Up Torque: 0.34 LB-FT
- Starting Current: 6.82 Amps
Documentation:
Product Variants
| Product | Model | Power Factor | Break-down Torque | Amps | Full Load Torque | No Load Amps | Code | Voltage | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
HIC274A | 75 | 2.69 lbs.-ft. | 4/2A | 1 lbs.-ft. | 1.48A | G | 115/230V | 1/3 hp | €590.43 |
