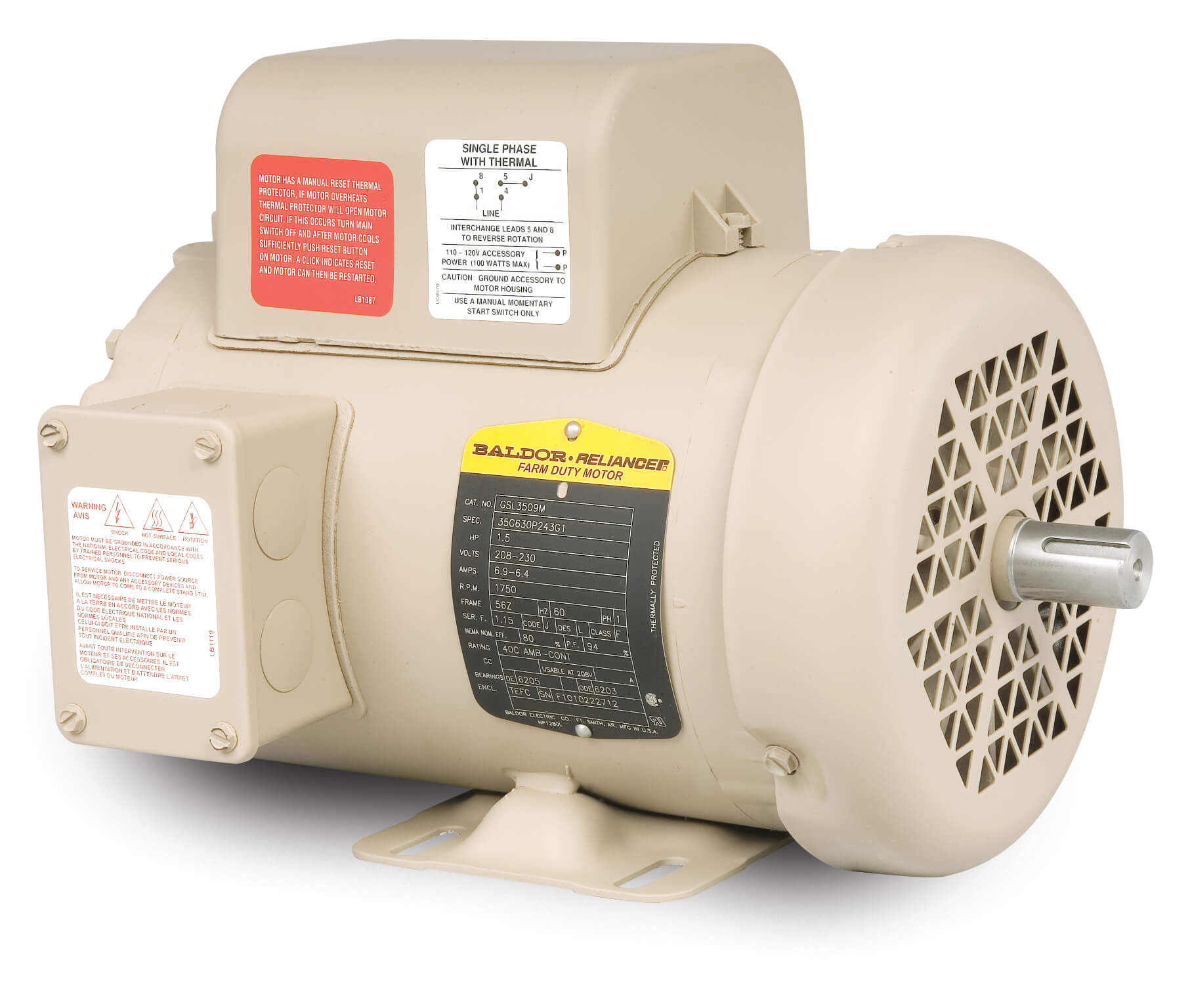

BALDOR MOTOR GSL3509M Grain Stirring Motor, 208-230V, 1800 RPM, 1.5 hp, 1 Phase, TEFC, 56Z Frame
Get it by Friday, Aug 21
€1,272.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 6.9-6.4A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break Down Torque | 12.7 lbs.-ft. |
| Class | Stock |
| Code | J |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 56Z |
| Frame Material | Steel |
| Frame Size | 56Z |
| Frequency | 60 Hz |
| Full Load Torque | 4.52 ft.-lbs. |
| Full Load Torque | 4.52 lbs.-ft. |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#16 A PH,3#18 B&J,2#18 P |
| Lead | 2#16 A Ph, 3#18 B&J, 2#18 P |
| Line-line Res. @ 25°c | 2.06 ohms A Ph/3.74 ohms B Ph |
| Locked Rotor Torque | 12.8 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Foot Mounted |
| Mounting Type | Foot Mounted |
| Multiplier | K |
| Nameplate Speed | 1750 RPM |
| Nema/iec | NEMA |
| No Load Amps | 2.93A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 12.29" |
| Phase | 1 |
| Power Factor | 94 |
| Product Datasheet | baldor-motor-gsl3509m.pdf |
| Proprietary | No |
| Pull Up Torque | 10.9 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | G |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1700-1800 RPM |
| Start Configuration | DOL |
| Starting Amps | 49.2A |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 87°C |
| Temp. Rise @ Rated Load | 73°C |
| Temp. Rise @ S. F. Load | 87°C |
| Thermal Protection | Thermostat |
| Type | 3523LC |
| Voltage | 208-230V |
| Wire Size | 16 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 12.8 LB-FT
- Nameplate No.: NP1280L
- Pull-Up Torque: 10.9 LB-FT
- Starting Current: 49.2 Amps
Documentation:
