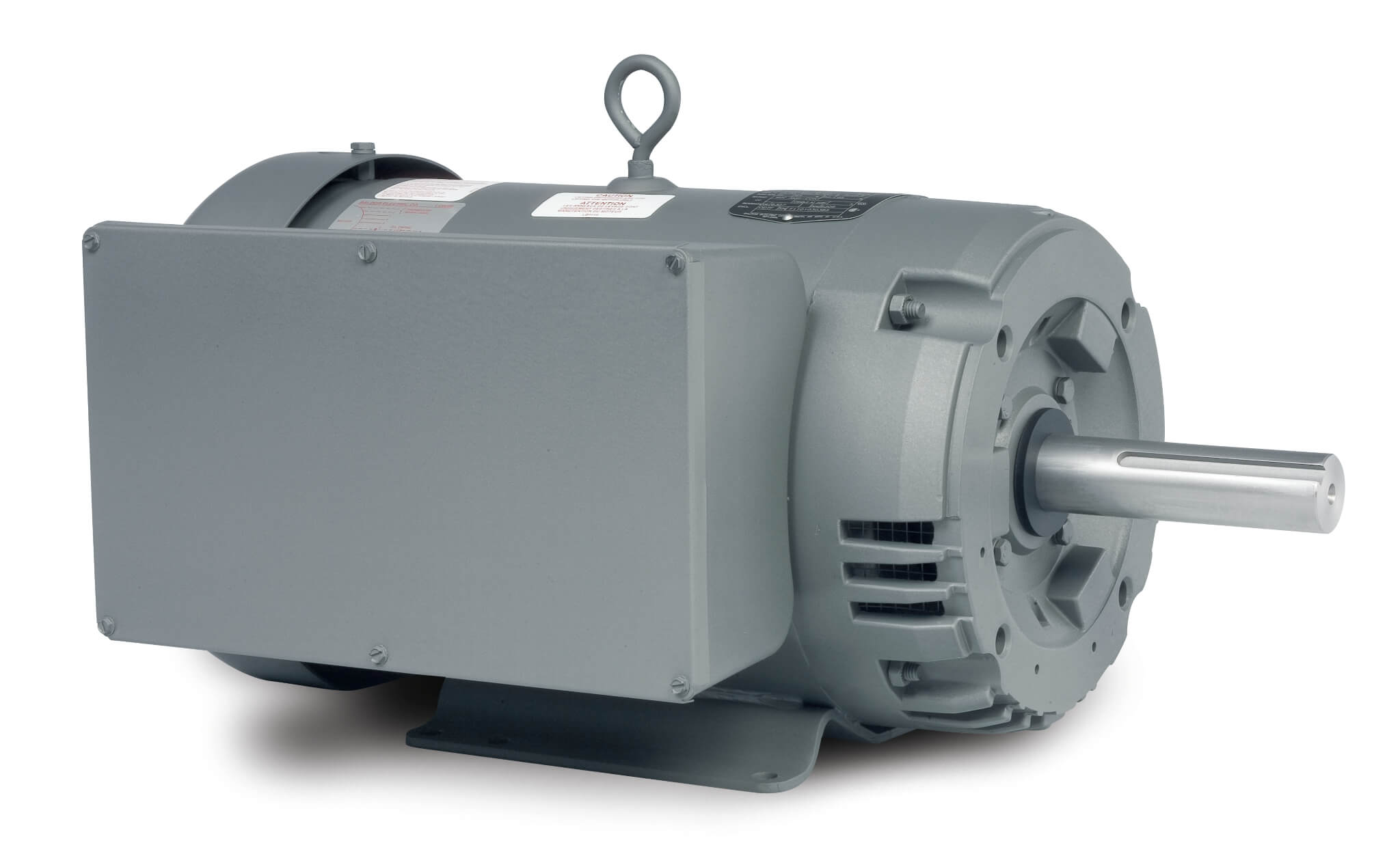

BALDOR MOTOR GDL1607T Grain Dryer Motor, 230V, 1800 RPM, 60 Hz, 7.5 hp, 1 Phase, ODP, 215TZ Frame
Get it by Monday, Aug 24
€3,500.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 32A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break Down Torque | 65 lbs.-ft. |
| Code | J |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | ODTF |
| Frame | 215TZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Torque | 22.3 lbs.-ft. |
| Full Load Torque | 22.3 ft.-lbs. |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#8 A PH,2#14 B PH |
| Lead | 2#8 A Ph, 2#14 B Ph |
| Line-line Res. @ 25°c | 0.187 ohms A Ph/1.18 ohms B Ph |
| Locked Rotor Torque | 75 lbs.-ft. |
| Motor Enclosure Design | Open Dripproof Tandem Fan |
| Motor Mounting Type | Rigid Base |
| Mounting Type | Rigid Base |
| Multiplier | L1 |
| Nema/iec | NEMA |
| No Load Amps | 10A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Overall Length | 22.57" |
| Phase | 1 |
| Power Factor | 90 |
| Product Datasheet | baldor-motor-gdl1607t.pdf |
| Proprietary | No |
| Pull Up Torque | 40 lbs.-ft. |
| Pulley Face Code | C Face |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Speed | 1700-1800 RPM |
| Start Configuration | DOL |
| Starting Amps | 250A |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 77°C |
| Temp. Rise @ Rated Load | 69°C |
| Temp. Rise @ S. F. Load | 77°C |
| Thermal Protection | Thermostat |
| Type | 3744LC |
| Voltage | 230V |
| Wire Size | 8 AWG |
| Xp Class And Group | None |
Shipping Info:
| Ship weight (kg) | 63.9 |
| Ship height (cm) | 44.13 |
| Ship length (cm) | 66.99 |
| Ship width (cm) | 41.91 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 75 LB-FT
- Nameplate No.: NP1256L
- Pull-Up Torque: 40 LB-FT
- Starting Current: 250 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Frame | Service Factor | Overall Length | Power Factor | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

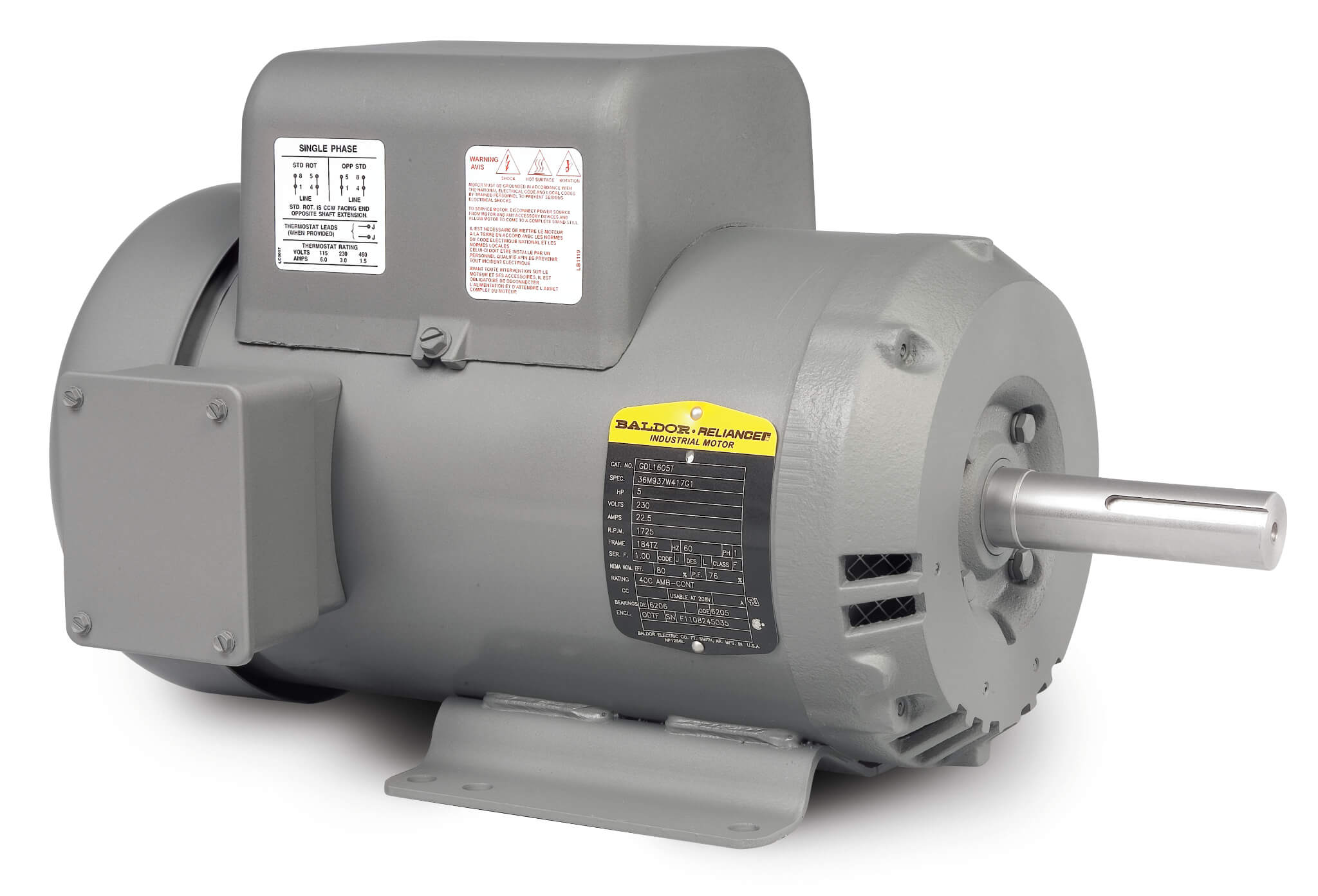

GDL1605T | 230V | 5 hp | Open Dripproof Tandem Fan | 184TZ | 1 | 16.87" | 76 | 3646LC | €2,661.39 | |
|
GDL1610T | 230V | 10 hp | Open Dripproof Tandem Fan | 215TZ | 1 | 22.85" | 98 | 3750LC | €4,049.34 | |
 |

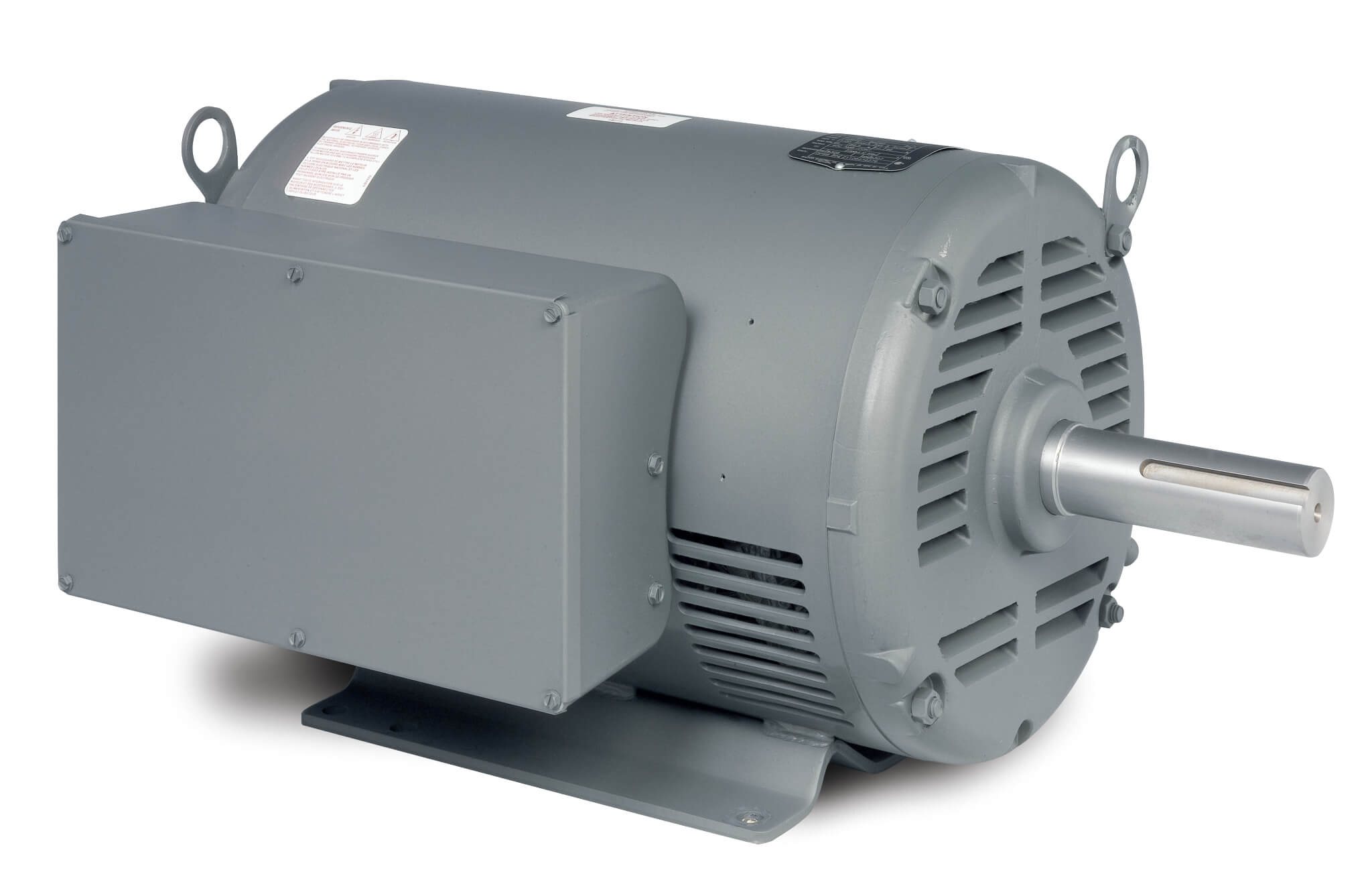

GDL1615T | 208-230V | 16 hp | Open Slotted Band | 256TZ | 1 | 24.19" | 96 | 3956LC | €6,025.72 |
