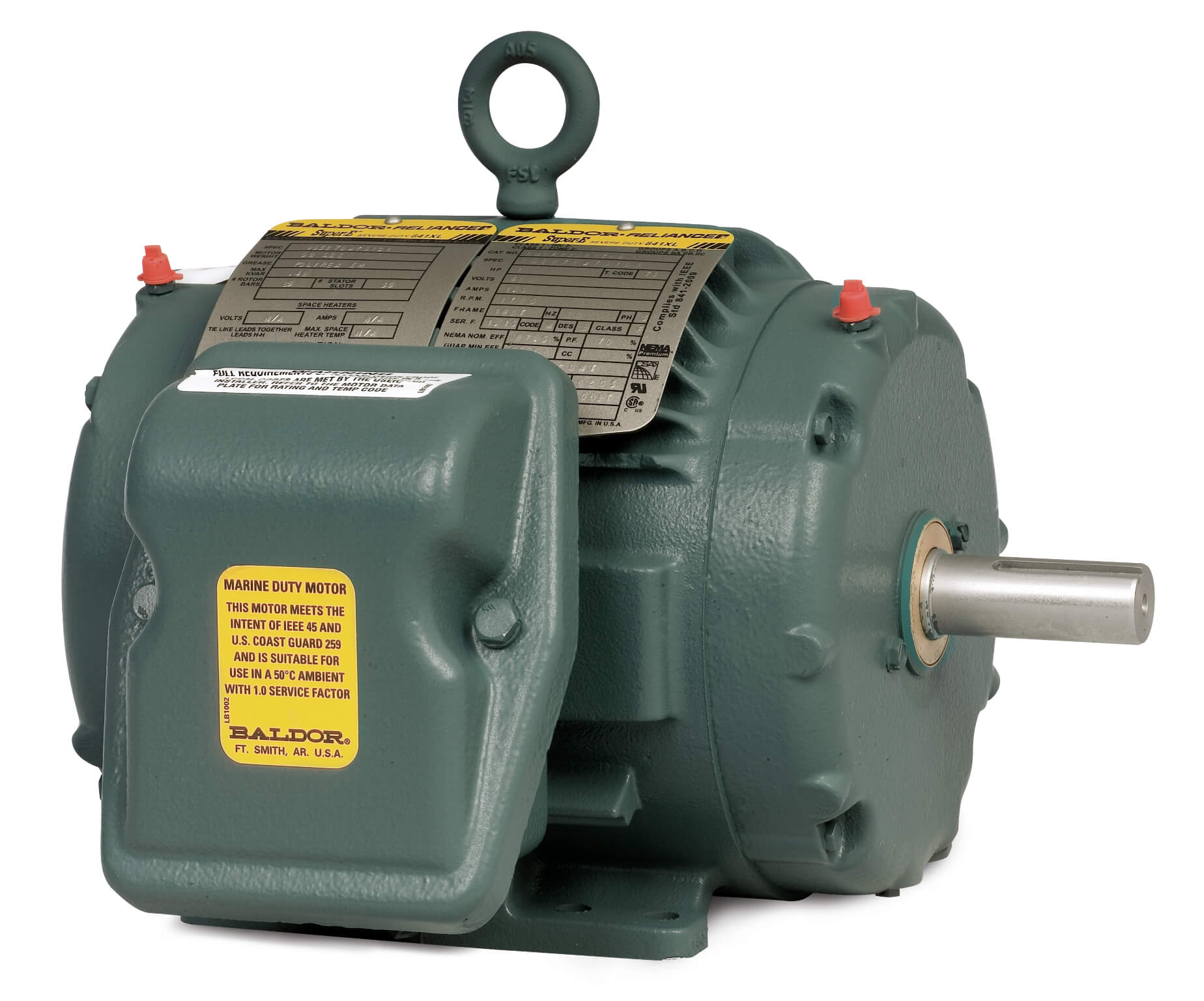

BALDOR MOTOR ENCP83580T-4 Servere Duty Motor, 460V, 3600 RPM, 60 Hz, 1 HP, TENV
Get it by Wednesday, Feb 18
€1,549.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 6.1 lbs.-ft. |
| Class | Stock |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TENV |
| Frame | 143T |
| Frame Material | Iron |
| Frame Size | 143T |
| Frequency | 60 Hz |
| Full Load Amps | 1.3A |
| Full Load Torque | 1.5 lbs.-ft. |
| Full Load Torque | 1.5 ft.-lbs. |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Duty |
| Kvar | 0.05 k var |
| Lead | 3#18 |
| Line-line Res. @ 25° C | 15.2 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 5.1 lbs.-ft. |
| Max. Rpm | 5400 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Multiplier | SD |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 0.545A |
| No. Of Motor Leads | 3 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Overall Length | 11.37" |
| Phase | 3 |
| Power Factor | 88 |
| Product Datasheet | baldor-motor-encp83580t-4.pdf |
| Proprietary | No |
| Pull-up Torque | 4.3 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | N |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 11.2A |
| Synchronous Rpm | 3600 RPM |
| Temp. Code | T3 |
| Type | 0520M |
| Voltage | 460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 5.1 LB-FT
- Nameplate No.: NP2162E
- Pull-Up Torque: 4.3 LB-FT
- Starting Current: 11.2 Amps
Documentation:
Product Variants
| Product | Model | Nameplate Rpm | Full Load Amps | Overall Length | No. Of Poles | Break-down Torque | No Load Amps | Power Factor | Full Load Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ENCP83581T-4 | 1765 RPM | 1.5A | 11.37" | 4 | 15.8 lbs.-ft. | 1.02A | 72 | 2.99 lbs.-ft. | €1,695.14 | |
|
ENCP3581T-4 | 1765 RPM | 1.5A | 11.36" | 4 | 15.8 lbs.-ft. | 1.02A | 72 | 2.99 lbs.-ft. | €1,695.14 |
