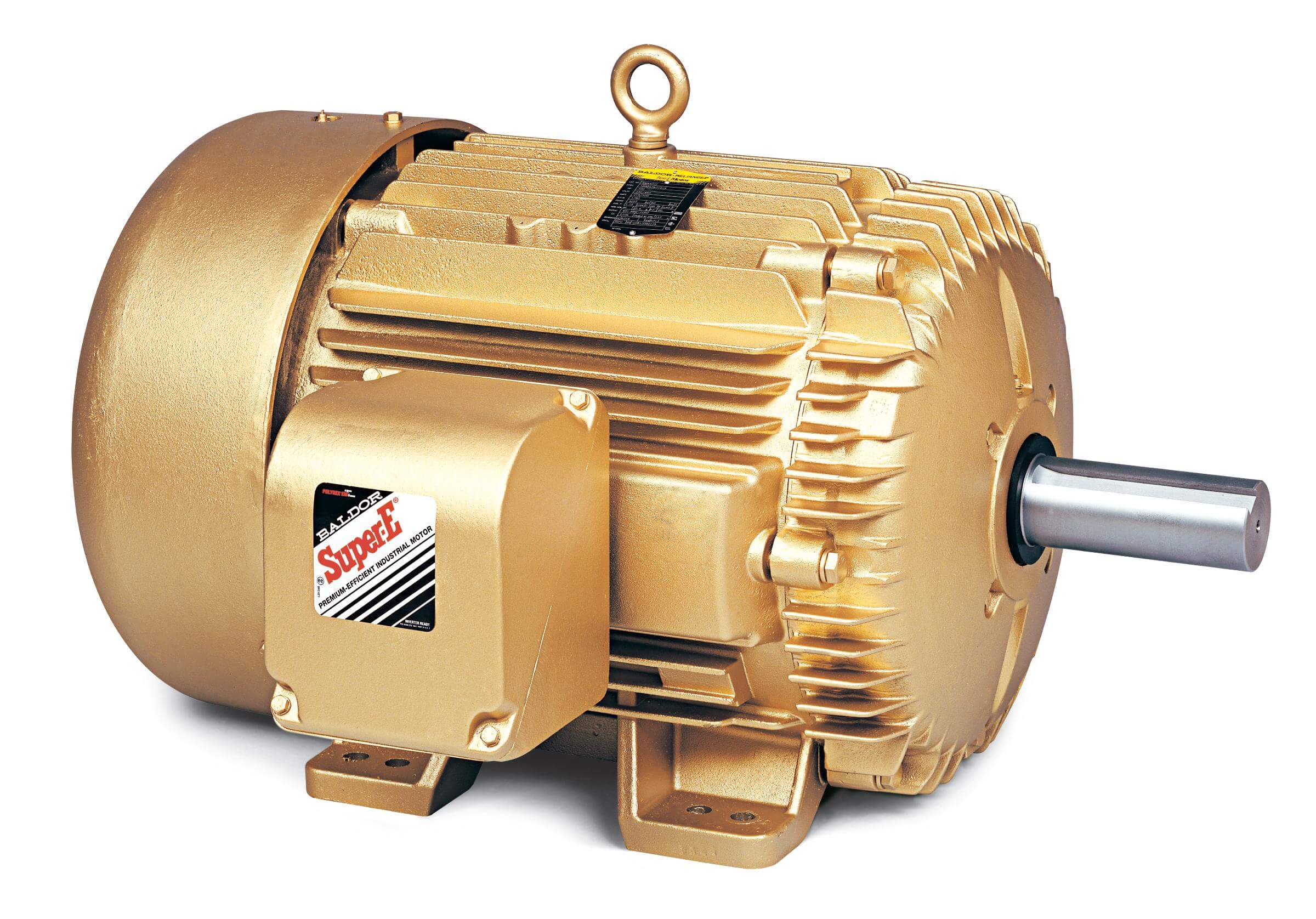

BALDOR MOTOR EM4110T-58 Three Phase Enclosed Motor, 400V, 1500 RPM, 50 Hz, 40 hp, TEFC, 324T Frame
52A
Get it by Tuesday, Dec 23
€9,639.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient (c) | 40 deg C |
| Ambient Temp. | 40°C |
| Amps @ Voltage | 52A @ 400V |
| Auxillary Box | No Auxillary Box |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Bearing Grease Type | Polyrex EM (-20°F +300°F) |
| Break-down Torque | 399 lbs.-ft. |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | B |
| Drip Cover | No Drip Cover |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 93.6% |
| Electrically Isolated Bearing | Not Electrically Isolated |
| Enclosure Design | TEFC |
| Feedback Device | NO FEEDBACK |
| Frame | 324T |
| Frame Material | Iron |
| Frame Size | 324T |
| Frequency | 50 Hz |
| Front Face Code | Standard |
| Full Load Amps | 52A |
| Full Load Torque | 0 ft.-lbs. |
| Full Load Torque | 0 lbs.-ft. |
| Grease Type | Polyrex EM |
| Heater Indicator | No Heater |
| High Voltage Full Load Amps | 52A |
| Hp | 40 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Kva Code | F |
| Lifting Lugs | Standard Lifting Lugs |
| Locked Bearing Indicator | Locked Bearing |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Lead Exit | Ko Box |
| Motor Lead Quantity/wire Size | 6 @ 8 AWG |
| Motor Lead Termination | Flying Leads |
| Motor Mounting Type | Foot Mounted |
| Motor Type | 1272M |
| Mounting Type | Foot Mounted |
| Nameplate Rpm | 1470 RPM |
| Nema/iec | NEMA |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Output @ Frequency | 40 hp @ 50 Hz |
| Overall Length | 30.28" |
| Phase | 3 |
| Power Factor | 86 |
| Product Datasheet | baldor-motor-em4110t-58.pdf |
| Product Family | General Purpose |
| Pulley End Bearing Type | Ball |
| Pulley Face Code | Standard |
| Pulley Shaft Indicator | Standard |
| Rpm | 1470 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 2 1/8" |
| Shaft Extension Location | Pulley End |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Shaft Slinger Indicator | Shaft Slinger |
| Speed Type | Single Speed |
| Start Type | Delta Run, Wye Start |
| Starting Method | Wye Start-Delta Run |
| Synchronous Rpm | 1500 RPM |
| Synchronous Rpm @ Frequency | 1500 RPM @ 50 Hz |
| Synchronous Speed | 1500 RPM |
| Vibration Sensor Indicator | No Vibration Sensor |
| Voltage | 400V |
| Voltage @ Frequency | 400V @ 50 Hz |
| Xp Division | Not Applicable |
Shipping Info:
| Ship weight (kg) | 292.5 |
| Ship height (cm) | 54.93 |
| Ship length (cm) | 85.73 |
| Ship width (cm) | 65.25 |
| HS code | 85015230 |
| Country of Origin | US |
Product Details:
- Drip Cover: No Drip Cover
- Efficiency @ 100% Load: 93.60%
- Electrically Isolated Bearing: Not Electrically Isolated
- Inverter Code: Not inverter
- KVA Code: F
- Lifting Lugs: Standard Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Exit: KO Box
- Motor Lead Quantity/Wire Size: 6 @ 8 AWG
- No-Load Current: 0 A
- Product Family: General Purpose
- Pull-Up Torque: 177 LB-FT
- Pulley End Bearing Type: Ball
- Pulley Face Code: Standard
- Pulley Shaft Indicator: Standard
- Shaft Diameter: 2.125 in
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: Shaft Slinger
- Starting Current: 295 A
- Temp. Rise @ Rated Load: 60 deg C
- Temp. Rise @ S.F. Load: 75 deg C
Documentation:
Product Variants
| Model | Voltage | Hp | Frequency | Service Factor | Full Load Amps | Motor Type | Nameplate Rpm | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EM2333T-5 | 575V | 15 hp | 60 Hz | 1.15 | 14.5A | Three Phase | - | 40°C | €3,191.08 | |
| EM2333T-58 | 400V | 15 hp | 50 Hz | 1.15 | 21A | 0948M | 1450 RPM | 40°C | €3,919.04 | |
| EM2334T-5 | 575V | 20 hp | 60 Hz | 1.15 | 19.2A | Three Phase | 1765 RPM | 40°C | €3,868.88 | |
| EM2334T-58 | 400V | 20 hp | 50 Hz | 1.15 | 28A | 0956M | 1465 RPM | 40°C | €4,751.12 | |
| EM2394T-5 | 575V | 15 hp | 60 Hz | 1.15 | 14.1A | Three Phase | 3525 RPM | 40°C | €3,928.51 | |
| EM3554-5 | 575V | 1 1/2 hp | 60 Hz | 1.15 | 1.8A | 3526M | 1760 RPM | 40°C | €1,135.01 | |
| EM3555-5 | 575V | 2 hp | 60 Hz | 1.15 | 2A | 3526M | 3490 RPM | 40°C | €1,239.14 |
