BALDOR MOTOR EM2565T-4 Three Phase Motor, 460V, 3600 RPM, 60 Hz, 250 hp, ODP, 445TS Frame | AJ6TRJ

BALDOR MOTOR EM2565T-4 Three Phase Motor, 460V, 3600 RPM, 60 Hz, 250 hp, ODP, 445TS Frame

Item: AJ6TRJModel: EM2565T-4
Check Availability
In Stock

Get it by Wednesday, Dec 17

€27,180.55 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient (c) 40 deg C
Ambient Temp. 40°C
Base Indicator Rigid
Base Type Rigid Base
Conduit Box Material Cast Iron
Conduit Box Position F1
Design Code B
Duty Continuous
Duty Cycle Continuous
Enclosure Design DP
Frame 445TS
Frame Material Iron
Frame Size 445TS
Frequency 60.00 Hz
Frequency 60 Hz
Full Load Amps 274A
Grease Type Polyrex EM
Hp 250 hp
Insulation Class Class F
Inverter Code Inverter Ready
Motor Enclosure Design Dripproof
Motor Type Three Phase
Mounting Type Foot Mounted
Nameplate Rpm 3565 RPM
Nema/iec NEMA
No. Of Poles 2
No. Of Speeds 1
Overall Length 35.88"
Phase 3
Power Factor 89
Product Datasheet baldor-motor-em2565t-4.pdf
Pulley Face Code Standard
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Dia. 2 3/8"
Shaft Ground Indicator No Shaft Grounding
Shaft Rotation Reversible
Speed Type Single Speed
Start Type Delta Run, Wye Start
Synchronous Rpm 3600 RPM
Synchronous Speed 3600 RPM
Voltage 460V

Shipping Info:

Ship weight (kg) 692.55
Ship height (cm)133.35
Ship length (cm)121.92
Ship width (cm)106.68
HS code85015381
Country of OriginUS

Product Details:

    • SUPERSEDES BALDOR - M2565T-4
    • Drip Cover: No Drip Cover
    • Efficiency @ 100% Load: 95.40%
    • Inverter Code: Inverter ready
    • KVA Code: F
    • Lifting Lugs: Standard Lifting Lugs
    • Motor Lead Quantity/Wire Size: 6 @ 1/0 AWG
    • Product Family: General Industrial
    • Pulley End Bearing Type: Ball
    • Pulley Face Code: Standard
    • Shaft Diameter: 2.375 in
    • Shaft Ground Indicator: No Shaft Grounding
    • Shaft Rotation: Reversible
    • Shaft Slinger Indicator: No Slinger

Documentation:

Datasheet

Product Variants

ProductModelMotor Enclosure DesignVoltageHpService FactorMounting TypeNameplate RpmMotor TypeInsulation ClassPrice
BALDOR MOTOR EM2504T Three Phase Motor, 230/460V, 900 RPM, 60 Hz, 5 hp, ODP, 254T Frame | AJ6TJU EM2504TOpen Slotted Band230/460V5 hp1.15Foot Mounted880 RPM3948MClass F€4,487.97
BALDOR MOTOR EM2506T Three Phase Motor, 230/460V, 1200 RPM, 60 Hz, 7.5 hp, ODP, 254T Frame | AJ6TJV EM2506TOpen Slotted Band230/460V7 1/2 hp1.15Foot Mounted1180 RPMThree PhaseClass F€2,711.14
BALDOR MOTOR EM2508T Three Phase Motor, 230/460V, 900 RPM, 60 Hz, 7.5 hp, ODP, 256T Frame | AJ6TJY EM2508TOpen Slotted Band230/460V7 1/2 hp1.15Foot Mounted880 RPM3962MClass F€5,616.34
BALDOR MOTOR EM2511T Three Phase Motor, 230/460V, 1200 RPM, 60 Hz, 10 hp, ODP, 256T Frame | AJ6TKA EM2511TOpen Dripproof230/460V10 hp1.15Foot Mounted1180 RPMThree PhaseClass F€5,099.18
BALDOR MOTOR EM2513T Three Phase Motor, 230/460V, 1800 RPM, 60 Hz, 15 hp, ODP, 254T Frame | AJ6TKH EM2513TOpen Dripproof230/460V15 hp1.15Foot Mounted1770 RPMThree PhaseClass F€4,561.57
BALDOR MOTOR EM2513T-5 Three Phase Motor, 575V, 1800 RPM, 60 Hz, 15 hp, ODP, 254T Frame | AJ6TKJ EM2513T-5Open Slotted Band575V15 hp1.15Foot Mounted1765 RPMThree PhaseClass F€3,275.33

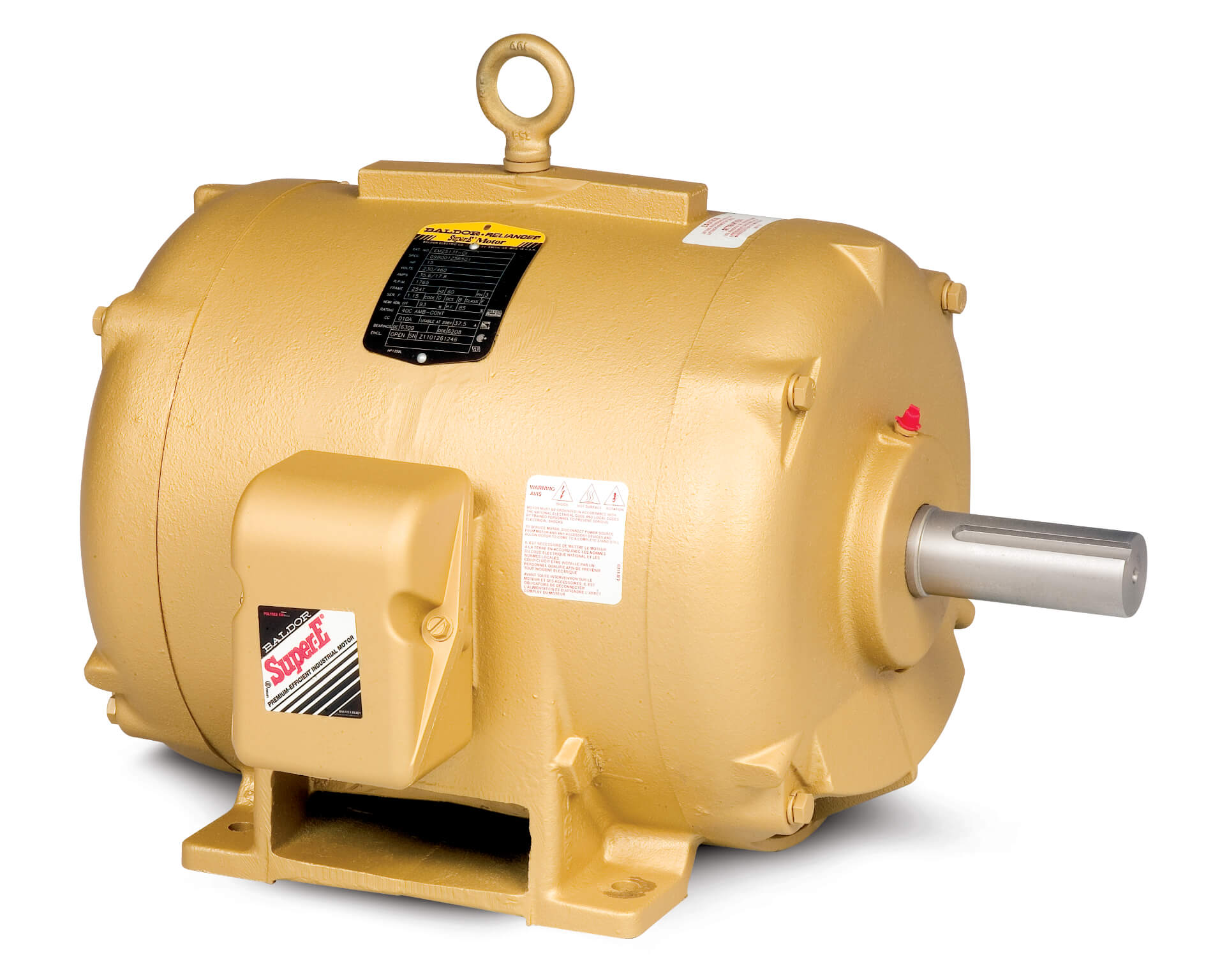

BALDOR MOTOR EM2513T-CI Three Phase Motor, 230/460V, 1800 RPM, 60 Hz, 15 hp, ODP, 254T Frame | AJ6TKQ EM2513T-CIOpen Air Over230/460V15 hp1.15Foot Mounted-Three PhaseClass F€3,512.00
