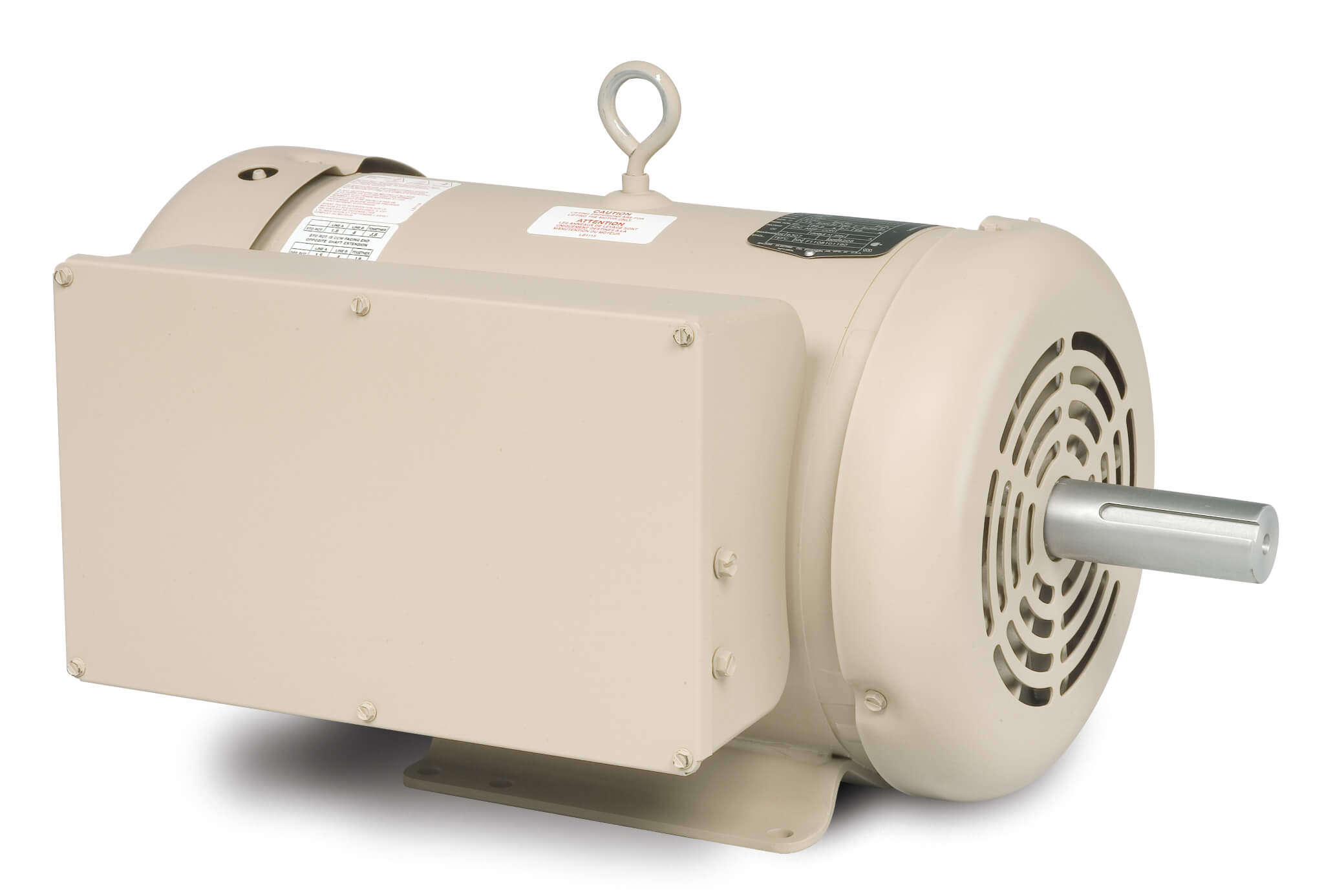

BALDOR MOTOR DEL3733TM Vacuum Pump Motor, 230V, 1800 RPM, 7.5 hp, 1 Phase, TEFC, 215T Frame
Get it by Wednesday, Dec 24
€5,088.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 50°C |
| Amps | 28A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 58 lbs.-ft. |
| Class | Stock |
| Code | H |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | L |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 215T |
| Frame Material | Steel |
| Frame Size | 215T |
| Frequency | 60 Hz |
| Full Load Torque | 22.4 lbs.-ft. |
| Full Load Torque | 22.4 ft.-lbs. |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 2#10 A PH,3#14 B&J |
| Lead | 2#10 A Ph, 3#14 B&J |
| Line-line Res. @ 25° C | 0.271 ohms A Ph/0.579 ohms B Ph |
| Locked-rotor Torque | 93 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Foot Mounted |
| Mounting Type | Foot Mounted |
| Multiplier | L1 |
| Nema/iec | NEMA |
| No Load Amps | 10.8A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85% |
| Overall Length | 20.77" |
| Phase | 1 |
| Power Factor | 98 |
| Product Datasheet | baldor-motor-del3733tm.pdf |
| Proprietary | No |
| Pull-up Torque | 50 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | AP |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 220A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 88°C |
| Temp. Rise @ Rated Load | 72°C |
| Temp. Rise @ S. F. Load | 88°C |
| Thermal Protection | Manual |
| Type | 3750LC |
| Voltage | 230V |
| Wire Size | 10 AWG |
Shipping Info:
| Ship weight (kg) | 72.9 |
| Ship height (cm) | 44.13 |
| Ship length (cm) | 66.99 |
| Ship width (cm) | 41.91 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 93 LB-FT
- Nameplate No.: NP1280L
- Pull-Up Torque: 50 LB-FT
- Starting Current: 220 Amps
Documentation:
Product Variants
| Product | Model | Hp | Insulation Class | Overall Length | Power Factor | Break-down Torque | Amps | Wire Size | Lead | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DEL3737TM | 10 hp | Class H | 21.27" | 96 | 111 lbs.-ft. | 39A | 8 AWG | 2#8 A Ph, 3#12 B&J | €6,215.88 |
