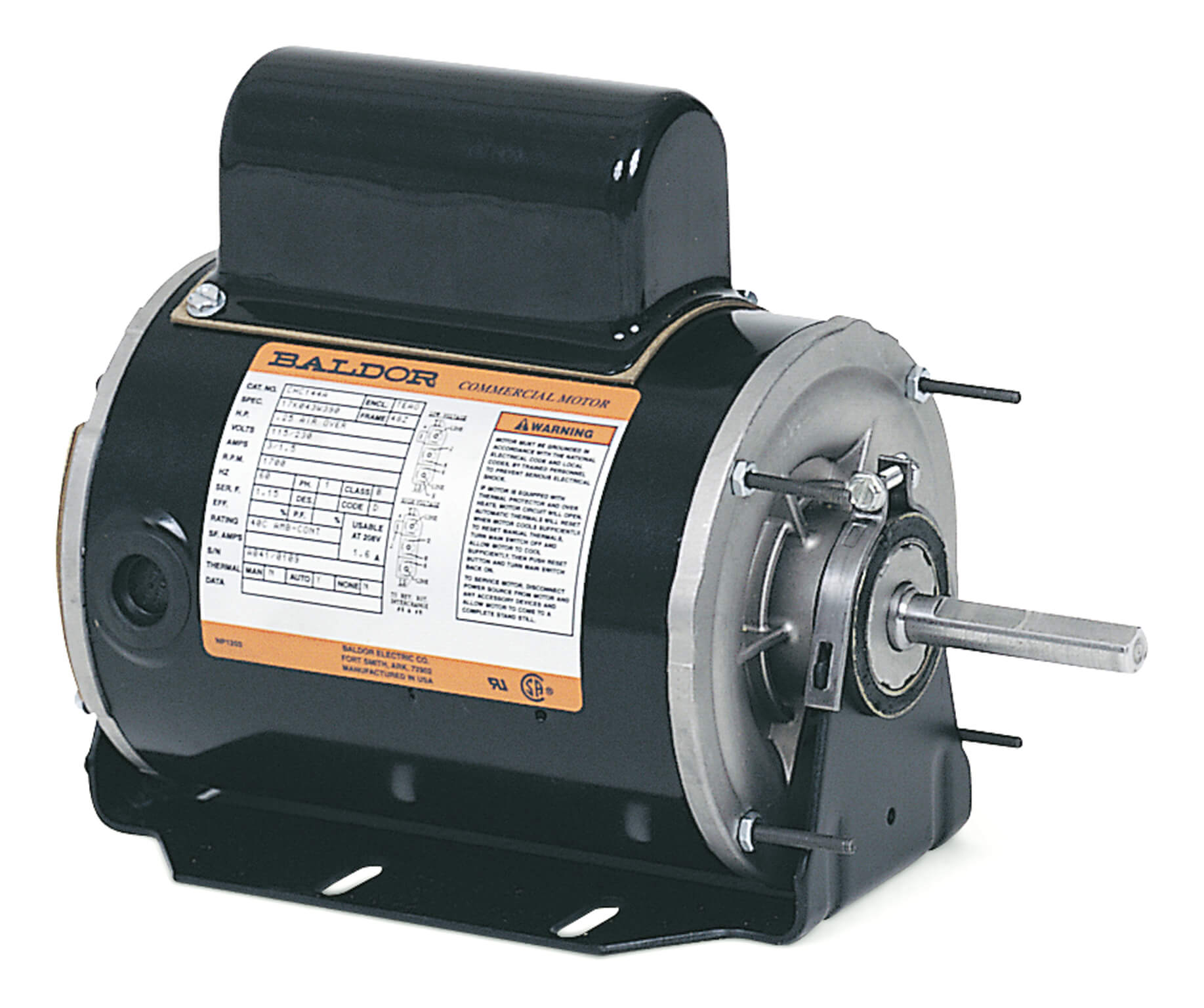

BALDOR MOTOR CHC545A Direct Drive Fan Motor, 115/230V, 1800 RPM, 60 Hz, 1 hp, 1 Phase, TEAO, 56 Frame
Get it by Friday, Dec 19
€845.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 9.8/4.9A |
| Auto | Yes |
| Base Indicator | Resilient |
| Base Type | Resilient |
| Break-down Torque | 7 lbs.-ft. |
| Capacitor Required | Yes |
| Class | Stock |
| Code | F |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency @ 100% Load | 72% |
| Enclosure Design | TEAO |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 9.8/4.9A |
| Full Load Efficiency | 72% |
| Full Load Torque | 3.1 lbs.-ft. |
| Full Load Torque | 3.1 ft.-lbs. |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Code | Not Inverter |
| Lead | 6#18,1#14 #1TH |
| Lead | 6#18, 1#14 #1Th |
| Line-line Res. @ 25° C | 2.9 ohms A Ph/8.08 ohms B Ph |
| Locked-rotor Torque | 1.1 lbs.-ft. |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Extended Studs, Resilient Base |
| Multiplier | C1 |
| Nameplate Rpm | 1700 RPM |
| Nema/iec | NEMA |
| No Load Amps | 2.3A |
| No. Of Motor Leads | 6 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Length | 12.41" |
| Phase | 1 |
| Power Factor | 82 |
| Product Datasheet | baldor-motor-chc545a.pdf |
| Proprietary | No |
| Pull-up Torque | 0.5 lbs.-ft. |
| Pulley Face Code | Resilient Mount |
| Revision | X |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 23.2A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise @ Rated Load | 57°C |
| Thermal Protection | Automatic |
| Type | 1924C |
| Voltage | 115/230V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 33.33 |
| Ship length (cm) | 49.21 |
| Ship width (cm) | 34.93 |
| HS code | 85015100 |
| Country of Origin | US |
Product Details:
- Locked-Rotor Torque: 1.1 LB-FT
- Nameplate No.: NP1986A
- Pull-Up Torque: 0.5 LB-FT
- Starting Current: 23.2 Amps
Documentation:
Product Variants
| Model | Voltage | Hp | Frame | Shaft Dia. | Phase | Nameplate Rpm | Insulation Class | Capacitor Required | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CHC144A | 115/230V | 1/4 hp | 48Z | 1/2" | 1 | 1725 RPM | Class B | Yes | €549.14 | |
| CHC164A | 115/230V | 1/4 hp | 48Z | 1/2" | 1 | 1100 RPM | Class B | Yes | €638.58 | |
| CHC244A | 115/230V | 1/3 hp | 48Z | 1/2" | 1 | 1700 RPM | Class B | Yes | €612.61 | |
| CHC264A | 115/230V | 1/3 hp | 48Z | 1/2" | 1 | - | Class B | Yes | €739.56 | |

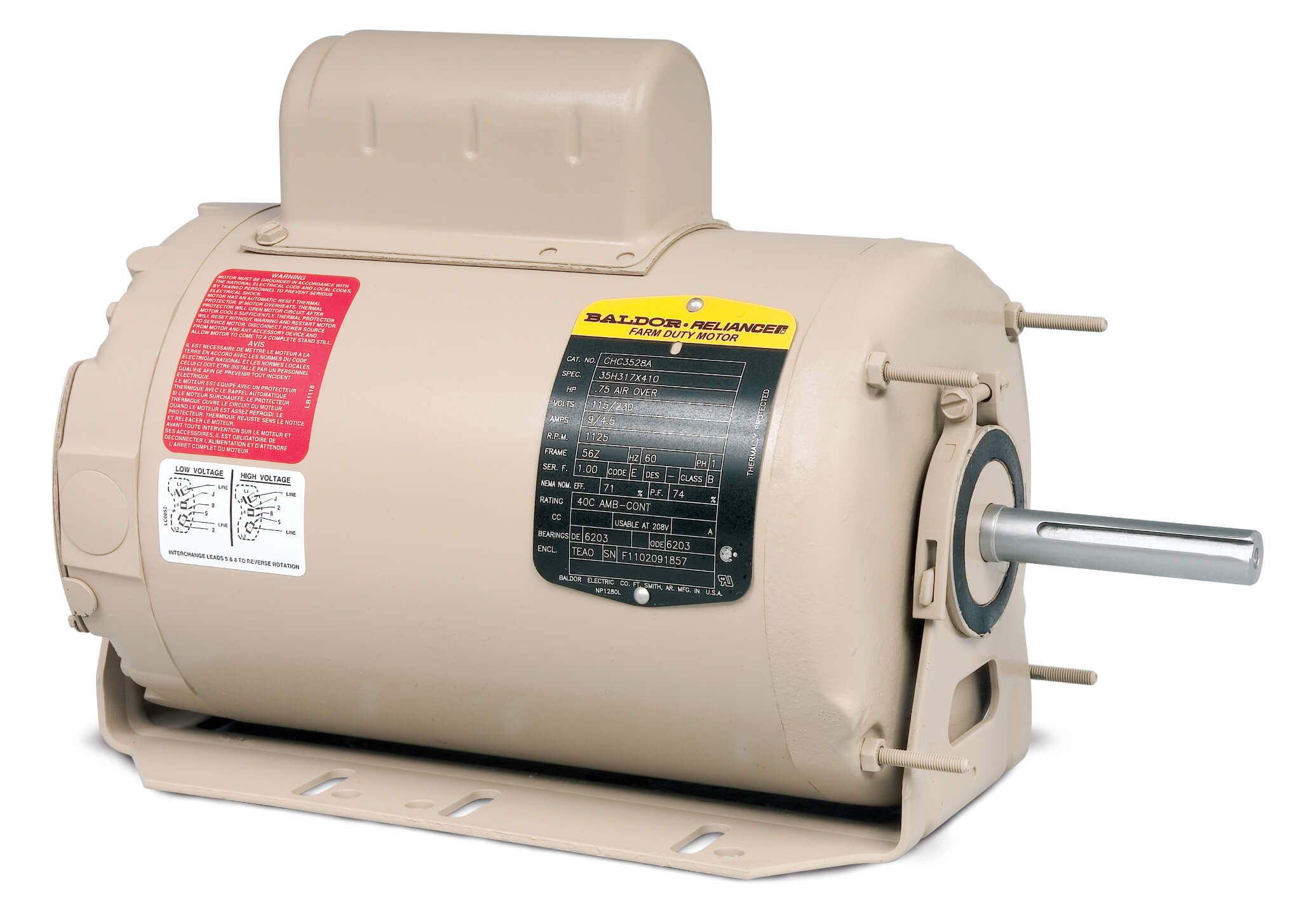

| CHC3526A | 115/230V | 1/2 hp | 56Z | 5/8" | 1 | - | Class F | Yes | €1,264.49 | |
| CHC365A | 115/230V | 1/2 hp | 56YZ | 5/8" | 1 | 1100 RPM | Class B | Yes | €798.23 | |
| CHC445A | 115/230V | 3/4 hp | 56YZ | 5/8" | 1 | 1700 RPM | Class B | Yes | €790.52 |
