BALDOR MOTOR CEBM3714T-D D-series Brake Motor, 230/460V, 1800 RPM, 60 Hz, 10 hp, TEFC, 215TC Frame
Get it by Friday, Dec 19
€7,006.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 25.4-24/12A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 134 lbs.-ft. |
| Class | Stock |
| Code | K |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Design Code | A |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 215TC |
| Frame Material | Steel |
| Frame Size | 215TC |
| Frequency | 60 Hz |
| Full Load Torque | 29.5 lbs.-ft. |
| Full Load Torque | 29.5 ft.-lbs. |
| Hp | 10 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Lead | 9#14 |
| Line-line Res. @ 25° C | 0.93503 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 68.7 lbs.-ft. |
| Max. Ambient Temp. | 81°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | C Face Foot Mounted |
| Motor Type | Three Phase |
| Mounting Type | C Face, Foot Mounted |
| Multiplier | L1 |
| Nameplate Rpm | 1770 RPM |
| Nema/iec | NEMA |
| No Load Amps | 5.49A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.7% |
| Overall Length | 26.86" |
| Phase | 3 |
| Power Factor | 85 |
| Product Datasheet | baldor-motor-cebm3714t-d.pdf |
| Proprietary | No |
| Pull-up Torque | 49.2 lbs.-ft. |
| Pulley Face Code | C Face |
| Revision | B |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 103A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 81°C |
| Temp. Rise @ Rated Load | 63°C |
| Temp. Rise @ S. F. Load | 81°C |
| Type | 3752M |
| Voltage | 208-230/460V |
| Wire Size | 14 AWG |
Shipping Info:
| Ship weight (kg) | 74.25 |
| Ship height (cm) | 47.31 |
| Ship length (cm) | 103.98 |
| Ship width (cm) | 44.77 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 68.7 LB-FT
- Nameplate No.: NP2105L
- Pull-Up Torque: 49.2 LB-FT
- Starting Current: 103 Amps
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Insulation Class | Power Factor | Type | Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BNM3538-D | 208-230/460V | 1/2 hp | 1740 RPM | 56 | Class F | 63 | 3512M | 1700-1800 RPM | €1,487.15 | |
|
BNM3542-D | 208-230/460V | 3/4 hp | 1750 RPM | 56 | Class F | 74 | 3514M | 1700-1800 RPM | €2,022.01 | |
 |
CEBM3554T | 230/460V | 1 1/2 hp | 1770 RPM | 145TC | Class F | 72 | 3526M | 1760 RPM | €2,637.30 | |
 |

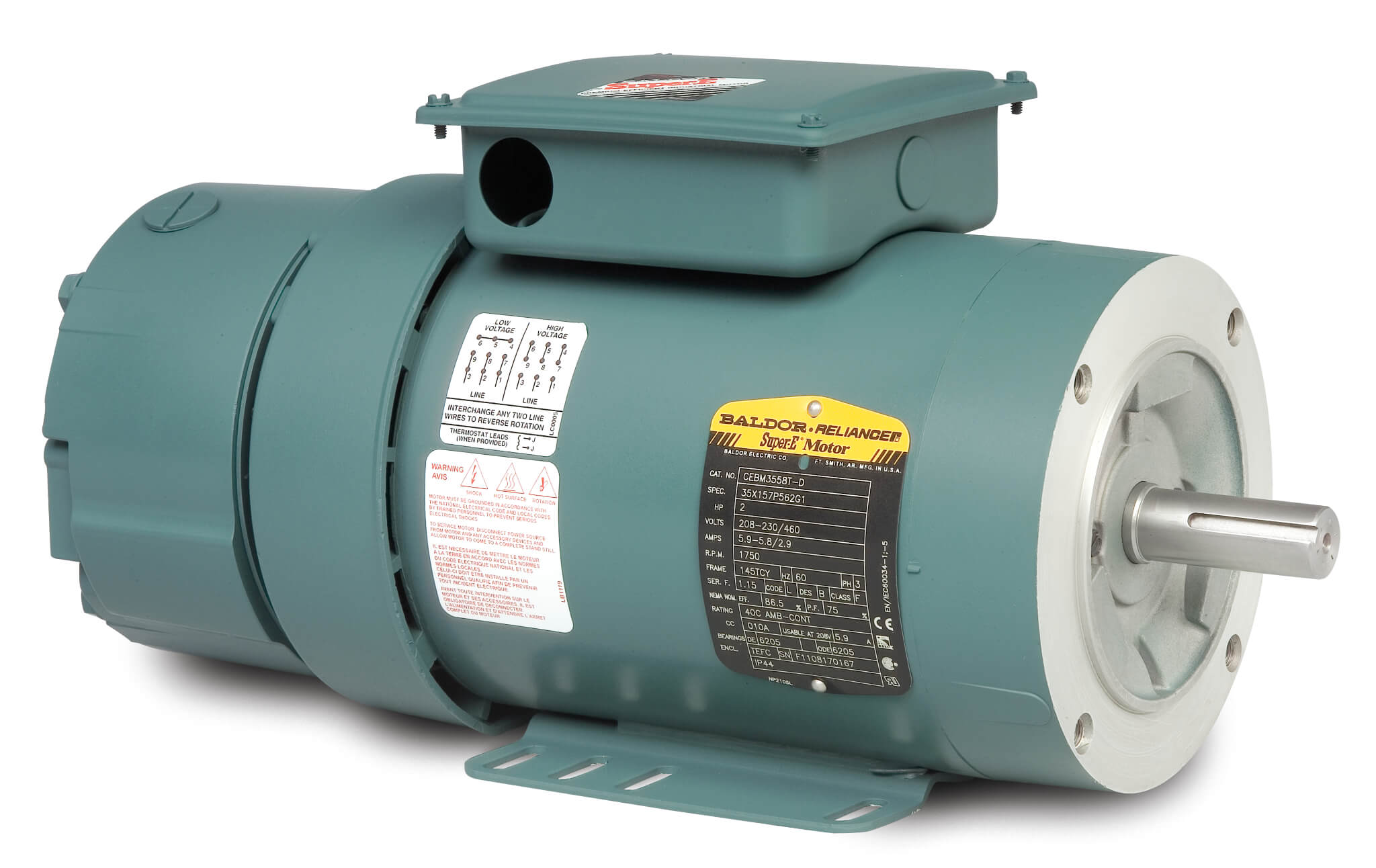

CEBM3558T-D | 208-230/460V | 2 hp | 1750 RPM | 145TCY | Class F | 77 | 3528M | 1700-1800 RPM | €2,766.99 | |
 |

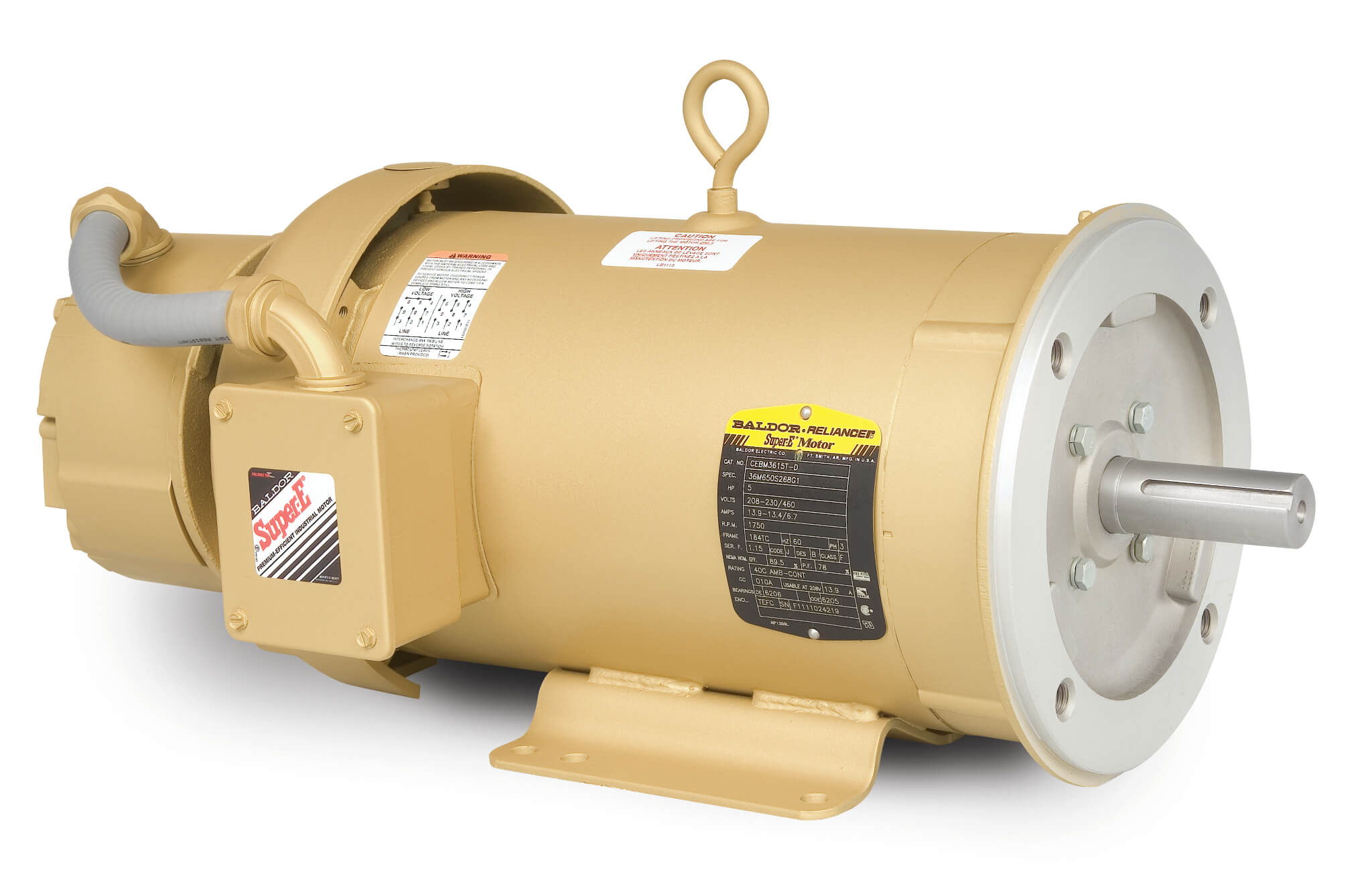

CEBM3611T-D | 208-230/460V | 3 hp | 1760 RPM | 182TC | Class F | 77 | 3628M | 1700-1800 RPM | €3,507.26 | |
|
CEBM3615T-D | 208-230/460V | 5 hp | 1750 RPM | 184TC | Class F | 78 | 3642M | 1700-1800 RPM | €4,065.77 | |
|

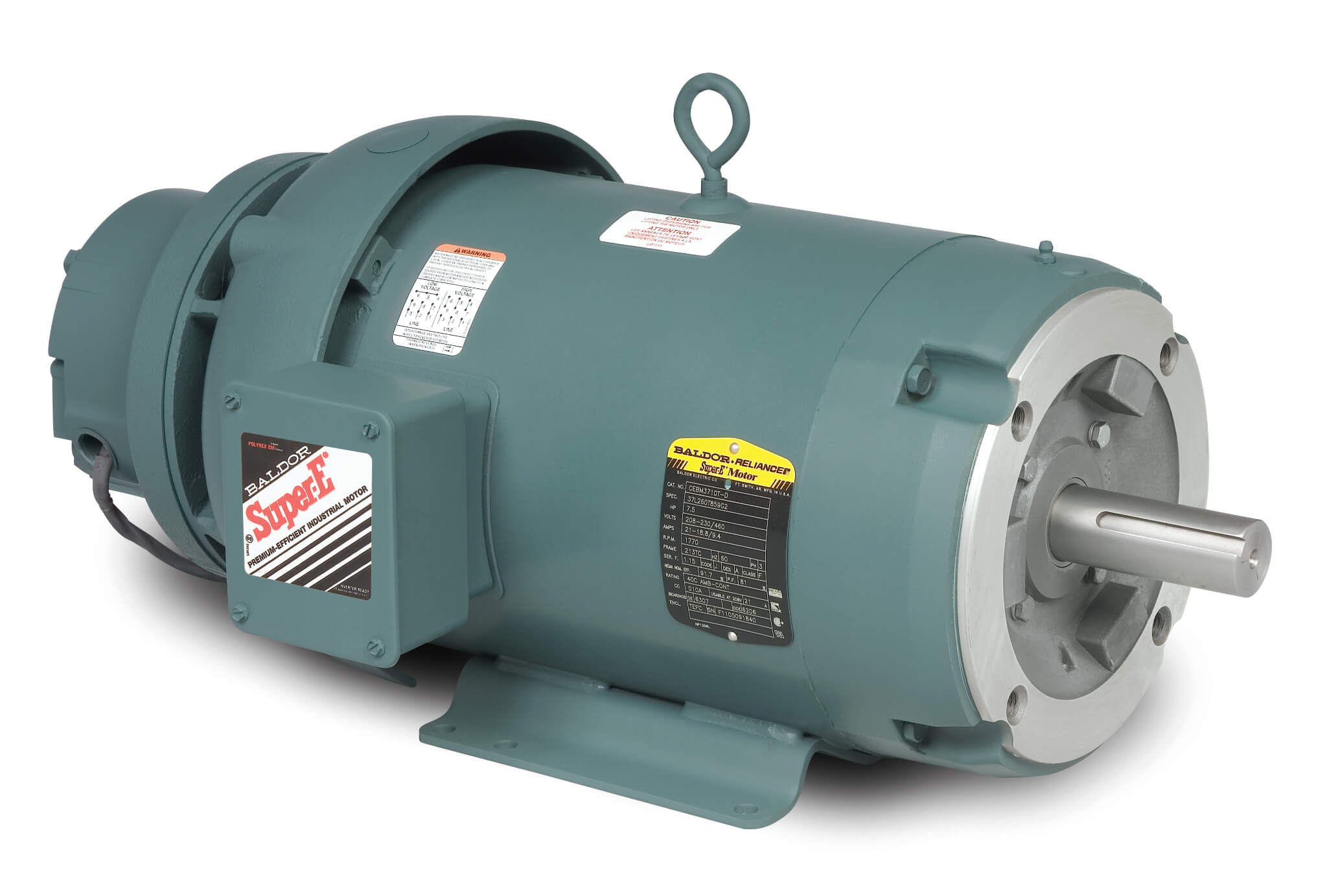

CEBM3710T-D | 208-230/460V | 7 1/2 hp | 1770 RPM | 213TC | Class F | 80 | 3736M | 1700-1800 RPM | €5,732.78 |
