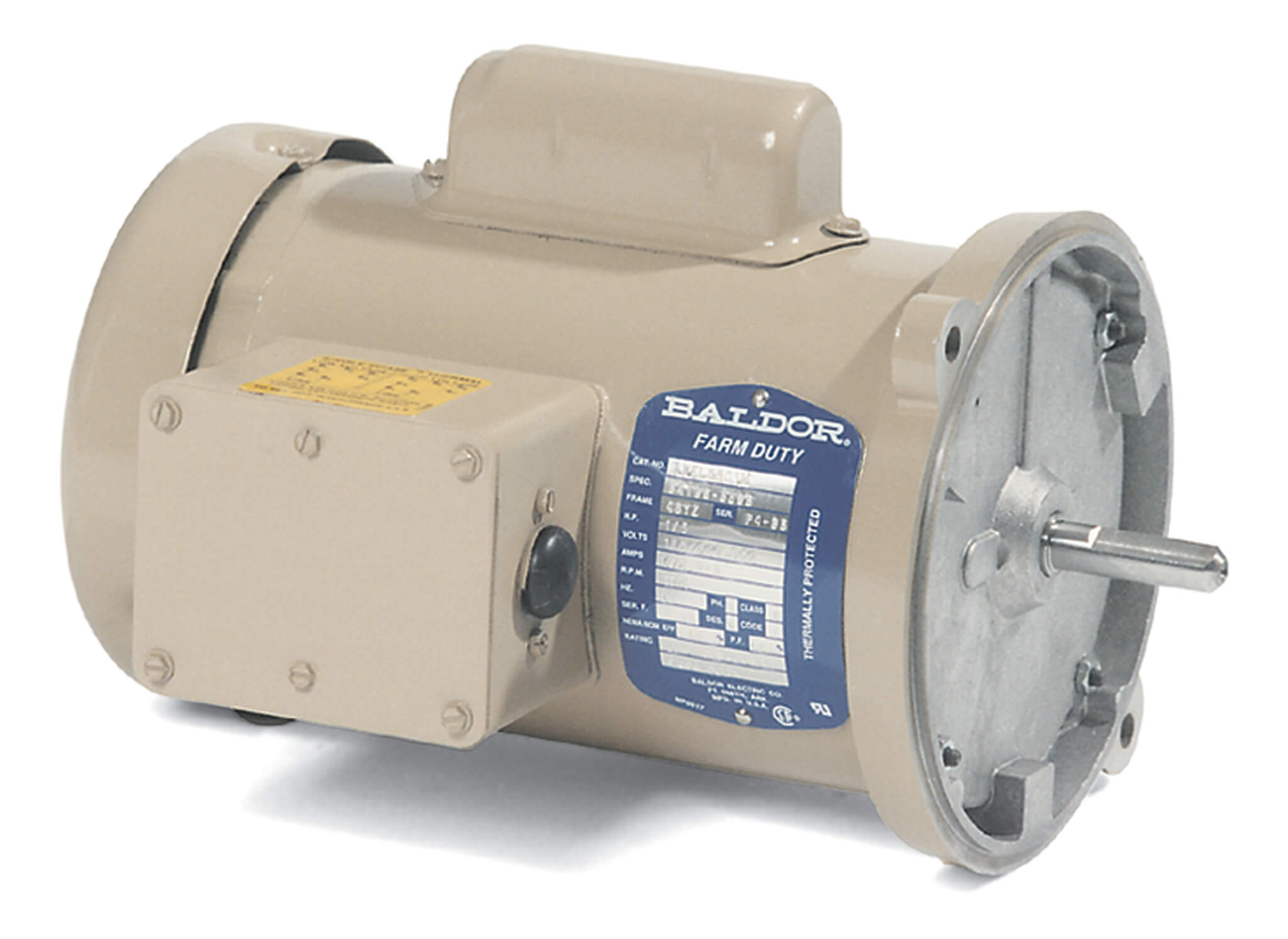

BALDOR MOTOR ANFL3501M Auger Drive Motor, 115/230V, 1800 RPM, 0.33 hp, 1 Phase, TEFC, 48YZ Frame
Get it by Monday, Dec 22
€900.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 6/3A |
| Amps @ 208v | 3.6A |
| Base Type | Not Applicable |
| Break-down Torque | 2.95 lbs.-ft. |
| Class | Stock |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | N |
| Duty | Continuous |
| Enclosure Design | TEFC |
| Frame | 48YZ |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Torque | 1 ft.-lbs. |
| Full Load Torque | 1 lbs.-ft. |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 7#18 |
| Line-line Res. @ 25° C | 6.32 ohms A Ph/4.93 ohms B Ph |
| Locked-rotor Torque | 3.6 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Flange |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Flanged |
| Multiplier | K |
| Nema/iec | NEMA |
| No Load Amps | 2.6A |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 60% |
| Overall Length | 12.44" |
| Phase | 1 |
| Power Factor | 60 |
| Product Datasheet | baldor-motor-anfl3501m.pdf |
| Proprietary | No |
| Pull-up Torque | 2.55 lbs.-ft. |
| Pulley Face Code | Other |
| Revision | Y |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 13A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 73°C |
| Temp. Rise @ Rated Load | 59°C |
| Temp. Rise @ S. F. Load | 73°C |
| Thermal Protection | Manual |
| Type | 3414L |
| Voltage | 115/230V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85013100 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 3.6 LB-FT
- Nameplate No.: NP1257L
- Pull-Up Torque: 2.55 LB-FT
- Starting Current: 13 Amps
Documentation:
Product Variants
| Model | Hp | Frame | Motor Design | Motor Service Factor | Motor Shaft Design | Insulation Class | Service Factor | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ANFL3504M | 1/2 hp | 48YZ | - | - | - | Class B | 1.25 | 12.44" | €1,009.60 | |
| ANFL3507M | 3/4 hp | 48YZ | Capacitor Start/Run | 1.25 | Standard | Class B | 1.25 | 13.32" | €1,210.24 | |
| ANFL3510M | 1 hp | 56YZ | Capacitor Start | 1.15 | Keyed | Class F | 1.15 | 13.55" | €1,433.46 | |
| ANFL3514M | 1 1/2 hp | 56YZ | - | - | - | Class F | 1 | 14.43" | €2,155.60 |
