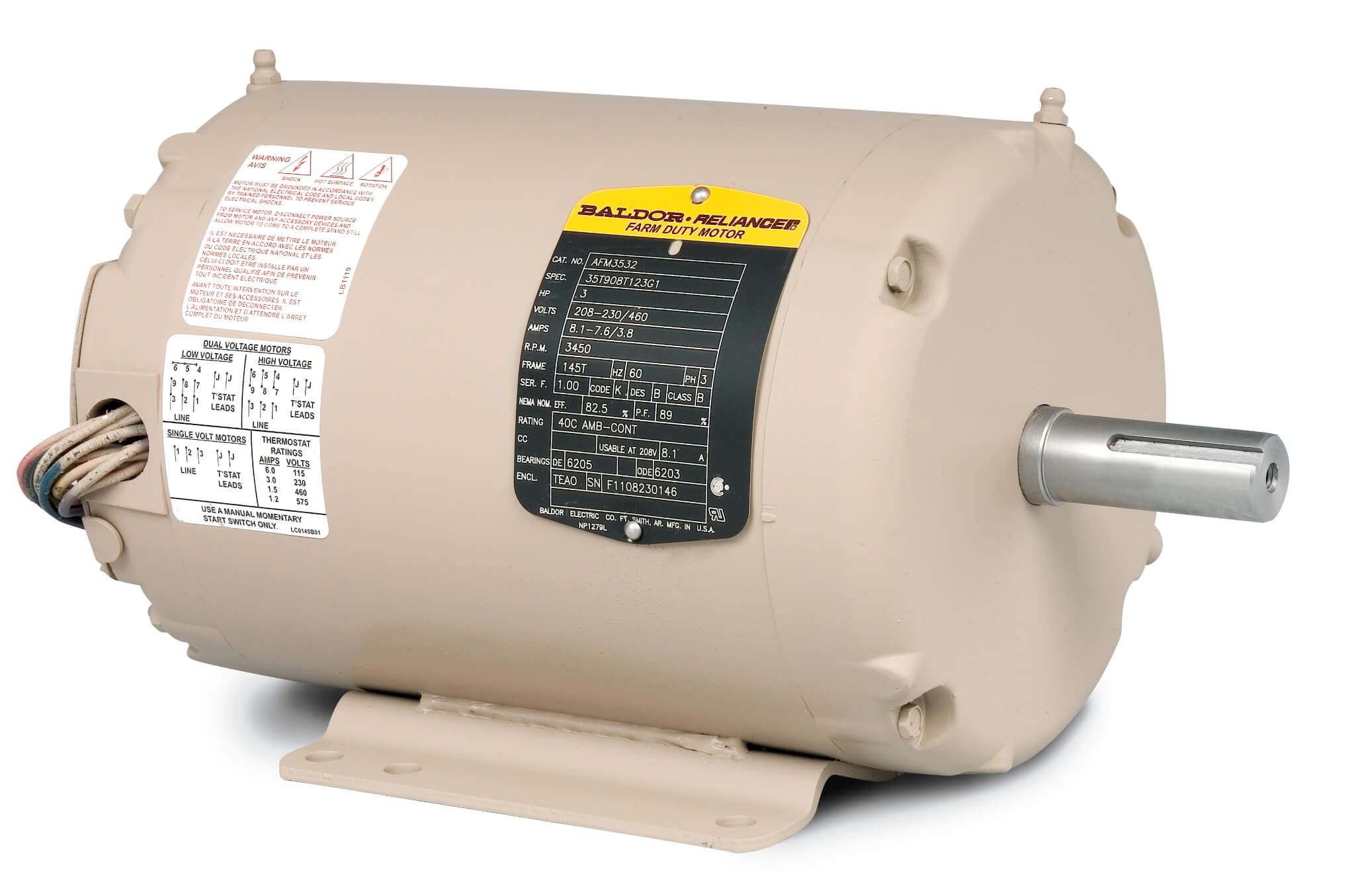

BALDOR MOTOR AFM3530 Aeration Fan Motor, 208-230/460V, 3600 RPM, 1.5 hp, 3 Phase, TEAO, 143TZ Frame
Get it by Tuesday, Dec 23
€818.77 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 4.9-4.6/2.3A |
| Amps @ 208v | 4.9A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 10.6 lbs.-ft. |
| Class | Stock |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEAO |
| Frame | 143TZ |
| Frame Material | Steel |
| Frame Size | 143TZ |
| Frequency | 60 Hz |
| Full Load Torque | 2.25 lbs.-ft. |
| Full Load Torque | 2.25 ft.-lbs. |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Inverter Code | Not Inverter |
| Lead | 9#18 14' Minimum Y |
| Leads | 9#18 14 Ft. Minimum Y |
| Line-line Res. @ 25° C | 8.53 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 11.7 lbs.-ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Foot Mounted |
| Mounting Type | Foot Mounted |
| Multiplier | L1 |
| Nameplate Rpm | 3450 RPM |
| Nema/iec | NEMA |
| No Load Amps | 1.4A |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Overall Length | 12.45" |
| Phase | 3 |
| Power Factor | 74 |
| Product Datasheet | baldor-motor-afm3530.pdf |
| Proprietary | No |
| Pull-up Torque | 10 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | E |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 18.4A |
| Synchronous Rpm | 3600 RPM |
| Temp. Rise | 83°C |
| Temp. Rise @ Rated Load | 71°C |
| Temp. Rise @ S. F. Load | 83°C |
| Thermal Protection | Thermostat |
| Type | 3424M |
| Voltage | 208-230/460V |
| Wire Size | 18 AWG |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 28.26 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 29.21 |
| HS code | 85015220 |
| Country of Origin | US |
Product Details:
- Explosion Proof Class/Group: NONE
- Locked-Rotor Torque: 11.7 LB-FT
- Nameplate No.: NP1279L
- Pull-Up Torque: 10 LB-FT
- Starting Current: 18.4 Amps
