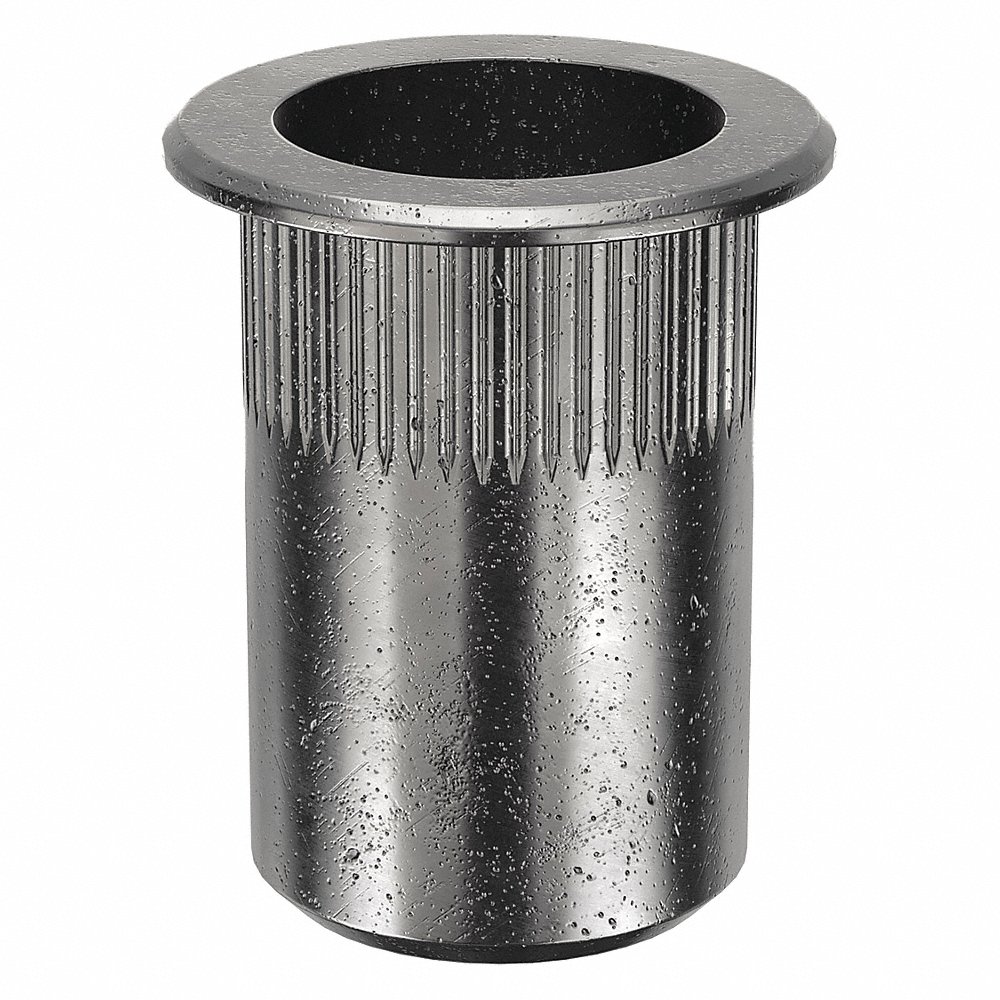

AVK ALS4T-1015-7.9 Rivet Nut, M10x1.5 Thread Size, Steel, 20.45 mm Lg., 3.8 mm To 7.9 mm Grip Rng
Item: AG3FMPModel: ALS4T-1015-7.9Cross Ref: 33JF26
7 In Stock
Ships within 2 days via
10.00% off
€23.56 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rivet Nut |
| Body Dia. | 13.46 mm |
| Body Length | 20.45 mm |
| Body Texture | Knurled |
| Body Type | Round |
| Compatible Material | Metal |
| Display Qty | 10 |
| Drill Bit Size | 13.5 mm |
| Drill Size | 17/32" |
| End Type | Open |
| Features | Corrosion Resistant |
| Flange Dia. | 17.4 mm |
| Flange Style | Flanged |
| Flange Thickness | 0.89 mm |
| Grip Range | 3.8 mm to 7.9 mm |
| Head Height | 0.89 mm |
| Insert Diameter | 13.5 mm |
| Insert Nut Type | Rivet Nut |
| Installation Method | Pneumatic, Hydraulic Tool, Spin, Spin Aro Pneumatic Tool |
| Installed Length | 10.8 mm |
| Length | 20.45 mm |
| Material | Steel |
| Material Grade/class | Grade 1010, Grade 1008 |
| Maximum Hole Diameter | 13.5 mm |
| Maximum Material Thickness | 7.9 mm |
| Minimum Material Thickness | 3.8 mm |
| Nut Type | Knurled |
| Overall Length | 21.3 mm |
| Rivet Type | Knurled Flanged |
| System Of Measurement | Metric |
| Thread Direction | Right Hand |
| Thread Fit | 6H |
| Thread Size | M10 x 1.5 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 7318160000 |
