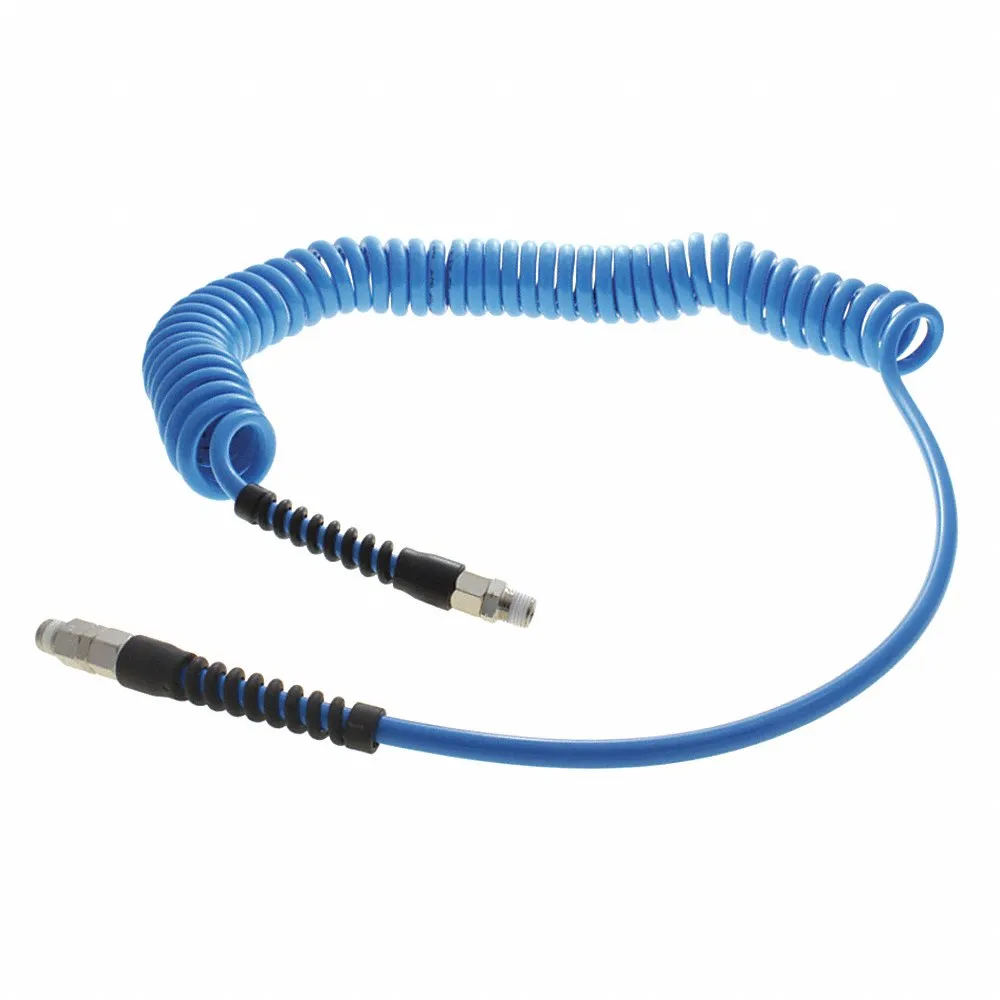

ATP TT-38-30-LB-RS2 Coiled Air Assembly, 3/8 Inch Inside Dia, Light Blue, Brass x Brass
Item: CN8ZPCModel: TT-38-30-LB-RS2Cross Ref: 55AR14
7 In Stock
Ships within 2 days via
5.00% off
€175.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Assembly |
| Burst Pressure | 420 psi |
| Color | Light Blue |
| Compatible Chemicals | Air, Fresh Water |
| Compressed Length | 47" |
| Configuration | Coupled Assembly |
| Cover Material | Polyurethane |
| Fitting Material | Brass x Brass |
| For Media Type | Air, Water |
| Hose Color | Light Blue |
| Hose Configuration | Coupled Assembly |
| Hose Cover Material | Polyurethane |
| Hose Fitting A Size | 1/4" |
| Hose Fitting A Type | MNPT |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | MNPT |
| Hose Inside Dia. | 3/8" |
| Hose Length | 24 ft. |
| Hose Outside Dia. | 9/16" |
| Hose Reinforcement Material | Not Reinforced |
| Hose Strain Relief | Yes |
| Hose Tube Material | Polyurethane |
| Inside Dia. | 3/8" |
| Length | 24 ft. |
| Max. Pressure | 140 psi |
| Max. Working Pressure @ 70f | 140 psi |
| Max. Working Pressure @ 71 Deg. F | 140 psi |
| Not Recommended Chemicals | Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene |
| Outside Dia. | 0.562" |
| Pigtail Length | 20" |
| Pressure | 420 psi |
| Safety Factor | 31 |
| Temp. | -68°F to +140°F |
| Tube Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Color | Hose Inside Dia. | Hose Color | Hose Fitting A Size | Compressed Length | Hose Fitting B Size | Cover Material | Max. Working Pressure @ 70f | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TT-14-20-LB-RS-QC | Light Blue | 1/4" | Light Blue | 1/4" | 40" | 1/4" | Polyurethane | - | €110.98 | |
| TT-14-30-LB-RS-QC | Light Blue | 1/4" | Light Blue | 1/4" | 50" | 1/4" | Polyurethane | 140 psi | €153.54 | |
| TT-14-15-LB-RS-QC | Light Blue | 1/4" | Light Blue | 1/4" | 36" | 1/4" | Polyurethane | 140 psi | €102.04 | |
| TT-14-25-LB-RS-QC | Light Blue | 1/4" | Light Blue | 1/4" | 45" | 1/4" | Polyurethane | 140 psi | €122.07 | |
| TT-14-10-LB-RS-QC | Light Blue | 1/4" | Light Blue | 1/4" | 31" | 1/4" | Polyurethane | 140 psi | €94.63 | |
| TT-14-20-LB-RS | Light Blue | 1/4" | Light Blue | 1/4" | 40" | 1/4" | Polyurethane | 140 psi | €75.48 | |
| TT-14-30-LB-RS | Light Blue | 1/4" | Light Blue | 1/4" | 50" | 1/4" | Polyurethane | 140 psi | €103.26 |
