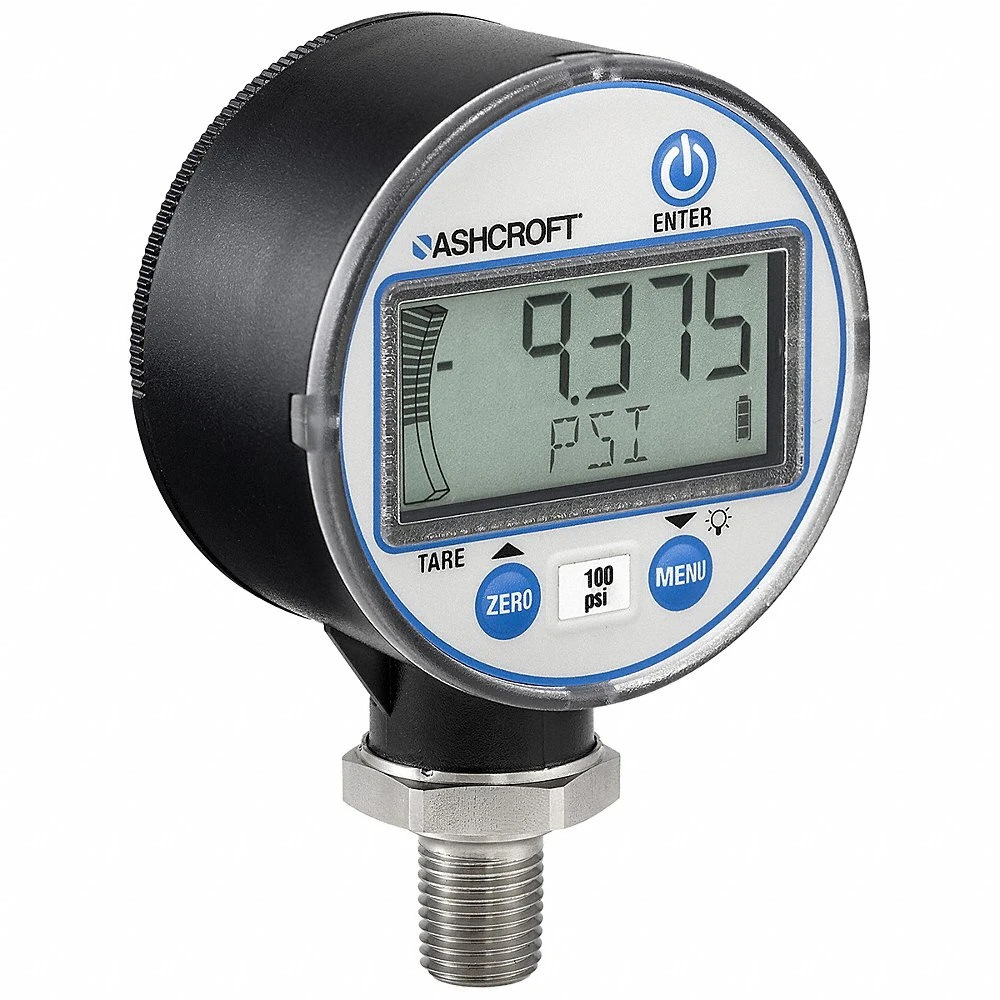

ASHCROFT DG2551L0NAM02L100#-XCYLM Industrial Pressure Gauge, 0 to 100 PSI, For Liquids & Gases, 1/4 Inch NPT Male, Bottom
Item: CN8XVDModel: DG2551L0NAM02L100#-XCYLMCross Ref: 797T18
7 In Stock
Ships within 2 days via
5.00% off
€368.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -0.5% to +0.5% |
| Accuracy Grade | ASME B40.7 Grade 2A , Grade 2A |
| Accuracy Grade Gauge Type | Process |
| Accuracy Grade Type | Grade Process |
| Ambient Operating Temp. | -4°F to +140°F |
| Ambient Operating Temp. Range | -4°F to +140°F |
| Application | Hydraulics, Pneumatics, Process Applications: Material Strength Testing, Specialized OEM Equipment, Test And Measurement, Torque Measurement, Weighing Systems , Hydraulics, Pneumatics, Process Applications: Material Strength Testing, Specialized OEM Equipment, Test, Measurement, Torque Measurement, Weighing Systems |
| Auto Shutoff | 10 sec. , Yes |
| Auto-shutoff Time | 10 sec. |
| Backlit Screen | Yes |
| Bar Graph | 20 Segments |
| Battery Included | Yes |
| Battery Run Time | 2000 hrs. |
| Battery Type | AA Alkaline Batteries |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Depth | 1.61" |
| Case Dia. | 2.73" |
| Case Material | ABS, Polycarbonate , Plastic |
| Case Shape | Round |
| Compatible Process Media | Pressure Media In Demanding Industrial Applications |
| Connection Location | Bottom |
| Display Range | 0 psi to 100 psi |
| Display Screen Type | LCD |
| Display Type | LCD |
| Display Units | Psi |
| Gauge Accuracy Grade | Grade 2A - Process |
| Gauge Application | For Liquids & Gases , For Liquids, Gases |
| Gauge Case Material | ABS, Polycarbonate |
| Gauge Wetted Parts | Stainless Steel |
| Hazardous Location Rating | Not Rated |
| Included Rubber Boot | No |
| Indicator | 20 Segments |
| Ip Rating | IP67 |
| Ip Rating, Nema Rating | IP67 |
| Ip/nema Rating | Nema Ip67 |
| Keypad Material | Polycarbonate |
| Lens Material | Polycarbonate |
| Low Battery Indicator | Yes |
| Memory Features | Min, Max , Min/Max |
| Mfr. Series | DG25 Series |
| Mounting Orientation | Upright Only |
| No. Of Batteries | 2 |
| No. Of Digits | 5 |
| No. Of Voltage | 2 |
| Nominal Dial Size | 2 1/2" |
| Non Sparking | Yes |
| Panel - Mountable | No |
| Panel-mountable | No |
| Power Source | Battery |
| Power Source Type | Batteries |
| Pressure | 0 psi to 100 psi |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Rating | 15 psi to 25000 psi |
| Pressure Type | Pressure |
| Primary Display Range | 0 to 100 |
| Primary Display Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Lower |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | -4°F to +176°F |
| Required Light | No |
| Sensor Material | Stainless Steel |
| Sensor Type | Diaphragm |
| Socket Material | Stainless Steel |
| Socket Material Grade | Grade 316L |
| Vibration Resistance | Method 201A, Mil-Std-202G |
| Wetted Material | Stainless Steel |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 4.09 |
| Ship length (cm) | 6.93 |
| Ship width (cm) | 6.93 |
| Country of Origin | US |
Product Variants
| Model | Case Material | Connection Location | Display Range | Primary Display Range | Gauge Application | Accuracy Grade | Accuracy Grade Gauge Type | Display Units | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DG2551L0NAM02L0I#&V-XCYLM | ABS, Polycarbonate | Bottom | -30 in. Hg to 0 in. Hg | -30 to 0 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | in Hg | €387.62 | |
| DG2551L0NAM02L500#-XCYLM | Plastic | Bottom | 0 psi to 500 psi | 0 to 500 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | Psi | €392.15 | |
| DG2551L0NAM02L15#-XCYLM | Plastic | Bottom | 0 psi to 15 psi | 0 to 15 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | psi | €388.58 | |
| DG2551L0NAM02L30#&V-XCYLM | Plastic | Bottom | -30 in. Hg to +30 psi | -30 to +30 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | In. Hg, Psi | €389.65 | |
| DG2551L0NAM02L5000#-XCYLM | Plastic | Bottom | 0 psi to 5000 psi | 0 to 5000 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | Psi | €393.52 | |
| DG2551L0NAM02L3000#-XCYLM | Plastic | Bottom | 0 psi to 3000 psi | 0 to 3000 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | Psi | €389.59 | |
| DG2551L0NAM02L300#-XCYLM | Plastic | Bottom | 0 psi to 300 psi | 0 to 300 | For Liquids & Gases | ASME B40.7 Grade 2A | Process | Psi | €387.62 |
