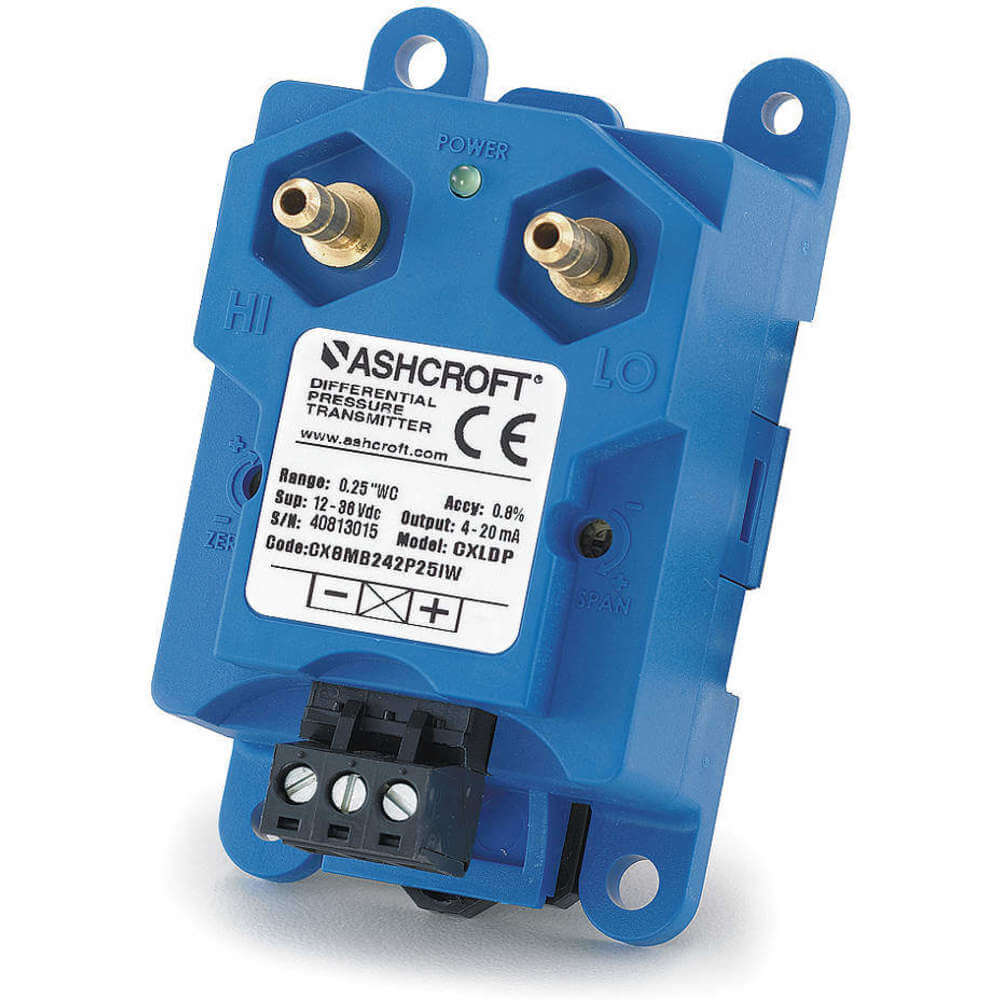

ASHCROFT CX8MB2425IWL Differential Transmitter, DIN Rail, -5 to 5 Inch wc, 4 to 20mA DC, Terminal Block
Item: AB8YHTModel: CX8MB2425IWLCross Ref: 2AGE7
7 In Stock
Ships within 2 days via
10.00% off
€219.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Transducer |
| Accuracy | -0.8% to +0.8% |
| Burst Pressure | 25 psid |
| Compatible With | Clean Dry Non-Corrosive Gasses |
| Electrical Connection | Terminal Board |
| Electrical Connections | Screw Terminals |
| Enclosure Rating | NEMA 1 |
| Features | Detachable Euro Style Terminal Block, Hysteresis, Non Repeatability, Rugged Abs Package Capable Of Din Rail Or Panel Mounting, Zero Offset And Span Setting Errors |
| Fitting Material | Brass |
| Housing | ABS |
| Housing Material | ABS |
| Includes | Instructions |
| Loop Resistance | Dependent On Loop Supply Voltage |
| Manufacturers Warranty Length | 1 yr. |
| Max. Pressure | 15 psi |
| Maximum Operating Temperature | 160°F |
| Maximum Pressure | 5 in. wc |
| Minimum Operating Temperature | 0°F |
| Minimum Pressure | -5 in. wc |
| Mounting Application | For DIN Rail-Mounting |
| Nema Rating | NEMA 1 |
| Nist Traceable Certificate | No |
| Number Of Wires | 2 |
| Operating Temp. | 0°F to +160°F |
| Output | 4-20 mA |
| Output Amps | 4-20 mA |
| Overall Height | 3.33" |
| Overall Length | 1.89" |
| Overall Width | 1 8/25" |
| Overpressure | 15 psid |
| Power Required | 12-36V DC |
| Pressure Range | -5 in. wc. to +5 in. wc. |
| Pressure Units | In Wc |
| Process Connection | 1/4" Male Hose Barb |
| Process Connection Gender | Male |
| Process Connection Size | 1/4" |
| Process Connection Size - Transmitter | 1/4" |
| Process Connection Type | Hose Barb |
| Response Time | 250 ms |
| Series | CXLDP Series |
| Standards | Ce, Rohs |
| Storage Temperature Range | -40°F to +180°F |
| Thermal Error | -0.03% to +0.03% |
| Wetted Materials | Brass |
| Width/diameter | 1.32" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 8.46 |
| Ship length (cm) | 4.8 |
| Ship width (cm) | 3.35 |
| HS code | 9026204000 |
| Country of Origin | US |
Product Variants
| Model | Electrical Connection | Pressure Range | Output | Process Connection | Number Of Wires | Nema Rating | Power Required | Wetted Materials | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CX8MB242P1IW-#4823 | Terminal Board | 0 in. wc to 0.1 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €241.50 | |
| CX8MB242P5IW | Terminal Board | 0 in. wc to 0.5 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €242.02 | |
| CX8MB2421IW | Terminal Board | 0 in. wc to 1 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €242.02 | |
| CX8MB2423IW | Terminal Board | 0 in. wc to 3 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €242.15 | |
| CX8MB2425IW | Terminal Board | 0 in. wc to 5 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €242.02 | |
| CX8MB24210IW | Terminal Board | 0 in. wc to 10 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €243.17 | |
| CX8MB242P1IWL | Terminal Board | -0.1 in. wc to +0.1 in. wc | 4-20 mA | 1/4" Male Hose Barb | 2 | NEMA 1 | 12-36V DC | Brass | €243.33 |
