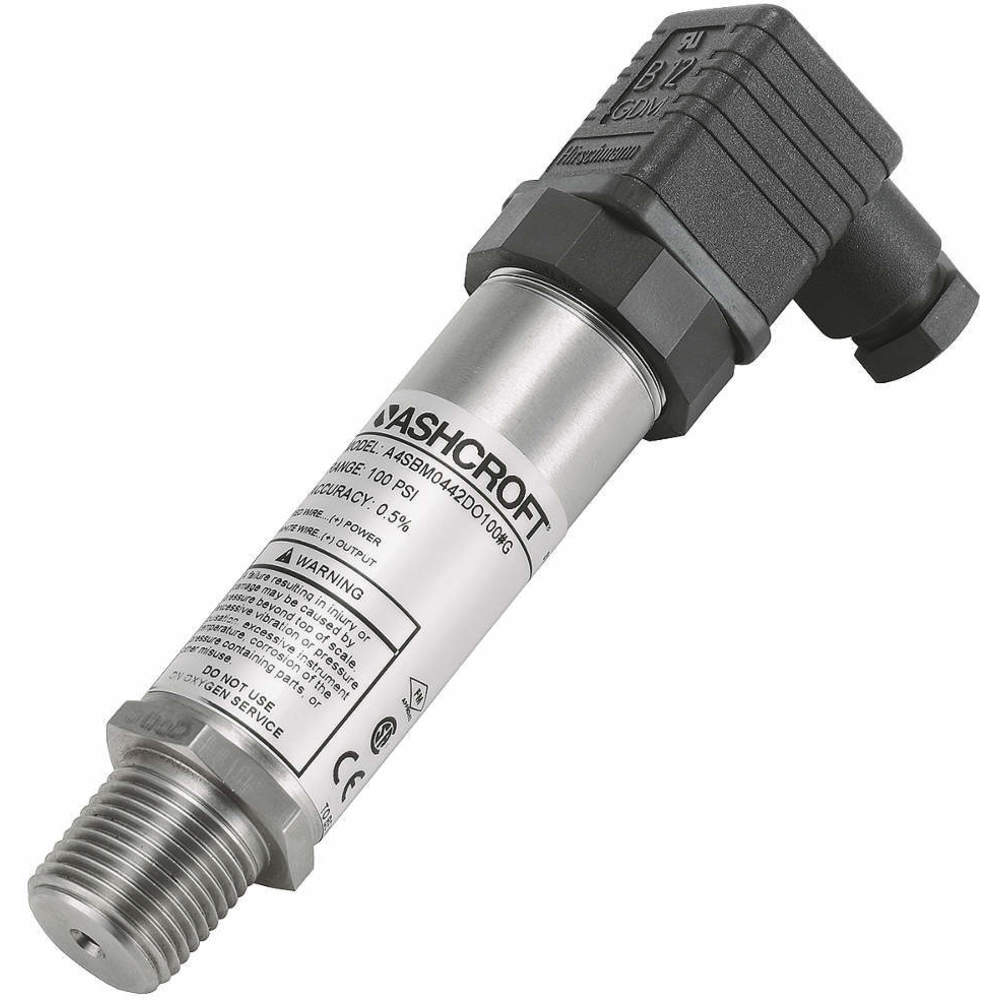

ASHCROFT A4SBM0442D0200# Pressure Transmitter, 0 to 200 PSI, 4 to 20mA DCForm A DIN 43650-A, IP65 /4X
Item: AE3GFNModel: A4SBM0442D0200#Cross Ref: 5DDG9
7 In Stock
Ships within 2 days via
5.00% off
€677.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Intrinsically Safe Transducer |
| Accuracy | -0.3% to +0.3% , -0.5% to +0.5% |
| Burst Pressure | 2x , 2x Range |
| Compatible With | Any Process Compatible With 316 Stainless Steel |
| Electrical Connection | Din 43650 Form A Connector, With Mating Connection Entry |
| Electrical Connections | DIN 43650 Form A Connector |
| Electrical Connections Type | DIN 43650 Form A Connector |
| Enclosure Rating | IP65, NEMA 4X |
| Explosion/fire Proof | No |
| Features | Board Microprocessor, Explosion Proof And Flame Proof Approvals |
| Fitting Material | Stainless Steel |
| Housing Grade | Grade 304 |
| Housing Material | Stainless Steel |
| Included | Instruction |
| Intrinsically Safe | Yes |
| Ip Rating | IP65 |
| Loop Resistance | Dependent On Loop Supply Voltage |
| Material | Stainless Steel |
| Max. Operating Temp. | 257°F |
| Max. Pressure | 200 psi , 400 psi |
| Min. Operating Temp. | -40°F |
| Min. Pressure | 0 psi |
| Nema Rating | NEMA 4X |
| No. Of Pins | 4 |
| No. Of Wire | 2 |
| No. Of Wires | 2 |
| Operating Temp. | -40°F to +257°F |
| Output | 4-20 mA |
| Over Pressure | 1.5 x Range , 1.5x |
| Overall Height | 4.45" |
| Overall Width | 1.06" |
| Power Required | 12-30V DC |
| Pressure | 0 psi to 200 psi |
| Pressure Units | Psi |
| Process Connection | 1/2" NPT Male |
| Process Connection Gender | Male |
| Process Connection Size | 1/2" |
| Process Connection Size-transmitter | 1/2" |
| Process Connection Type | NPT |
| Product Type | Intrinsically Safe-Rated Transmitter |
| Range | 0 psi to 200 psi |
| Range Units | Psi |
| Response Time | 2 ms |
| Safety Rating | Class I, II And III Div. 1 And 2 Groups A, B, C, D, F And G |
| Series | A4 Series |
| Storage Temp. | -40°F to +257°F |
| Thermal Error | -2% to +2% |
| Transmitter Type | Intrinsically Safe Pressure Transmitter |
| Type Of Pressure | Positive |
| Wetted Material | Stainless Steel |
| Wetted Material Grade | Grade 316L |
| Wiring Entry | With Mating Connection |
| Wiring Entry Size | 1/2" |
| Wiring Entry Type | FNPT |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 11.3 |
| Ship length (cm) | 2.69 |
| Ship width (cm) | 2.69 |
| HS code | 9026204000 |
| Country of Origin | US |
Product Variants
| Model | Max. Pressure | Range | Process Connection Size | Min. Pressure | Process Connection Type | Burst Pressure | Pressure | Process Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A4SBMO242DO15# | 15 psi | 0 psi to 15 psi | 1/4" | 0 psi | NPT | 2x Range | 0 psi to 15 psi | 1/4" NPT Male | €700.02 | |
| A4SBM0242D015#&VAC | 15 psi | 30 in. hg to 15 psi | 1/4" | -14.7 psi | NPT | 2x | -14.7 psi to +15 psi | 1/4" NPT Male | €700.02 | |
| A4SBM0242D030# | 30 psi | 0 psi to 30 psi | 1/4" | 0 psi | NPT | 2x Range | 0 psi to 30 psi | 1/4" NPT Male | €700.02 | |
| A4SBM0242D060# | 120 psi | 0 psi to 60 psi | 1/4" | 0 psi | NPT | 2x | 0 psi to 60 psi | 1/4" NPT Male | €700.02 | |
| A4SBM0242D0100# | 100 psi | 0 psi to 100 psi | 1/4" | 0 psi | NPT | 2x | 0 psi to 100 psi | 1/4" NPT Male | €700.02 | |
| A4SBM0242D0200# | 200 psi | 0 psi to 200 psi | 1/4" | 0 psi | NPT | 2x | 0 psi to 200 psi | 1/4" NPT Male | €700.02 | |
| A4SBM0242D0300# | 300 psi | 0 psi to 300 psi | 1/4" | 0 psi | NPT | 2x | 0 psi to 300 psi | 1/4" NPT Male | €700.02 |
