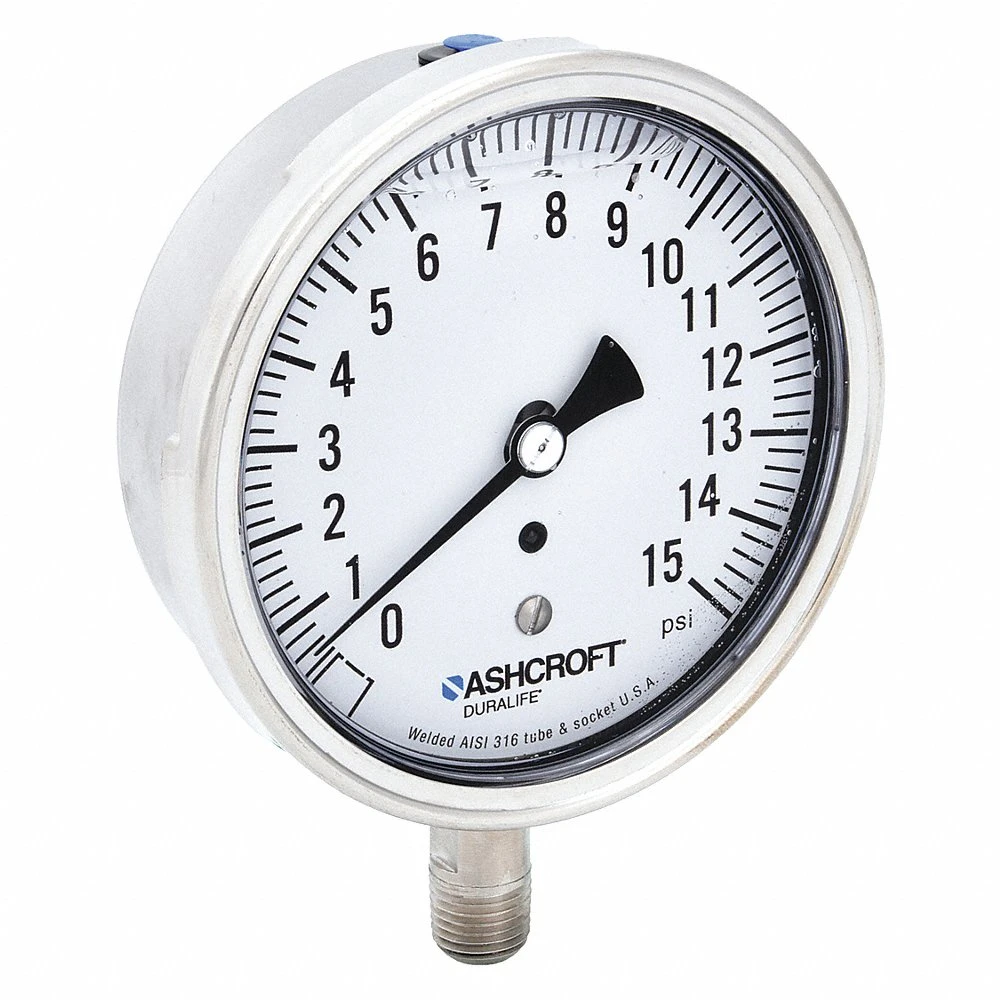

ASHCROFT 351009SWL02L15# Industrial Pressure Gauge, 0 To 15 PSI, 3 1/2 Inch Dial, Liquid-Filled, 1/4 Inch Npt Male
Item: CN8XYPModel: 351009SWL02L15#Cross Ref: 33HT41
7 In Stock
Ships within 2 days via
5.00% off
€195.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Grade | ASME B40.100 Grade 1A , Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temp. | 20°F to 150°F |
| Ambient Operating Temp. Range | 20°F to 150°F |
| Ambient Temp. | +20°F to +150°F |
| Application | Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing , Refrigeration, Autoclave, Boilers, Water Pressure Testing, Equipment Skids, Hydraulics, Pneumatics, Pumps, Severe Ambient Conditions, OEM Applications |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | No |
| Burst Pressure | 1200 psi |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic , Silver |
| Case Construction | Welded Joint |
| Case Depth | 1 1/4" |
| Case Dia. | 3.89" |
| Case Grade | Grade 304 |
| Case Liquid | Glycerin |
| Case Material | Stainless Steel |
| Case Material Grade | Grade 304 |
| Cleaned For Oxygen Service | No |
| Color | Silver |
| Compatible Process Media | Deionized Water |
| Connection Location | LOWER |
| Connection Size | 1/4" |
| Connection Type | MNPT |
| Dia. | 3.89" |
| Dial Color | White |
| Dial Face Color | White |
| Dial Face Material | Aluminum |
| Dial Material | Aluminum |
| Dial Size | 3 1/2" |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Filled With | Glycerin |
| Freeze Resistant Movement | No |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Application | Pumps, Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics, pneumatics, Severe Ambient Conditions |
| Gauge Case Liquid | Glycerin |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 3 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 1 |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Graduations | 1 psi |
| Hazardous Location Rating | Not Rated |
| Included Mounting Hardware | No |
| Included Vent Plug | Yes |
| Ip Rating, Nema Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Lens Material | Polycarbonate |
| Lens Material Gauge | Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Material | Stainless Steel |
| Material Grade | Grade 304 , Grade 316L |
| Max. Pressure | 15 psi |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Stainless Steel |
| Movement Material Grade | Grade 304 |
| Nominal Dial Size | 3 1/2" |
| Non Sparking | No |
| Operating Temp. | -20°F to +150°F |
| Panel - Mountable | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure | 0 psi to 15 psi |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Type | Pressure |
| Primary Pressure | 0 psi to 15 psi |
| Primary Pressure Scale Color | Black |
| Primary Range No.ed Graduations | 1 |
| Primary Range Smallest Graduation | 0.1 |
| Primary Range Units | Psi |
| Primary Range Values | 0 to 15 |
| Primary Scale Minor Graduations | 0.1 |
| Primary Scale Numeric Increments | 1 |
| Primary Scale Units | PSI |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temp. | +20°F to +200°F , 20°F to 200°F |
| Range | 0 psi to 15 psi |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Material Grade | Grade 316 |
| Sensor Type | Bourdon Tube |
| Series | 1009 Series |
| Smallest Graduation | 5 psi |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Socket Material Grade | Grade 316 |
| Type | Pressure Gauge |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 9.88 |
| Ship width (cm) | 9.88 |
| Country of Origin | US |
Product Variants
| Model | Lens Material | Socket Material | Case Color | Sensor Material | Nominal Dial Size | Pressure Type | Primary Pressure | Dry Dampening Feature | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 351009SW02LXLL 200# | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 3 1/2" | Pressure | 0 psi to 200 psi | Plus Performance | €201.03 | |
| 351009SW02LXLL 3000# | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 3 1/2" | Pressure | 0 psi to 3000 psi | Plus Performance | €221.57 | |
| 351009SW02LXLLVAC | Polycarbonate | 316L Stainless Steel | Metallic | 316L Stainless Steel | 3 1/2" | Vacuum | 0 psi to 30 psi | Plus Performance | €201.03 | |
| 351009SW02LXLLV/30 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 3 1/2" | Compound | 0 psi to 30 psi | Plus Performance | €201.03 | |
| 351009SW02LXLL15 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 3 1/2" | Pressure | 0 psi to 15 psi | Plus Performance | €201.03 | |
| 351009SW02LXLL5000 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 3 1/2" | Pressure | 0 psi to 5000 psi | Plus Performance | €221.57 | |
| 351009SW02LXLL30 | Polycarbonate | 316L Stainless Steel | Silver | 316L Stainless Steel | 3 1/2" | Pressure | 0 psi to 30 psi | Plus Performance | €201.03 |
