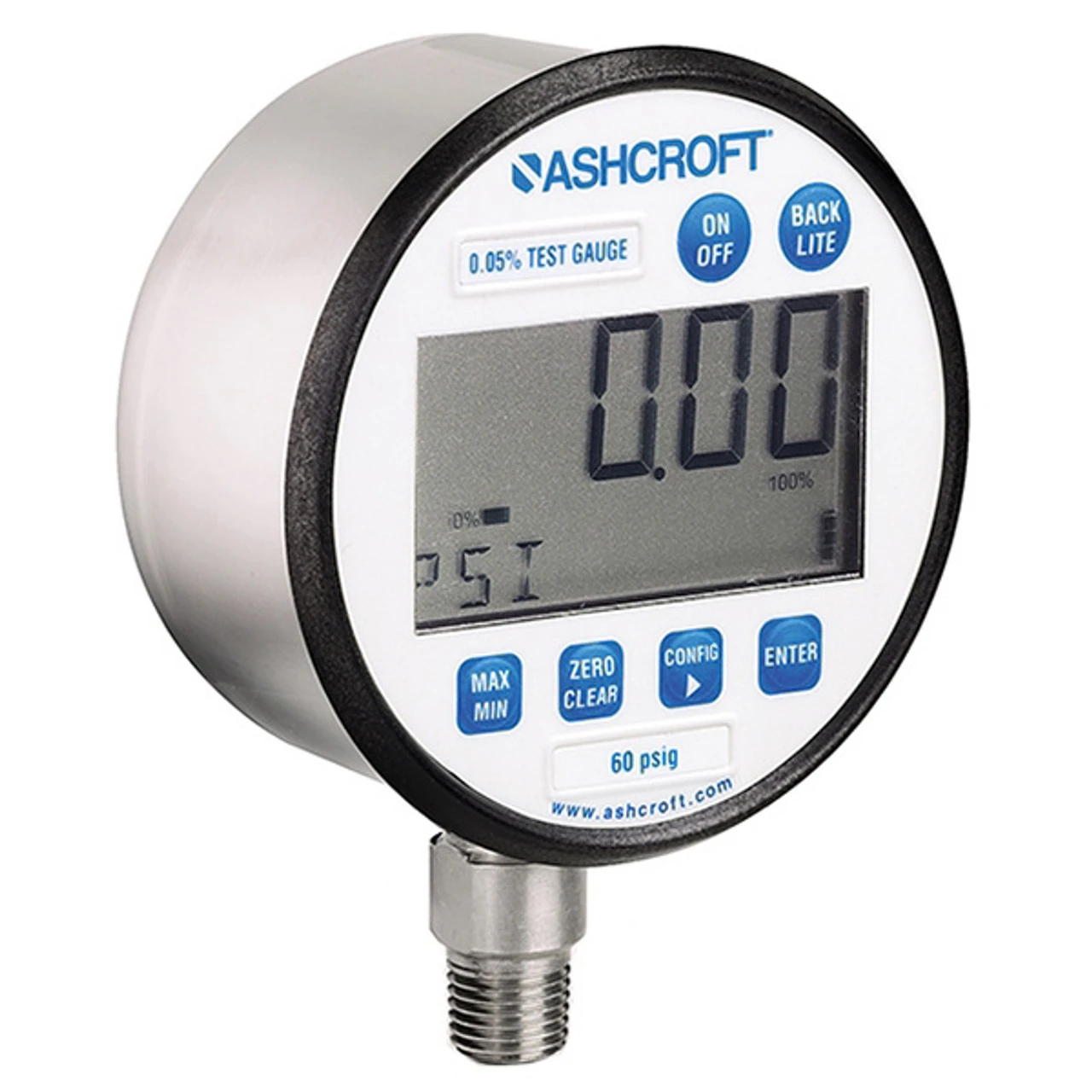

ASHCROFT 302089SD02L30# Digital Test Pressure Gauge, Calibrator Pressure Gauge, 0 to 30 PSI, Included, Bottom
Item: AB8YFYModel: 302089SD02L30#Cross Ref: 2AFY3
7 In Stock
Ships within 2 days via
10.00% off
€1,316.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Pressure Gauge |
| Accuracy | -0.05% to +0.05% |
| Adjustable Set Points | Yes |
| Application | Laboratory, Test And Measurement |
| Auto Shutoff | Yes |
| Auto-shutoff Time | 2 min., 5 min., 15 min., 30 min. |
| Backlit Screen | Yes |
| Bar Graph | 10 Segments |
| Basic Gauge Case Material | Metal |
| Battery Included | Yes |
| Battery Run Time | 1000 hrs. |
| Battery Type | (3) AAA Batteries |
| Blowout Safety Back | No |
| Burst Pressure | 90 psi |
| Calibration Certificate | NIST |
| Case Color | Gray |
| Case Depth | 1.7" |
| Case Dia. | 3 1/4" |
| Case Diameter | 3.25" |
| Case Finish | Tumble Polished |
| Case Material | Stainless Steel |
| Case Shape | Round |
| Connection Location | Bottom |
| Data Update Frequency | 100 ms, 200 ms, 500 ms, 1 sec. |
| Dial Size | 3" |
| Digit Height | 0.66" |
| Digital Pressure And Vacuum Gauge Type | Digital Pressure Gauge |
| Display Range | 0 psi to 30 psi |
| Display Screen Type | LCD |
| Display Units | Bar, Cm Wc, Ft Sea Water, In Hg, In Wc, Kpa, Mbar, Mm Hg, Mm Wc, Mpa, Psi |
| Gauge Case Material | Stainless Steel |
| Gauge Case Material Grade | Grade 304 |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3" |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Grade | Grade 316 |
| Hazardous Location Rating | Not Rated |
| Includes | Stainless Steel Cover |
| Includes Calibration Certificate | 10 NIST Traceable Chart |
| Includes Mounting Hardware | No |
| Includes Rubber Boot | No |
| Ip/nema Rating | Nema Ip65 |
| Languages | Dutch, English, French, German, Italian, Portuguese, Spanish |
| Lens Material | Polyester |
| Low-battery Indicator | Yes |
| Manufacturer Warranty Length | 1 yr. |
| Material Grade | Grade 316 |
| Memory Features | Min/Max |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 3" |
| Non-sparking | No |
| Number Of Digits | 5 |
| Number Of Display Digits | 5 |
| Operating Temp. Range | 0°F to +150°F |
| Panel-mountable | No |
| Peak Hold | No |
| Power Source | Battery |
| Powered By | (2) AA Batteries |
| Pressure Gauge Type | Test Pressure Gauge |
| Pressure Range | 0 psi to 30 psi |
| Pressure Range Type | Pressure |
| Primary Range | 0 to 30 |
| Primary Units | Psi |
| Process Connection | 1/4" NPT Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | 0°F to 150°F |
| Range | 0 psi to 30 psi |
| Resolution | Dependent On Display Units Selected |
| Sensor Material | 316 Stainless Steel |
| Sensor Type | Silicone Mems |
| Series | 2089 Series |
| Socket Material | 316 Stainless Steel |
| Test Pressure Gauge Type | Calibrator Pressure Gauge |
| Weatherproof | Yes |
| Wetted Parts Material | Stainless Steel |
| With Calibration Certificate | With Calibration Certificate |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
| HS code | 9026208000 |
| Country of Origin | US |
Product Variants
| Model | Nominal Dial Size | Case Color | Case Material | Accuracy | Dial Size | Includes Rubber Boot | Range | Powered By | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 302089SD02L60# | 3" | Gray | Stainless Steel | -0.05% to +0.05% | 3" | No | 0 psi to 60 psi | (2) AA Batteries | €1,462.24 | |
| 302089SD02L100# | 3" | Gray | Stainless Steel | -0.05% to +0.05% | 3" | No | 0 psi to 100 psi | (2) AA Batteries | €1,462.24 | |
| 302089SD02L300# | 3" | Gray | Stainless Steel | -0.05% to +0.05% | 3" | No | 0 psi to 300 psi | (2) AA Batteries | €1,462.24 | |
| 302089SD02L600# | 3" | Gray | Stainless Steel | -0.05% to +0.05% | 3" | No | 0 psi to 600 psi | (2) AA Batteries | €1,462.24 | |
| 302089SD02L1000# | 3" | Gray | Stainless Steel | -0.05% to +0.05% | 3" | No | 0 psi to 1000 psi | (2) AA Batteries | €1,462.24 | |
| 302074SD02L30BL | 3" | Gray | Stainless Steel | -0.25% to +0.25% | 3" | Yes | 0 psi to 30 psi | (2) AA Batteries | €583.94 | |
| 302074SD02L100BL | 3" | Gray | Stainless Steel | -0.25% to +0.25% | 3" | Yes | 0 psi to 100 psi | (2) AA Batteries | €583.94 |
