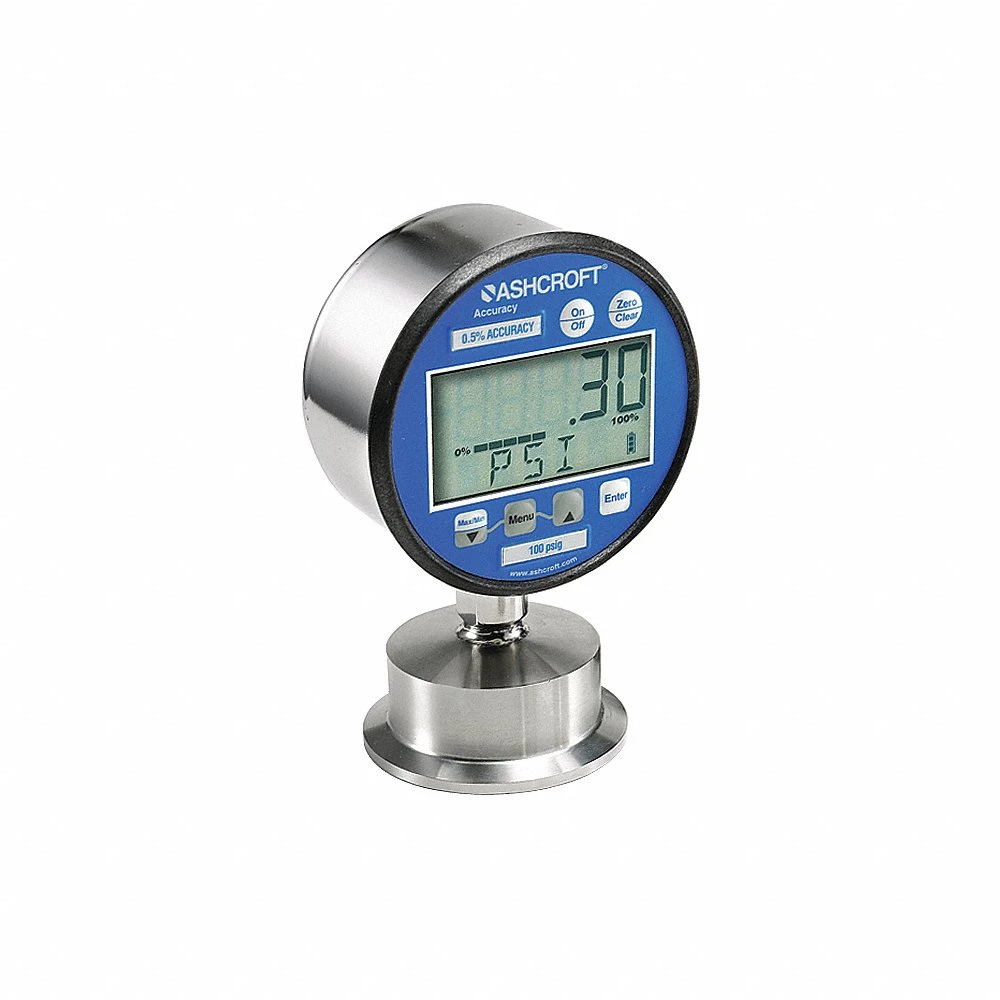

ASHCROFT 302032SD20LXBLCYLM100# Digital Pressure Gauge, 0 To 100 PSI, 3 Inch Dial, 2 Inch Tri-Clamp, +/-0.25% Accuracy
Item: CN8XLNModel: 302032SD20LXBLCYLM100#Cross Ref: 488W51
7 In Stock
Ships within 2 days via
10.00% off
€1,056.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Pressure Gauge |
| Accuracy | -0.25% to +0.25% |
| Ambient Operating Temperature Range | -14°F to +140°F |
| Auto Shutoff | Yes |
| Backlit Screen | Yes |
| Bar Graph | 10 Segments |
| Battery Included | Yes |
| Battery Run Time | 400 hrs. |
| Battery Type | AA Batteries |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Silver |
| Case Construction | 304 Stainless Steel |
| Case Depth | 1 18/25" |
| Case Dia. | 3.33" |
| Case Finish | Electropolished/Tumbled |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Compatible Process Media | Dairy, Food, Pharmaceuticals |
| Diaphragm Seal Fill | Glycerin |
| Diaphragm Seal Grade | Grade 316L |
| Diaphragm Seal Material | Stainless Steel |
| Digit Height | 3/5" |
| Display Range | -15 psi to 0 psi to 100 psi, 0 in. hg to 160 in. hg, 0 mbar to 2500 mbar, 0 ft. h2o to 300 ft. h2o, 0 mm hg to 3000 mm hg, 0 MPa to 4 MPa, 0 kPa to 400 kPa, 4 Bar |
| Display Screen Type | LCD |
| Display Units | Bar, cm Hg, ft. wc, in. hg, kg/sq. cm, kPa, mm hg, mPa, psi |
| Hazardous Location Rating | Not Rated |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Polyester |
| Low-battery Indicator | No |
| Manufacturer Warranty Length | 1 yr. |
| Memory Features | Min/Max |
| Mounting Type | Direct |
| Nominal Dial Size | 3" |
| Non-sparking | No |
| Number Of Batteries | 2 |
| Number Of Digits | 5 |
| Peak Hold | Yes |
| Power Source | Battery |
| Pressure Gauge Type | Digital Sanitary Pressure Gauge |
| Pressure Range | 0 psi to 100 psi |
| Pressure Range Type | Pressure |
| Process Connection | 2" Tri Clamp |
| Process Connection Location | Bottom |
| Process Connection Type | Tri Clamp |
| Process Temperature Range | -14°F to +275°F |
| Sensor Grade | Grade 316L |
| Sensor Material | Stainless Steel |
| Sensor Type | Diaphragm |
| Series | 2030 Series |
| Socket Material | Stainless Steel |
| Temp. Error | -0.04% to +0.04% |
| Weatherproof | Yes |
| Wetted Materials | Stainless Steel |
| Wetted Parts Grade | Grade 316L |
| Wetted Parts Material | Stainless Steel, 316L Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 4.37 |
| Ship length (cm) | 8.46 |
| Ship width (cm) | 8.46 |
| Country of Origin | US |
Product Variants
| Model | Pressure Range Type | Pressure Range | Accuracy | Power Source | Process Connection Location | Nominal Dial Size | Mounting Type | Peak Hold | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 302132SD20LXBKBLCYC4LM1BR | Pressure | 0 psi to 1 psi | -0.25% to +0.25% | 4 To 20 mA Loop-Powered | Bottom | 3" | Direct | Yes | €1,540.44 | |
| 302232SD15LXBLCYLMU2100# | Pressure | 0 psi to 100 psi | -0.25% to +0.25% | 12 To 36V DC Line-Powered | Bottom | 3" | Direct | Yes | €1,373.89 | |
| 302032SD15LXBLCYLM100# | Pressure | 0 psi to 100 psi | -0.25% to +0.25% | Battery | Bottom | 3" | Direct | Yes | €1,175.68 | |
| 302132SD15LXBKBLCYC4LM15# | Pressure | 0 psi to 15 psi | -0.25% to +0.25% | 4 To 20 mA Loop-Powered | Bottom | 3" | Direct | Yes | €1,451.23 | |
| 302032SD15LXBLCYLM15# | Pressure | 0 psi to 15 psi | -0.25% to +0.25% | Battery | Bottom | 3" | Direct | Yes | €1,175.68 | |
| 302032SD15LXBLCYC4LM15# | Pressure | 0 psi to 15 psi | -0.25% to +0.25% | Battery | Bottom | 3" | Direct | Yes | €1,326.15 | |
| 302032SD20LXBLCYLM15# | Pressure | 0 psi to 15 psi | -0.25% to +0.25% | Battery | Bottom | 3" | Direct | Yes | €1,164.39 |
