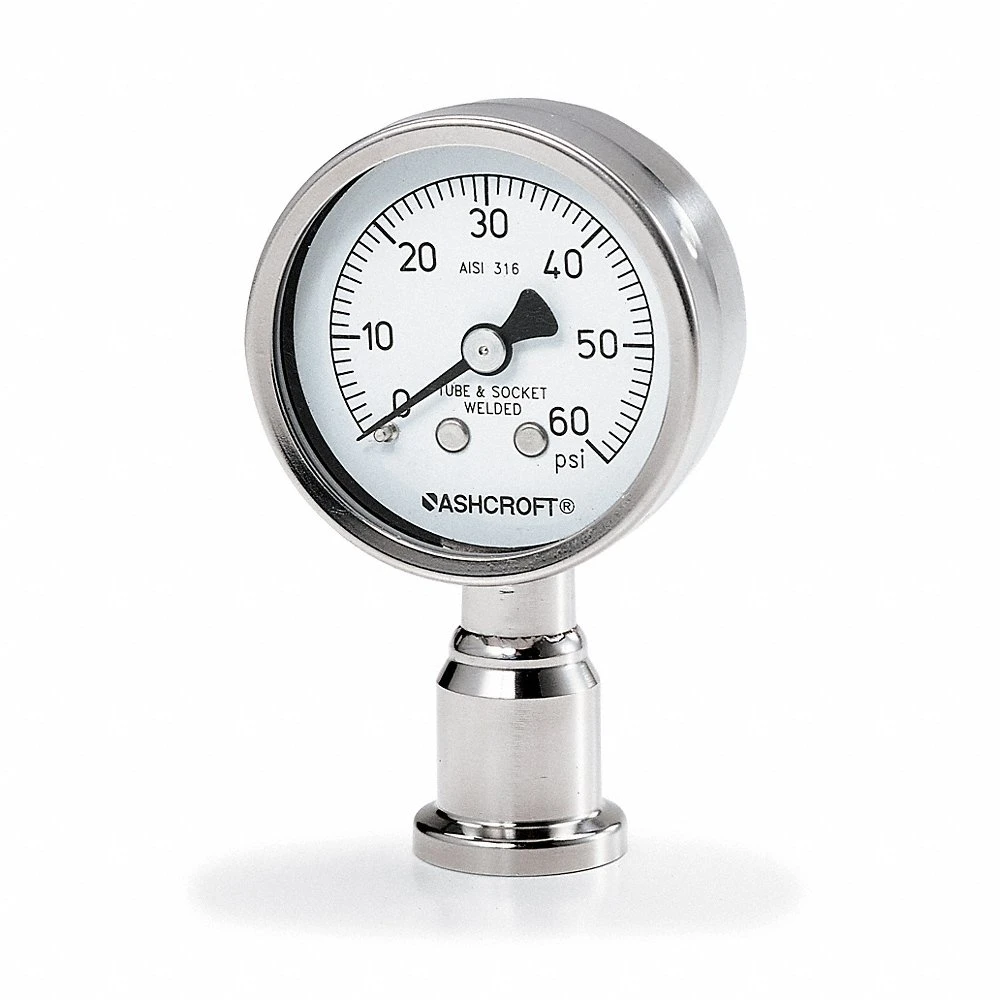

ASHCROFT 201032S75L60# Pressure Gauge, 0 to 60 PSI, 2 Inch Dial, 3/4 Inch Tri-Clamp, Bottom
Item: CN8YHDModel: 201032S75L60#Cross Ref: 787MN3
7 In Stock
Ships within 2 days via
10.00% off
€498.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | ±3%(Upscale), ±5%(Downscale) |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Ambient Temp. Range | -40°F to +150°F |
| Case Color | Stainless Steel |
| Case Grade | Grade 300 |
| Case Material | Stainless Steel |
| Downscale Accuracy | -5% to +5% |
| Hazardous Location Rating | Not Rated |
| Ip Rating, Nema Rating | IP65 |
| Ip/nema Rating | Nema Ip65 |
| Lens Material | Glass |
| Liquid-filled Case | No |
| Mfr. Series | 1032S Series |
| Nominal Dial Size | 2" |
| Pressure Gauge Type | Sanitary Pressure Gauge |
| Pressure Range | 0 psi to 60 psi |
| Pressure Range Type | Pressure |
| Primary Scale Units | Psi |
| Process Connection | 3/4" Tri Clamp |
| Process Connection Location | Bottom |
| Process Connection Size | 3/4" |
| Process Connection Type | Tri Clamp |
| Sensor Grade | Grade 316 |
| Sensor Material | Stainless Steel |
| Socket Grade | Grade 316L |
| Socket Material | Stainless Steel |
| Upscale Accuracy | -3% to +3% |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Model | Pressure Range | Pressure Gauge Type | Pressure Range Type | Process Connection Location | Nominal Dial Size | Case Color | Socket Material | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 201032S75L30IMV&100# | -30 psi to +100 psi | Sanitary Pressure Gauge | Pressure | Bottom | 2" | Stainless Steel | Stainless Steel | ±3%(Upscale), ±5%(Downscale) | €553.94 | |
| 201032S75L100# | 0 psi to 100 psi | Sanitary Pressure Gauge | Pressure | Bottom | 2" | Stainless Steel | Stainless Steel | ±3%(Upscale), ±5%(Downscale) | €553.94 | |
| 201032S75L160# | 0 psi to 160 psi | Sanitary Pressure Gauge | Pressure | Bottom | 2" | Stainless Steel | Stainless Steel | ±3%(Upscale), ±5%(Downscale) | €553.94 | |
| 201032S75L30# | 0 psi to 30 psi | Sanitary Pressure Gauge | Pressure | Bottom | 2" | Stainless Steel | Stainless Steel | ±3%(Upscale), ±5%(Downscale) | €553.94 |
