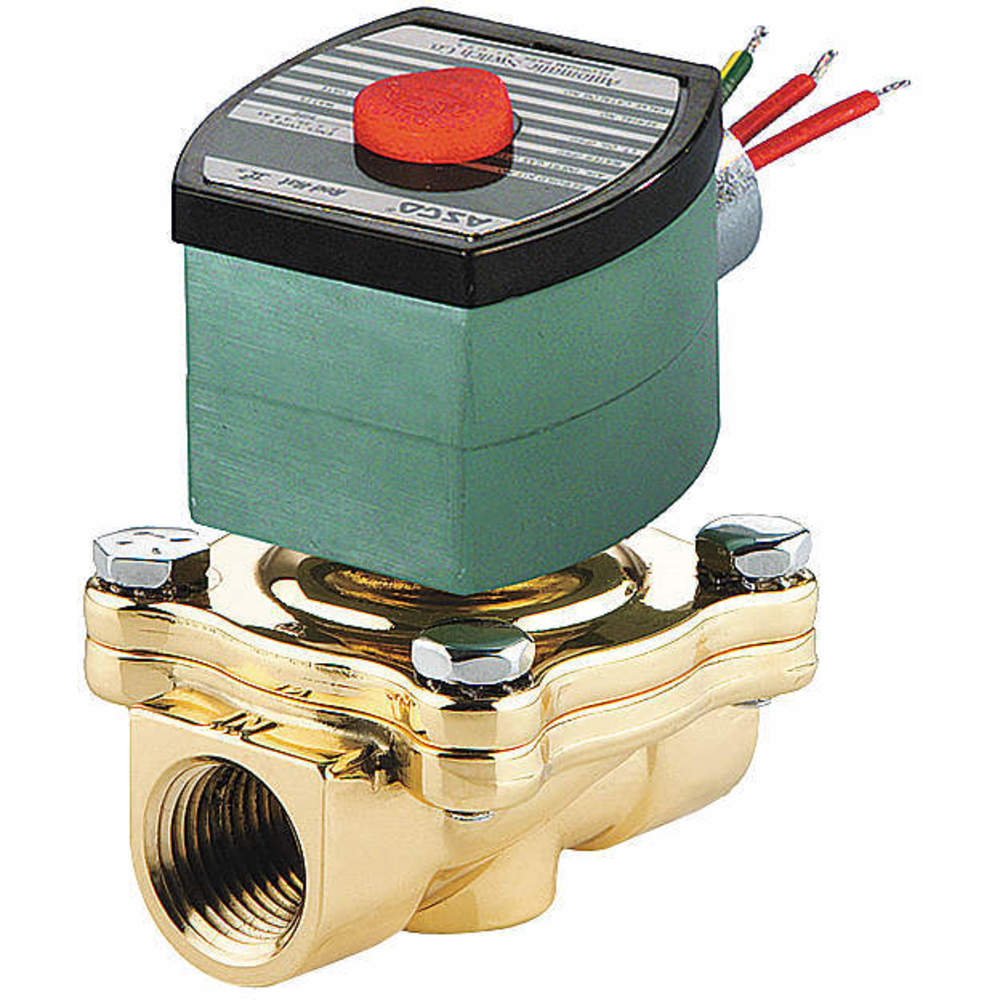

ASCO VALVES 8210D014 Solenoid Valve 2/2 1 Inch No 24v Brass
Item: AD7HRMModel: 8210D014Cross Ref: 4EMF1
7 In Stock
Ships within 2 days via
10.00% off
€1,253.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Valve |
| Application | Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps |
| Body Material | Brass |
| Center Line Pipe Center Size | 5 1/2" |
| Class | Class F |
| Coefficient Of Volume | 13 |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit Hub |
| For Media | Air, Inert Gases, Light Oil, Water |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temp. | 180°F |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 125 psi |
| Max. Operating Pressure Differential Air/inert Gas | 350 psi |
| Max. Operating Pressure Differential Light Oil | 125 psi |
| Max. Operating Pressure Differential Water | 150 psi |
| Media Type | Air, Inert Gas, Light Oil, Water |
| Min. Ambient Temperature | 14°F |
| Min. Operating Pressure Differential | 5 psi |
| Mounting Orientation | Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 1" |
| Operating Environment | Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 1" |
| Outlet Connection Type | NPTF |
| Overall Height | 6 9/16" |
| Overall Length | 3 3/4" |
| Overall Width | 3 3/16" |
| Pipe Size | 1" |
| Response Time | 1 sec. |
| Seal Material | Nbr |
| Valve Configuration | Normally Open |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2 Ways And 2 Positions |
| Voltage | 24V DC |
| Wattage | 16.8 W |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 13.72 |
| Ship length (cm) | 19.56 |
| Ship width (cm) | 13.72 |
| HS code | 8481809005 |
| Country of Origin | MX |
Product Variants
| Product | Model | Valve Ways And Positions | Valve Configuration | Pipe Size | Voltage | Operation | Seal Material | Min. Operating Pressure Differential | Coil Enclosure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

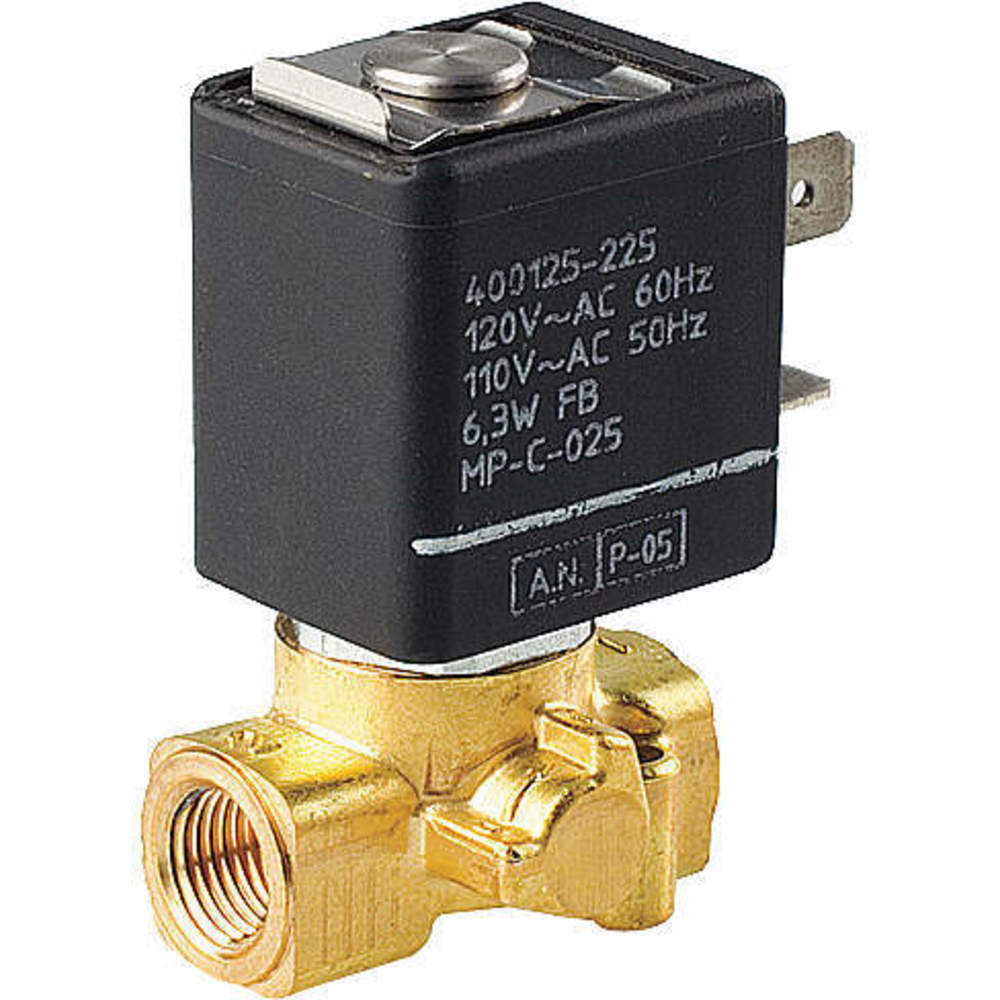

SC8256A004V | 2 Ways And 2 Positions | Normally Closed | 1/8" | 120V AC | Direct Acting | FKM | 0 psi | Watertight No Junction Box | €95.64 | |
 |
U8256A001V | 2 Ways And 2 Positions | Normally Closed | 1/8" | 24-480V AC | Direct Acting | FKM | 0 psi | Open Frame | €92.17 | |
|
U8256A002V | 2 Ways And 2 Positions | Normally Closed | 1/8" | 24V DC | Direct Acting | FKM | 0 psi | Open Frame | €92.17 | |
|
SC8256A002V | 2 Ways And 2 Positions | Normally Closed | 1/8" | 24V DC | Direct Acting | FKM | 0 psi | Watertight No Junction Box | €92.17 | |
 |
8320G001 | 3 Ways And 2 Positions | Configurable | 1/8" | 24V AC | Direct Acting | Nbr | 0 psi | Watertight No Junction Box | - | RFQ
|
 |

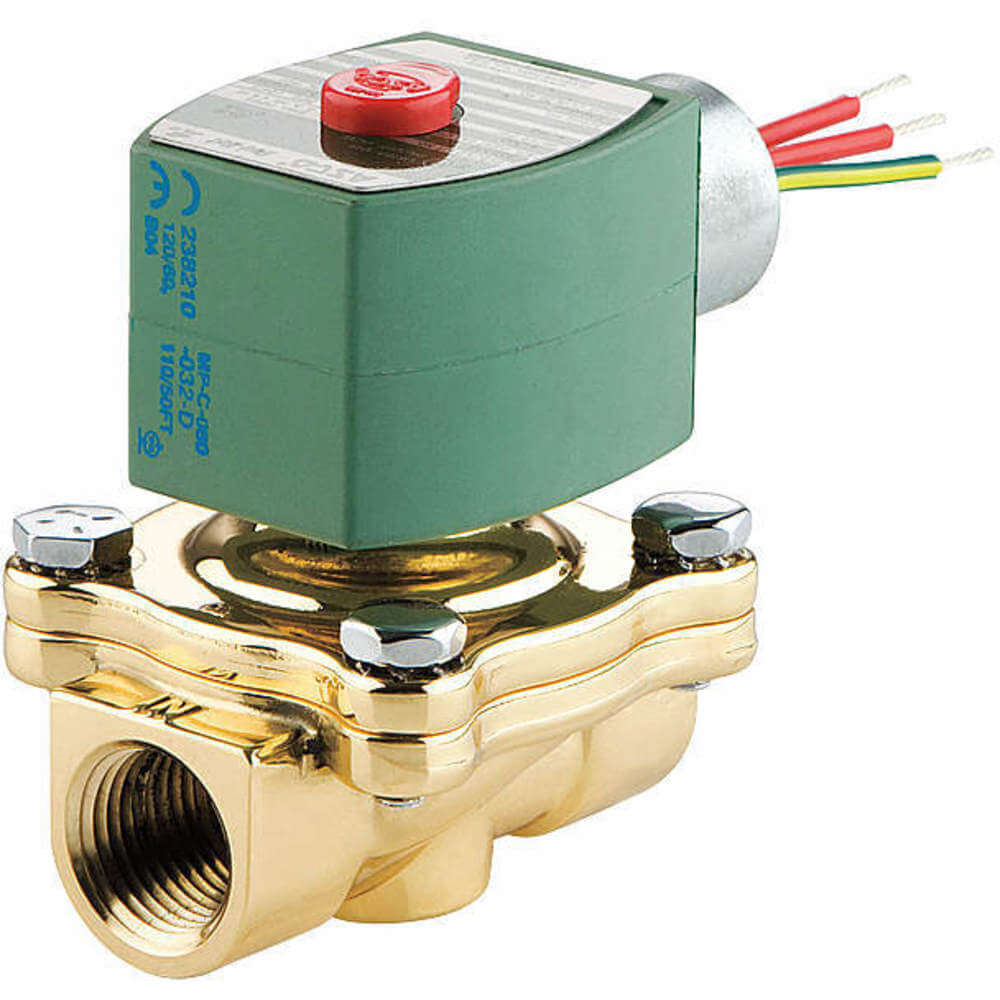

8210B056 | 2 Ways And 2 Positions | Normally Closed | 1 1/2" | 110/120V AC | Pilot Operated | Nbr | 0 psi | Watertight | €1,405.02 |
