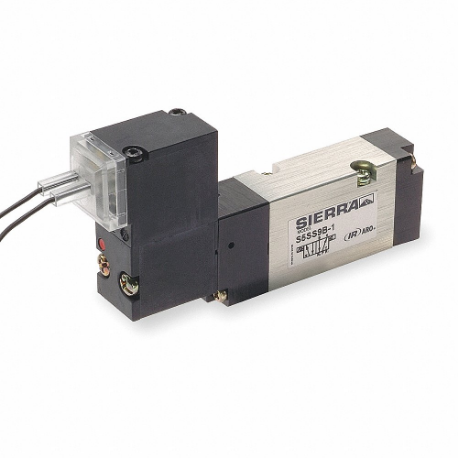

ARO S5SS9B-1 Solenoid Air Control Valve, 24V Dc, 1/8 Inch Pipe Size, 9 Cfm Max. Cfm
Item: CN8VZNModel: S5SS9B-1Cross Ref: 2G621
7 In Stock
Ships within 2 days via
10.00% off
€196.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | 0°F to +122°F |
| Body Features | Stackable |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Coefficient Of Volume | 0.25 |
| Electrical Connection | Lead Wire |
| Electrical Connection Type | Hardwired |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| For Media | Air |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Max. Flow | 9 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Ports | 5 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 115 psi |
| Operating Pressure - Minimum | 22 psi |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | 0°F |
| Operational Pressure Range | 0 psi to 115 psi |
| Overall Height | 1 3/4" |
| Overall Length | 3 5/16" |
| Overall Width | 19/32" |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1/8" |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Power Consumption | 1.9 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 14 ms |
| Return Action | Spring Return |
| Series | SIERRA 15 Series |
| Shifting Technology | Solenoid, Pilot |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Type | Spool |
| Valve Ways And Positions | 4-Way/2-Position |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 8.53 |
| Ship width (cm) | 2.54 |
| Country of Origin | TW |
Product Variants
| Product | Model | Voltage | Override | Body Style | Overall Width | Overall Length | Shifting Technology | Electrical Connection | Actuator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

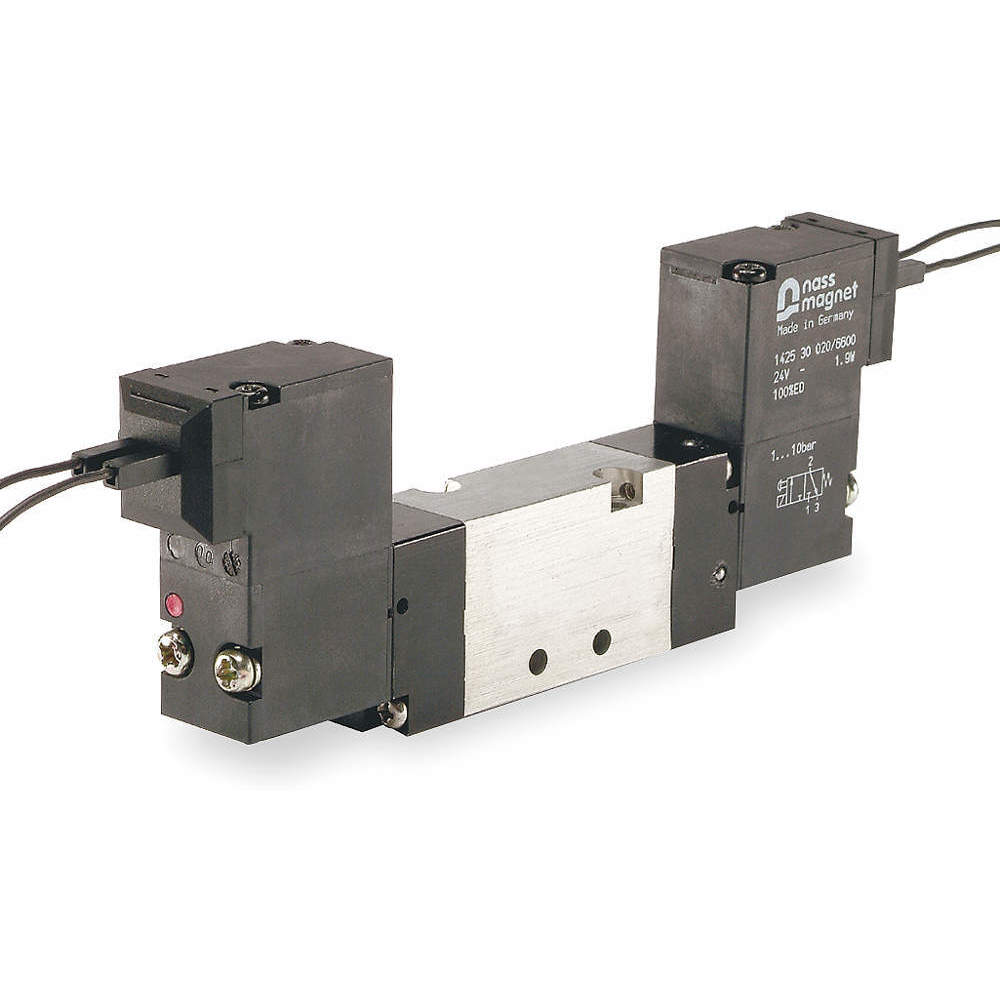

S5DS9B-1-G | 24V DC | Non Locking | Base Mounted | 19/32" | 4 9/16" | Pilot, Solenoid | Lead Wire | Double Solenoid | €328.61 | |
 |

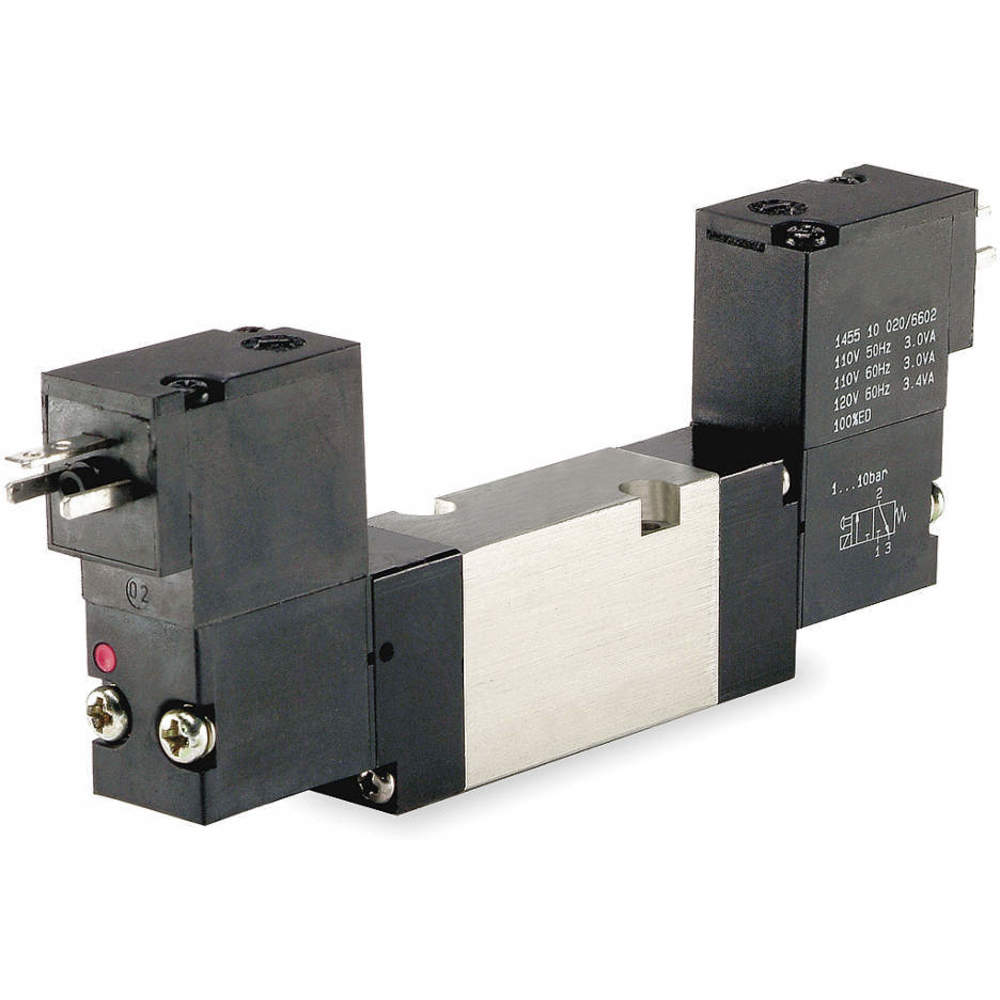

S5DS9C-1-G | 120V AC | Non Locking | Base Mounted | 19/32" | 4 1/8" | Pilot, Solenoid | DIN Connectors | Double Solenoid | €408.64 | |
 |
S5DS9D-1-G | 24V DC | Non Locking | Base Mounted | 19/32" | 4 1/8" | Pilot, Solenoid | DIN Connectors | Double Solenoid | €369.04 | |
 |
S5SS9A-1 | 120V AC | Non Locking | Base Mounted | 19/32" | 3 5/16" | Pilot, Solenoid | Lead Wire | Single Solenoid | €219.61 | |
 |

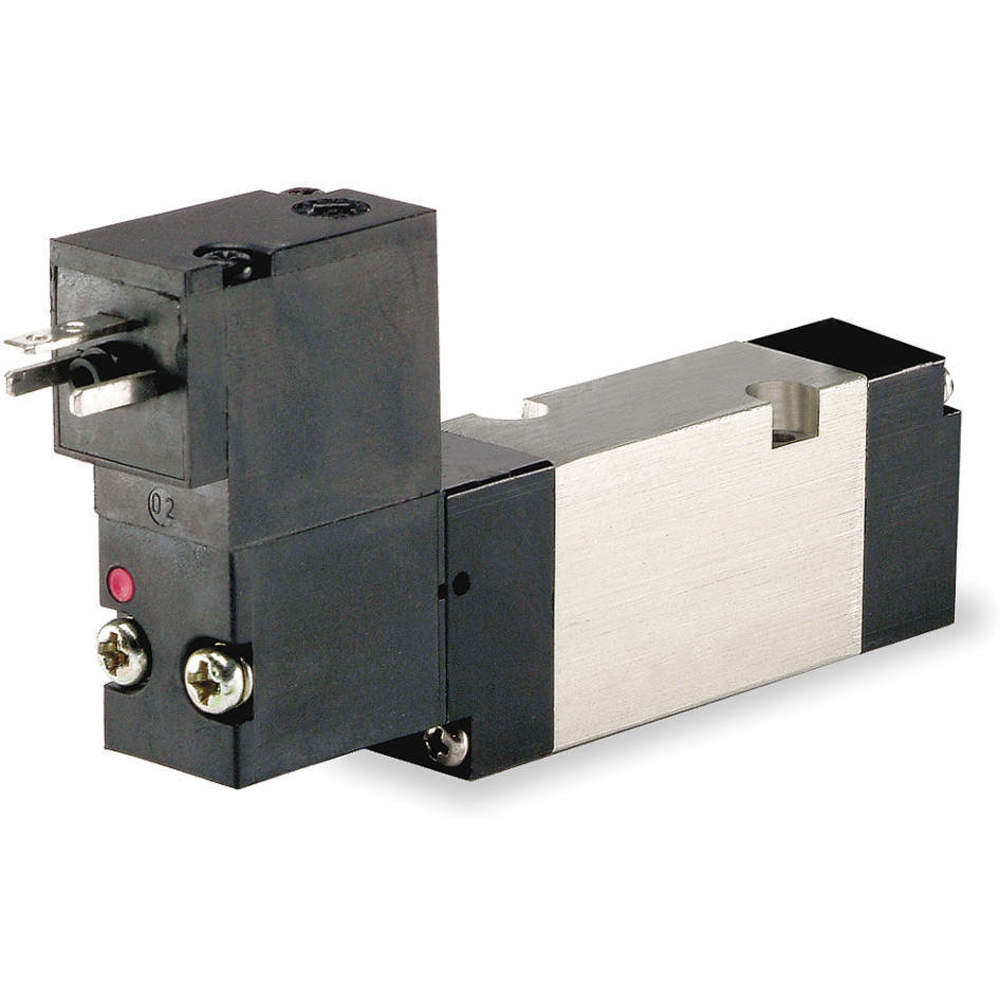

S5SS9C-1 | 120V AC | Non Locking | Base Mounted | 19/32" | 3 1/8" | Pilot, Solenoid | DIN Connectors | Single Solenoid | €242.74 | |
 |

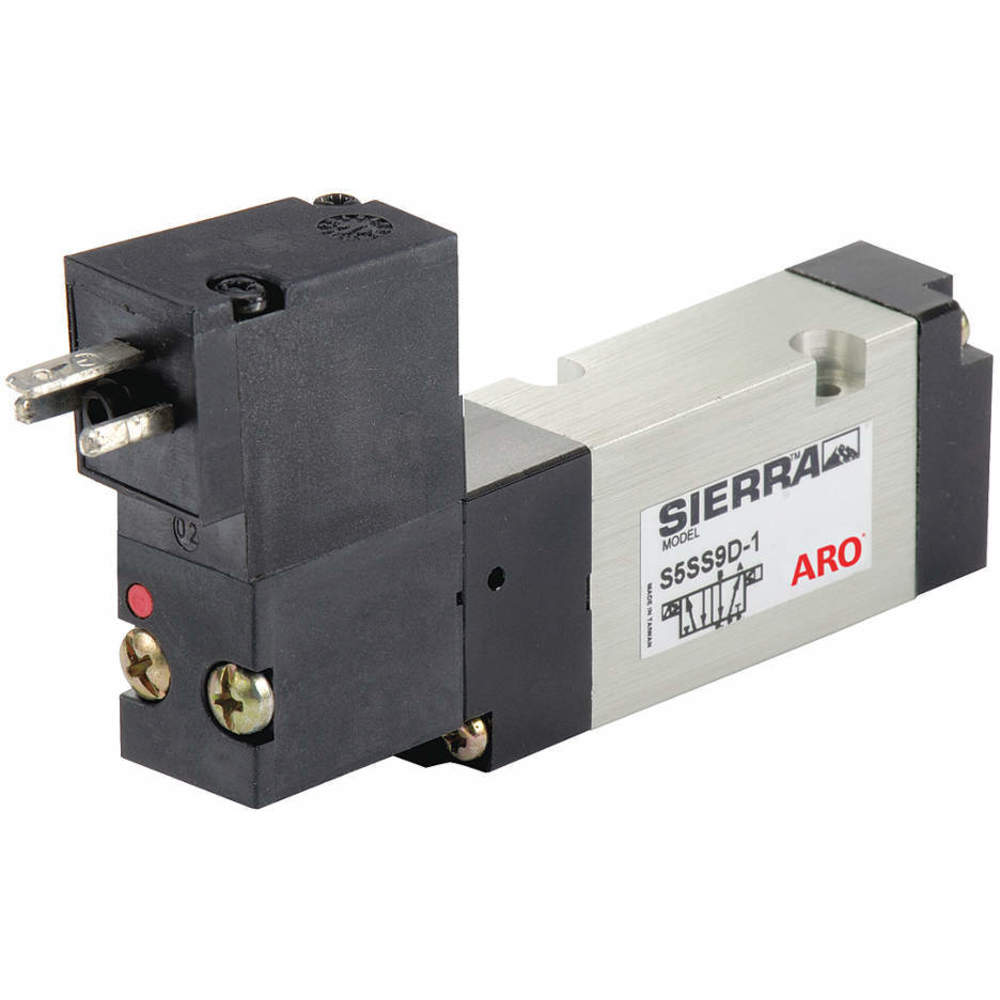

S5SS9D-1 | 24V DC | Non Locking Push | Manifold | 0.594" | 3 1/2" | Pilot, Solenoid | DIN Connectors | - | €242.69 | |
 |
S5DS9A-1 | 120V AC | Non Locking | Base Mounted | 19/32" | 4 9/16" | Solenoid, Pilot | Lead Wire | Double Solenoid | €377.33 |
