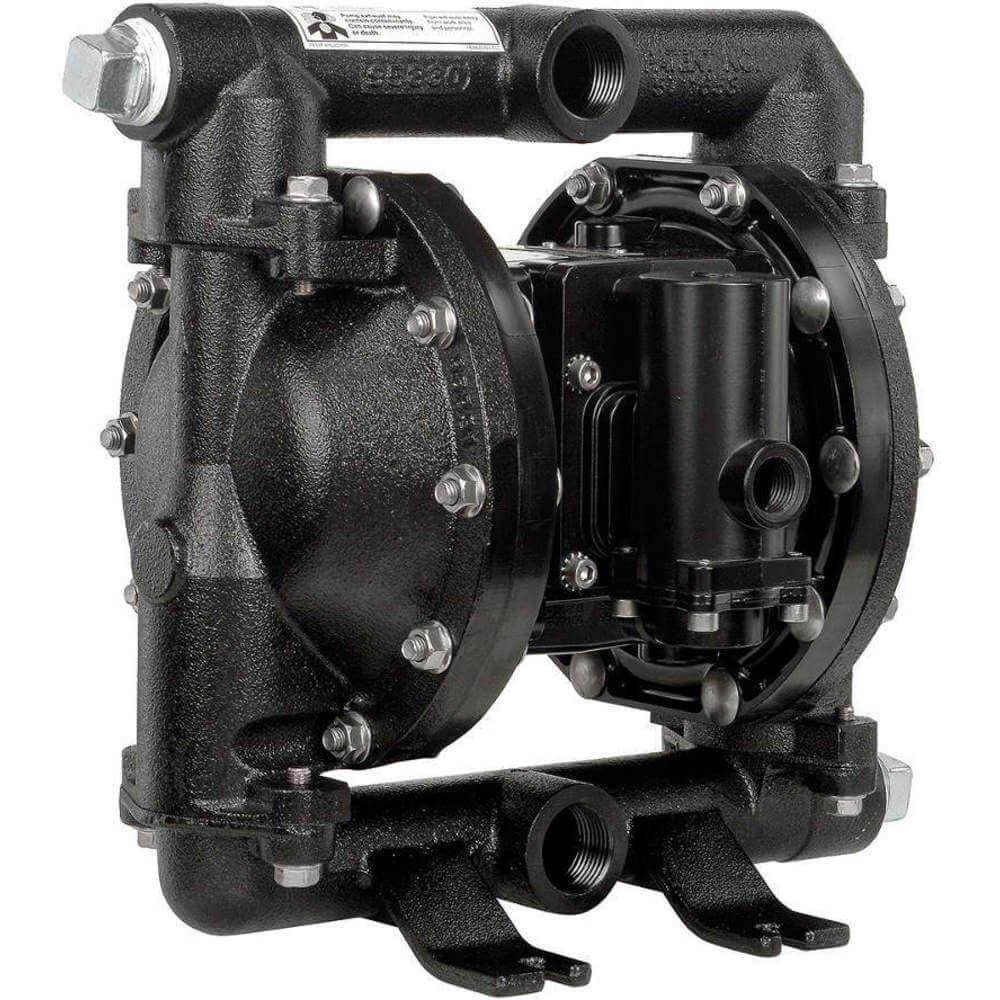

ARO PD10A-ACP-AAA Diaphragm Pump Air Operated Cast-iron
Get it by Thursday, Dec 18
10.00% off
€2,928.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 50 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Ball Material | Santoprene |
| Center Section Material | Aluminum |
| Check Seat Material | Santoprene |
| Compatible Chemicals | Alcohol, Antifreeze, Diesel Exhaust Fluid, Water |
| Connection Size | 1" |
| Connection Type | NPTF |
| Diaphragm Material | Santoprene |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 48 GPM |
| Flow Rate @ 120 Psi | 54.5 GPM |
| Flow Rate @ 40 Psi | 29 GPM |
| Flow Rate @ 50 Psi | 35.8 GPM |
| Flow Rate @ 60 Psi | 39.8 GPM |
| Flow Rate @ 70 Psi | 42.5 GPM |
| Flow Rate @ 80 Psi | 45.25 GPM |
| Flow Rate @ 90 Psi | 46.9 GPM |
| Fluid Intake Connection | 1" Nptf |
| Fluid Outlet Connection | 1" Nptf |
| For Use With Potable Systems | No |
| Housing Material | Cast Iron |
| Inlet Size | 1/4" |
| Manifold Connection | Multi Port |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 52 |
| Max. Flow Rate | 54.5 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 0.13" |
| Max. Viscosity | 40000 cPS |
| Media Discharge Location | Center, Side |
| Media Intake Location | Center, Side |
| Min. Media Temp. | -40°F |
| Mounting Hardware Material | Steel |
| Npshr | 38 ft. |
| Operation Type | Air Operated |
| Overall Height | 12 2/5" |
| Overall Length | 12.3" |
| Overall Width | 11" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 120 psi |
| Self Priming | Yes |
| Self Priming Dry | 19 ft. |
| Self-priming Dry | 19 ft. |
| Series | PX10X Series |
| Series Family | Exp |
| Standards | Ce, Reach, Rohs |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 20.87 |
| Ship height (cm) | 31.5 |
| Ship length (cm) | 31.24 |
| Ship width (cm) | 27.94 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Diaphragm Material | Max. Media Temp. | Check Seat Material | Valve Material | Flow Rate @ 40 Psi | Flow Rate @ 70 Psi | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD10A-AAP-AAA | Aluminum | 54.5 GPM | Santoprene | 225°F | Santoprene | Santoprene | 29 GPM | 42.5 GPM | €2,716.11 | |
|
PD10A-AAP-FTT | Aluminum | 54.5 GPM | PTFE | 225°F | Aluminum | PTFE | 29 GPM | 42.5 GPM | €3,500.09 | |
|
PD10A-AAP-GGG | Aluminum | 54.5 GPM | Buna N | 180°F | Buna N | Buna N | 29 GPM | 42.5 GPM | €2,656.98 | |
 |
PD10A-ASS-AAA | Stainless Steel | 52 GPM | Santoprene | 225°F | Polypropylene | Santoprene | 0 GPM | 0 GPM | €6,903.76 | |
|
PD10A-ASS-STT | Stainless Steel | 54.5 GPM | PTFE | 225°F | Stainless Steel | PTFE | 29 GPM | 42.5 GPM | €6,216.30 | |
 |
PD10A-AAP-CCC | Cast Iron | 54.5 GPM | Hytrel | 180°F | Hytrel | - | 29 GPM | 42.5 GPM | €3,548.73 | |
 |
PD10A-AAS-CCC | Aluminum | 52 GPM | Hytrel | 150°F | - | - | - | - | €4,202.76 |
