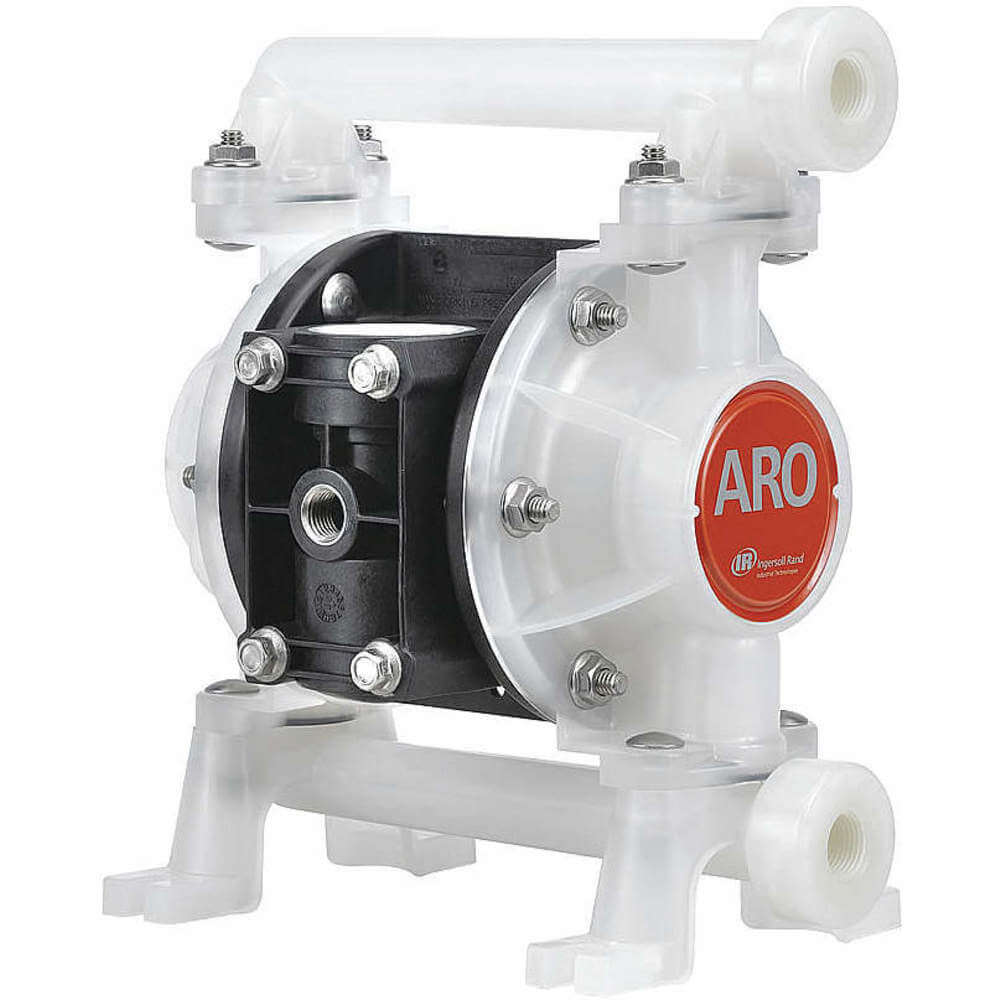

ARO PD03P-ALS-KAA Double Diaphragm Pump Air Operated 200f
Item: AB9DHLModel: PD03P-ALS-KAACross Ref: 2CAU9
7 In Stock
Ships within 2 days via
10.00% off
€1,291.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 18 SCFM |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Ball Material | Santoprene |
| Center Section Material | Plastic |
| Check Seat Material | PVDF |
| Compatible Chemicals | Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water |
| Connection Size | 3/8" |
| Connection Type | NPTF |
| Diaphragm Material | Santoprene |
| Flow Rate @ 100 Psi | 11 GPM |
| Flow Rate @ 40 Psi | 8 GPM |
| Flow Rate @ 50 Psi | 9 GPM |
| Flow Rate @ 60 Psi | 9.5 GPM |
| Flow Rate @ 70 Psi | 10 GPM |
| Flow Rate @ 80 Psi | 10.5 GPM |
| Flow Rate @ 90 Psi | 10.8 GPM |
| Fluid Intake Connection | 3/8" |
| Fluid Intake Connection Type | NPT |
| Fluid Outlet Connection | 3/8" Nptf |
| For Use With Potable Systems | No |
| Housing Material | PVDF |
| Inlet Size | 1/4" |
| Manifold Connection | Multiport |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Gpm | 10.6 |
| Max. Flow Rate | 11 GPM |
| Max. Head | 230 ft. |
| Max. Media Temp. | 225°F |
| Max. Operating Pressure | 100 psi |
| Max. Solid Dia. | 0.06" |
| Max. Viscosity | 500 cPS |
| Media Intake Location | Center, Side |
| Min. Media Temp. | -40°F |
| Mounting Hardware Material | Stainless Steel |
| Operation Type | Air Operated |
| Overall Height | 9 1/5" |
| Overall Length | 7.9" |
| Overall Width | 5.7" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Self Priming Dry | 8.5 ft. |
| Self-priming Dry | 8.5 ft. |
| Series | PD03P Series |
| Series Family | Compact |
| Valve Material | Santoprene |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 2.87 |
| Ship height (cm) | 23.37 |
| Ship length (cm) | 20.07 |
| Ship width (cm) | 14.48 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Model | Housing Material | Diaphragm Material | Valve Material | Check Seat Material | Max. Media Temp. | Max. Solid Dia. | Min. Media Temp. | Ball Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PD03P-ARS-PAA | Polypropylene | Santoprene | Santoprene | Polypropylene | 225°F | 0.06" | -40°F | Santoprene | €852.80 | |
| PD03P-ADS-DTT | Acetal | PTFE | PTFE | Acetal | 225°F | 0.06" | 40°F | PTFE | €1,364.59 | |
| PD03P-AES-DTT | Acetal | PTFE | PTFE | Acetal | 225°F | - | 40°F | PTFE | €1,414.66 | |
| PD03P-ADS-DCC | Acetal | Hytrel | Hytrel | Acetal | 180°F | 0.06" | -20°F | Hytrel | €1,188.25 | |
| PD03P-AES-DCC | Acetal | Hytrel | Hytrel | Acetal | 180°F | 0.06" | -20°F | Hytrel | €1,370.63 | |
| PD03P-AKS-KTT | PVDF | PTFE | PTFE | PVDF | 225°F | 0.06" | 40°F | PTFE | €1,727.78 | |
| PD03P-ALS-KTT | PVDF | PTFE | PTFE | PVDF | 225°F | 0.06" | 40°F | PTFE | €1,671.96 |
