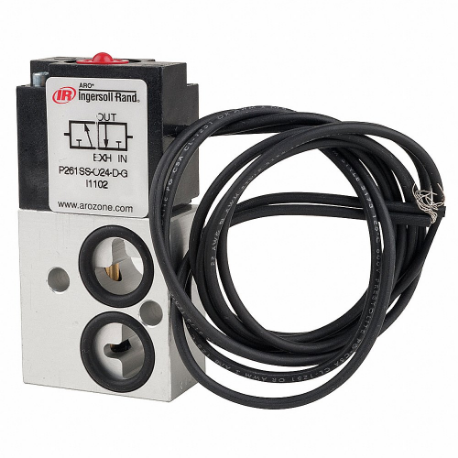

ARO P261SS-024-D Solenoid Air Control Valve, 24V Dc, 1/8 Inch Size Pipe Size, 0 To 120 Psi
Item: CN8VZHModel: P261SS-024-DCross Ref: 6JJ56
7 In Stock
Ships within 2 days via
10.00% off
€196.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. Range | +32°F to +125°F |
| Body Features | Stackable |
| Body Material | Aluminum |
| Body Style | Base Mounted |
| Coefficient Of Volume | 0.144 |
| Electrical Connection | Lead Wire |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/4" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Closed |
| For Media | Air, Inert Gas |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Lubrication | Pre-Lubricated |
| Max. Flow | 6.9 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Maximum | 125 psi |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 125°F |
| Operating Temperature - Minimum | 32°F |
| Operational Pressure Range | 0 psi to 120 psi |
| Overall Height | 2 3/4" |
| Overall Length | 1 3/8" |
| Overall Width | 1" |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 0.125 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Poppet Material | Stainless Steel |
| Power Consumption | 4.5 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 0.012 ms |
| Return Action | Spring Return |
| Return Time | 20 ms |
| Seal Material | Acetal |
| Series | PREMAIR Series |
| Shifting Technology | Direct |
| Vacuum Rating | Not Vacuum Operable |
| Valve Action | Normally Open/Normally Closed |
| Valve Type | Poppet |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Body Style | Overall Length | Override | Overall Height | Coefficient Of Volume | Overall Width | Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

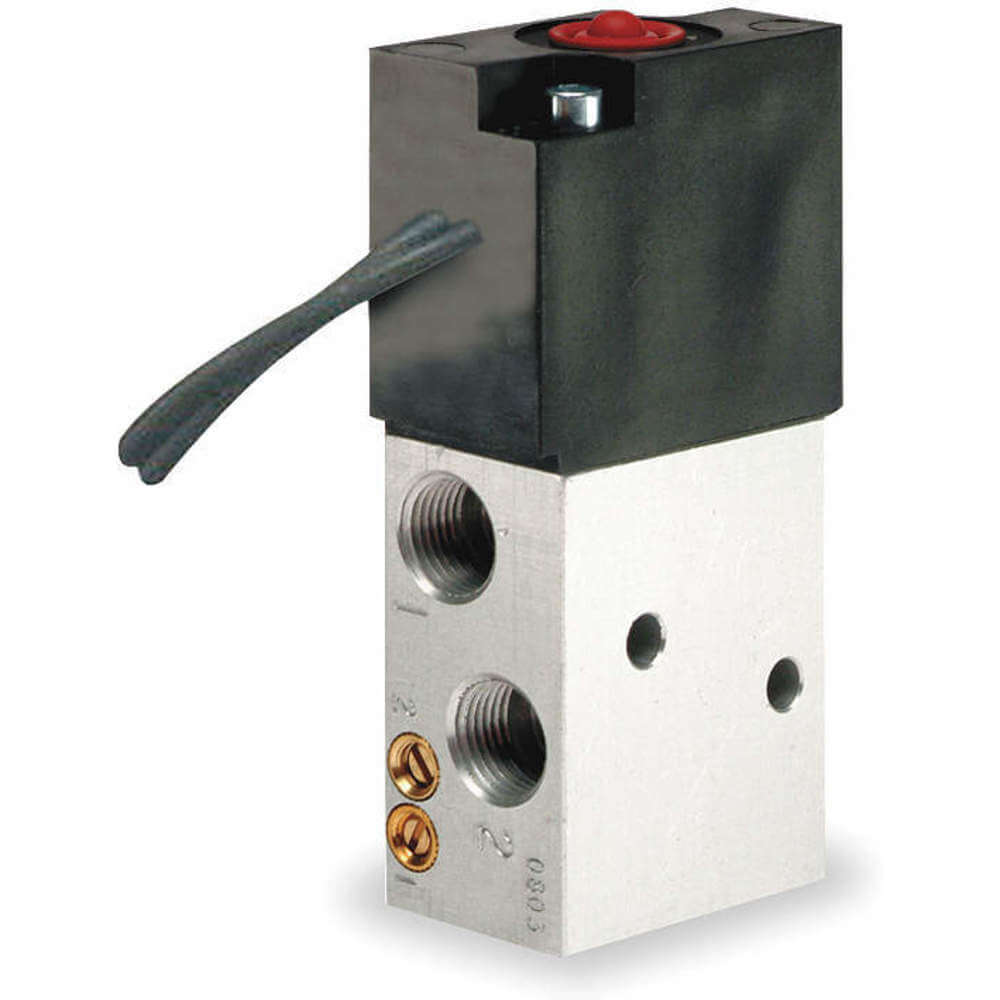

P211SC-120-A | 120V AC | Body Ported | 1 1/4" | Non-Locking | 2 3/4" | 0.144 | 1" | 1/8" | €347.76 | |
 |

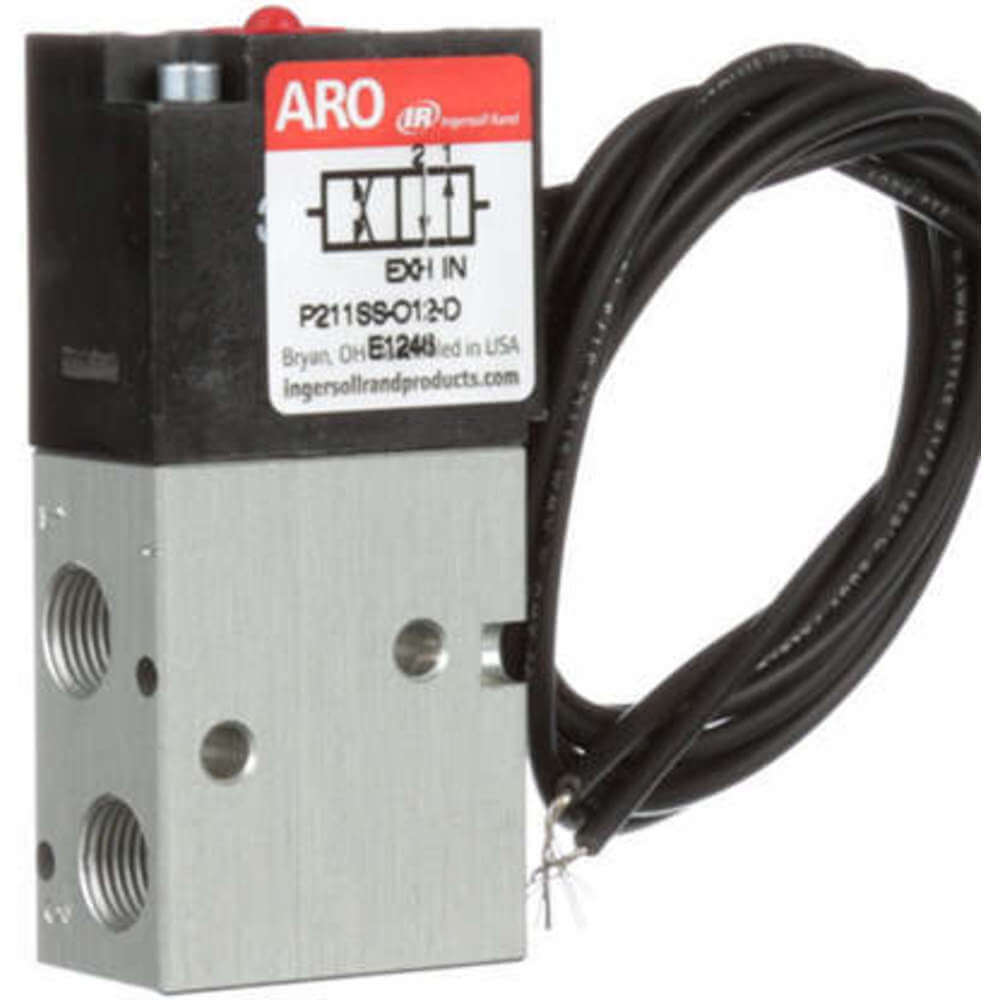

P211SS-012-D | 12V DC | Body Ported | 1 1/4" | Non-Locking | 2 3/4" | 0.144 | 1" | 1/8" | €252.52 | |
 |

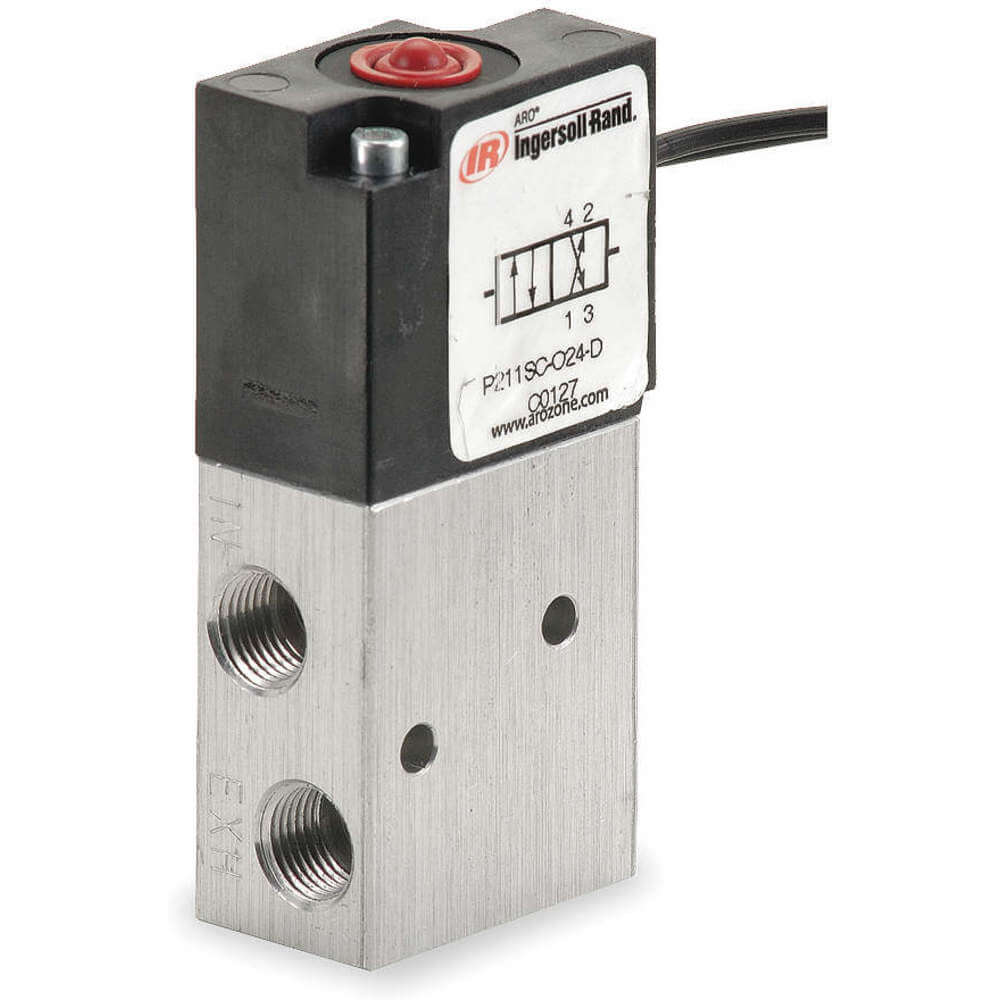

P211SS-120-A | 120V AC | Body Ported | 1 1/4" | Non-Locking | 2 3/4" | 0.144 | 1" | 1/8" | €284.73 | |
 |

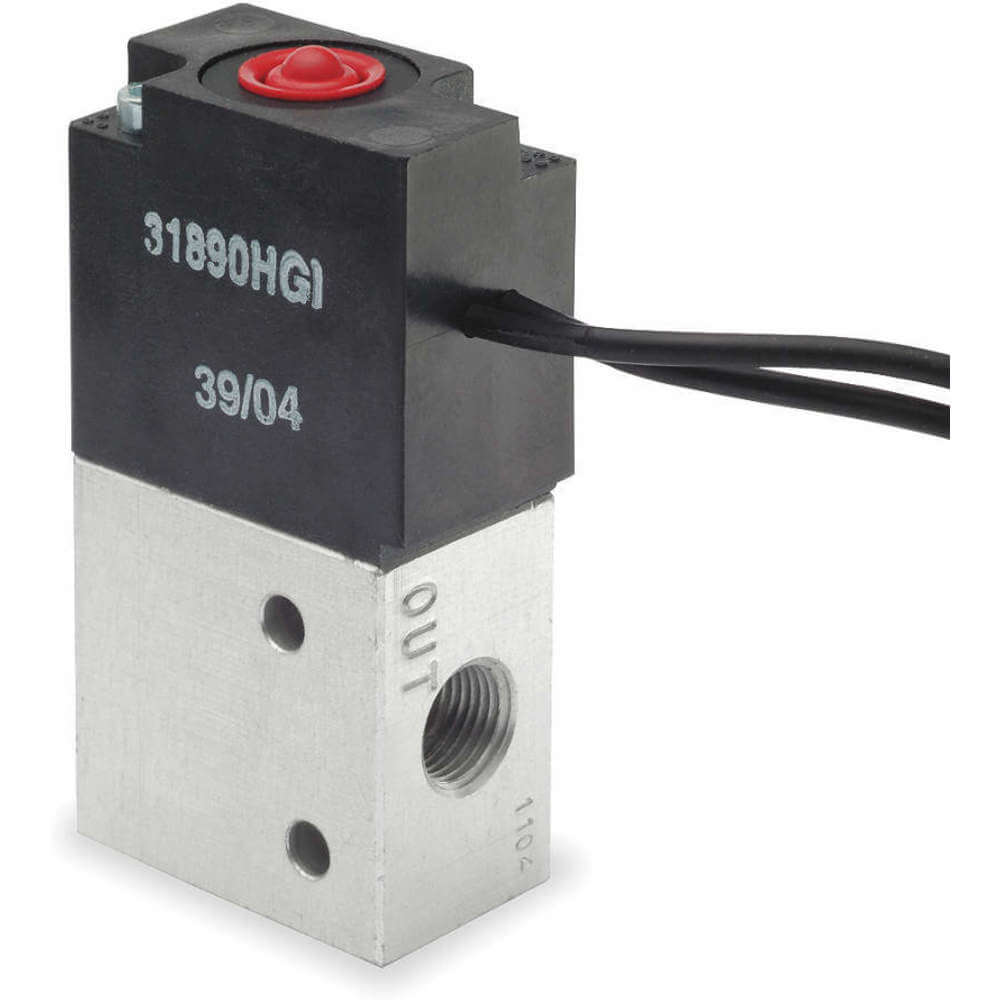

P251SS-012-D | 12V DC | Body Ported | 1 1/4" | - | - | 0.144 | 1" | 1/8" | €180.01 | |
 |
P251SS-120-A | 120V AC | Body Ported | 1 1/4" | Non-Locking | 2 1/2" | 0.144 | 1" | 1/8" | €204.67 | |
 |

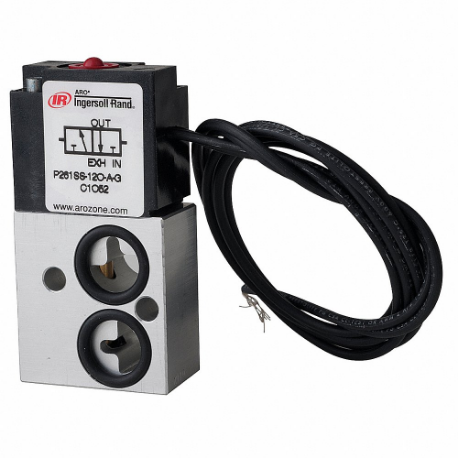

P261SS-120-A | 120V AC | Base Mounted | 1 3/8" | Non Locking | 2 3/4" | 0.144 | 1" | 1/8" | €247.20 | |
 |

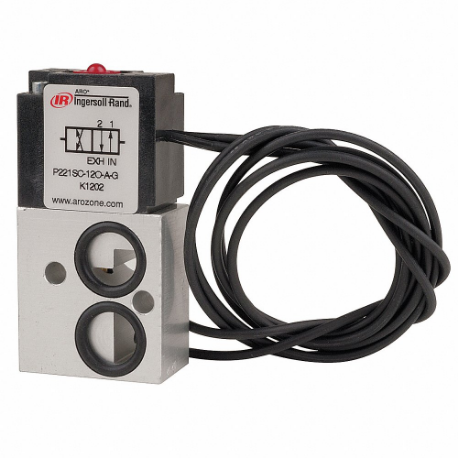

P221SC-120-A | 120V AC | Base Mounted | 1 1/4" | Non Locking | 2 3/4" | 0.144 | 1" | 1/8" | €385.45 |
