ARO P211SS-012-D Solenoid Air Control Valve 1/8 Inch 12vdc
Item: AE9FZGModel: P211SS-012-DCross Ref: 6JJ43
7 In Stock
Ships within 2 days via
5.00% off
€239.90 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Single Solenoid |
| Actuator/return | Solenoid/Spring |
| Ambient Temp. | +32°F to +125°F |
| Body Features | Single |
| Body Material | Aluminum |
| Body Style | Body Ported |
| Cfm | 6.9 CFM |
| Coefficient Of Volume | 0.144 |
| Electrical Connection | Lead Wire |
| Electrical Connection Type | Hardwired |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 1/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| For Media | Air, Inert Gas |
| Included Mounting Hardware | Mounting Hardware Not Included |
| Included Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | NPT |
| Max. Flow Rate | 6.9 CFM |
| Max. Operating Pressure | 125 psi |
| Max. Operating Temp. | 125°F |
| Min. Operating Temp. | 32°F |
| Nema Class | NEMA 4 |
| Nema Rating | 4 |
| No. Of Positions | 2 |
| No. Of Ways | 4 |
| Overall Height | 2 3/4" |
| Overall Length | 1 1/4" |
| Overall Width | 1" |
| Override | Non-Locking Manual |
| Override | Non Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 0.125 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 1/8" |
| Poppet Material | Stainless Steel |
| Power Consumption | 4.5 W |
| Pressure | 0 psi to 120 psi |
| Pressure Rating | 0 psi to 120 psi |
| Product Type | Solenoid Air Control Valve |
| Response Time | 20 ms |
| Return Action | Spring Return |
| Series | PREMAIR Series |
| Shifting Technology | Direct |
| Vacuum | Not Vacuum Operable |
| Valve Action | Normally Open |
| Valve Type | Poppet |
| Voltage | 12V DC |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.54 |
| HS code | 8481809005 |
| Country of Origin | US |
Product Variants
| Product | Model | Voltage | Overall Height | Electrical Connection Type | Body Style | Vacuum | Override | Pilot Port Connection Size | Exhaust Port Connection Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
P211SC-120-A | 120V AC | 2 3/4" | Hardwired | Body Ported | Not Vacuum Operable | Non Locking | 1/8 | 1/8" | €347.76 | |
 |
P211SS-120-A | 120V AC | 2 3/4" | Hardwired | Body Ported | Not Vacuum Operable | Non Locking | 1/8 | 1/8" | €284.73 | |
 |
P251SS-012-D | 12V DC | - | - | Body Ported | - | - | - | - | €160.12 | |
 |
P251SS-120-A | 120V AC | 2 1/2" | Din Solenoid Connector | Body Ported | Not Vacuum Operable | Non Locking | 0.125 | 1/8" | €204.67 | |
 |
P261SS-120-A | 120V AC | 2 3/4" | Din Solenoid Connector | Base Mounted | Not Vacuum Operable | Non Locking | 1/8 | 1/4" | €247.20 | |
 |

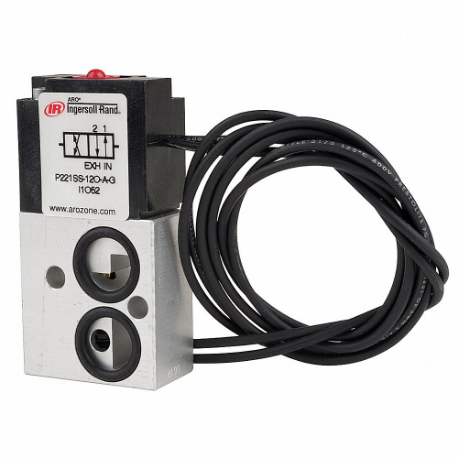

P221SC-120-A | 120V AC | 2 3/4" | Hardwired | Base Mounted | 0 in. hg to 29 in. hg | Non Locking | 1/8 | 1/4" | €385.45 | |
 |
P221SS-120-A | 120V AC | 2 3/4" | Hardwired | Base Mounted | 0 in. hg to 29 in. hg | Non Locking | 1/8 | 1/4" | €324.39 |
