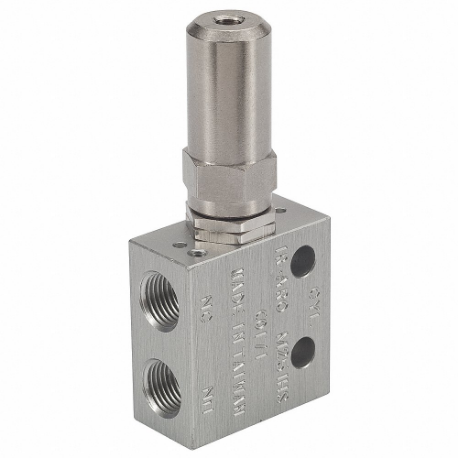

ARO M251PS Pilot Air Control Valve, Remote Pilot/Spring, 1/8 Inch NPT Valve Port Size
Item: CN8VWBModel: M251PSCross Ref: 4YTE8
7 In Stock
Ships within 2 days via
10.00% off
€114.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pilot Air Control Valve |
| Actuator Type | Remote Pilot |
| Actuator/return | Remote Pilot/Spring |
| Application | Air Motors |
| Body Material | Aluminum |
| Coefficient Of Volume | 0.19 |
| Flow Rate - Maximum | 7 SCFM |
| For Media | Air |
| Height | 2 1/2" |
| Length | 1 1/4" |
| Max. Flow Rate | 7 CFM |
| Max. Operating Pressure | 150 psi |
| Max. Temp. Range | +32°F to +160°F |
| Number Of Pilots | 1 |
| Number Of Ports | 3 |
| Number Of Positions | 2 |
| Number Of Ways | 3 |
| Operating Pressure - Minimum | 0 psi |
| Operating Temperature - Maximum | 160°F |
| Operating Temperature - Minimum | 32°F |
| Overall Height | 2 1/2" |
| Overall Length | 1 1/4" |
| Overall Width | 5/8" |
| Override | No Override |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 1/8" |
| Pilot Port Connection Type | NPT |
| Pilot Pressure | 35 psi |
| Port Size | 1/8" |
| Port Type | NPT |
| Product Type | Pilot Air Control Valve |
| Return Action | Spring Return |
| Seal Material | Buna-N |
| Series | MAXAIR Series |
| Uses | General Pneumatics Applications |
| Valve Action | Normally Closed |
| Valve Port Connection Gender | Female |
| Valve Port Connection Size | 1/8" |
| Valve Port Connection Type | NPT |
| Valve Type | Spool |
| Width | 0.63" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 3.18 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator/return | Number Of Ways | Body Material | Height | Max. Temp. Range | Coefficient Of Volume | Max. Flow Rate | Cycles Per Minute | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M252PS | Remote Pilot/Spring | 3 | Aluminum | 1.37" | 15°F to 122°F | - | - | - | €180.86 | |
 |
M253PS | Remote Pilot/Spring | 3 | Aluminum | - | 15°F to 122°F | 1.65 | - | - | €272.21 | |
 |
M254PS | Remote Pilot/Spring | 3 | Aluminum | 1.97" | - | - | - | - | €446.46 | |
 |
A222PD | Pilot/Pilot | 4 | Zinc | 2.438" | 0°F to +180°F | 1.9 | 68 CFM | 600 | €168.39 | |
 |
A211PD | Pilot/Pilot | 4 | Zinc | 1.812" | 0°F to +180°F | 0.9 | 30 CFM | 0 to 600 | €160.45 | |
 |
A249PD | Pilot/Pilot | 4 | Zinc | 1 7/8" | 0°F to +180°F | - | 39 CFM | 0 to 600 | €172.82 | |
 |
A213PD | Pilot/Pilot | 4 | Zinc | 2.031" | 0°F to +180°F | 1.7 | 61 CFM | - | €252.19 |
