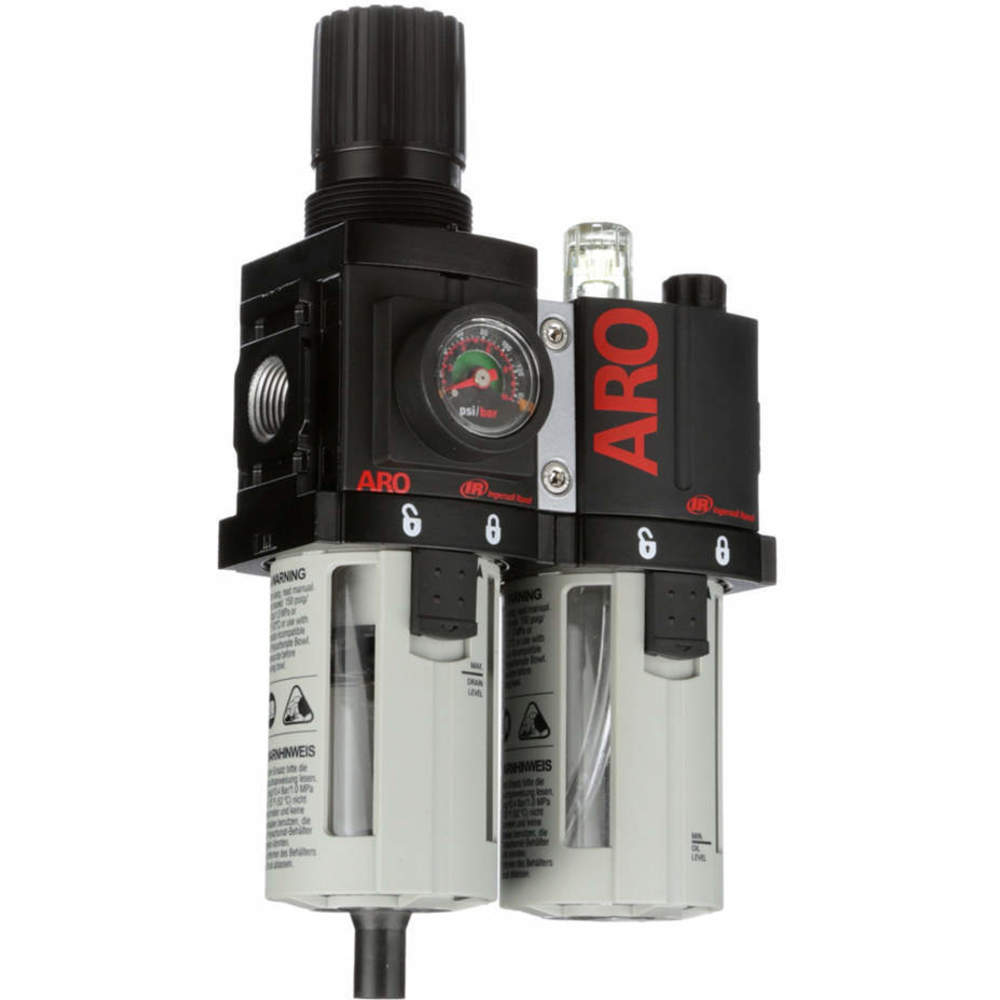

ARO C38231-600 Filter/regulator And Lubricator 71 Cfm
Item: AD9CQMModel: C38231-600Cross Ref: 4PJL6
7 In Stock
Ships within 2 days via
10.00% off
€419.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Filter/Regulator and Lubricator |
| Adjustable Pressure Range | 0 psi to 140 psi |
| Adjustment Knob | Standard |
| Adjustment Mechanism | Knob |
| Adjustment Range | 0 psi to 140 psi |
| Air Inlet Size | 3/8" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/8" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Bowl Material | Polycarbonate |
| Bowl Size | 1.3 oz. |
| Connection Style | Air Line |
| Drain Included | Yes |
| Drain Part Compatbility | 104425 |
| Filter Bowl Capacity | 1.3 oz. |
| Filter Bowl Guard Included | Yes |
| Filter Bowl Guard Material | Nylon |
| Filter Bowl Material | Polycarbonate |
| Filter Rating | 5 µm |
| For Fluid Type | Compressed Air |
| For Maximum Pipe Run | 6 ft. |
| For Substance Type | Air |
| Gauge Port | 1/8" NPT |
| Includes | Guard |
| Lubricator Bowl Capacity | 1.9 oz. |
| Lubricator Bowl Guard Included | Yes |
| Lubricator Bowl Guard Material | Polycarbonate |
| Lubricator Bowl Material | Polycarbonate |
| Max. Flow | 71 CFM |
| Max. Pressure | 150 psi |
| Max. Temp. | 125°F |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | 23°F |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Number Of Pieces | 2 |
| Overall Depth | 3 5/16" |
| Overall Height | 8 3/16" |
| Overall Width | 4 7/16" |
| Pipe Size | 3/8" |
| Pressure Control Type | Relieving |
| Pressure Drop | 33 psi |
| Pressure Gauge Included | Yes |
| Pressure Gauge Port Size | 1/8" |
| Pressure Gauge Port Type | NPT |
| Seal Material | Nitrile |
| Series | 1500 Series |
| Sight Dome Included | Yes |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 20.8 |
| Ship length (cm) | 8.41 |
| Ship width (cm) | 11.27 |
| HS code | 8481100040 |
| Country of Origin | KR |
Product Variants
| Product | Model | Filter Bowl Material | Air Inlet Size | Lubricator Bowl Capacity | Overall Width | Air Outlet Size | Lubricator Bowl Material | Overall Depth | Max. Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

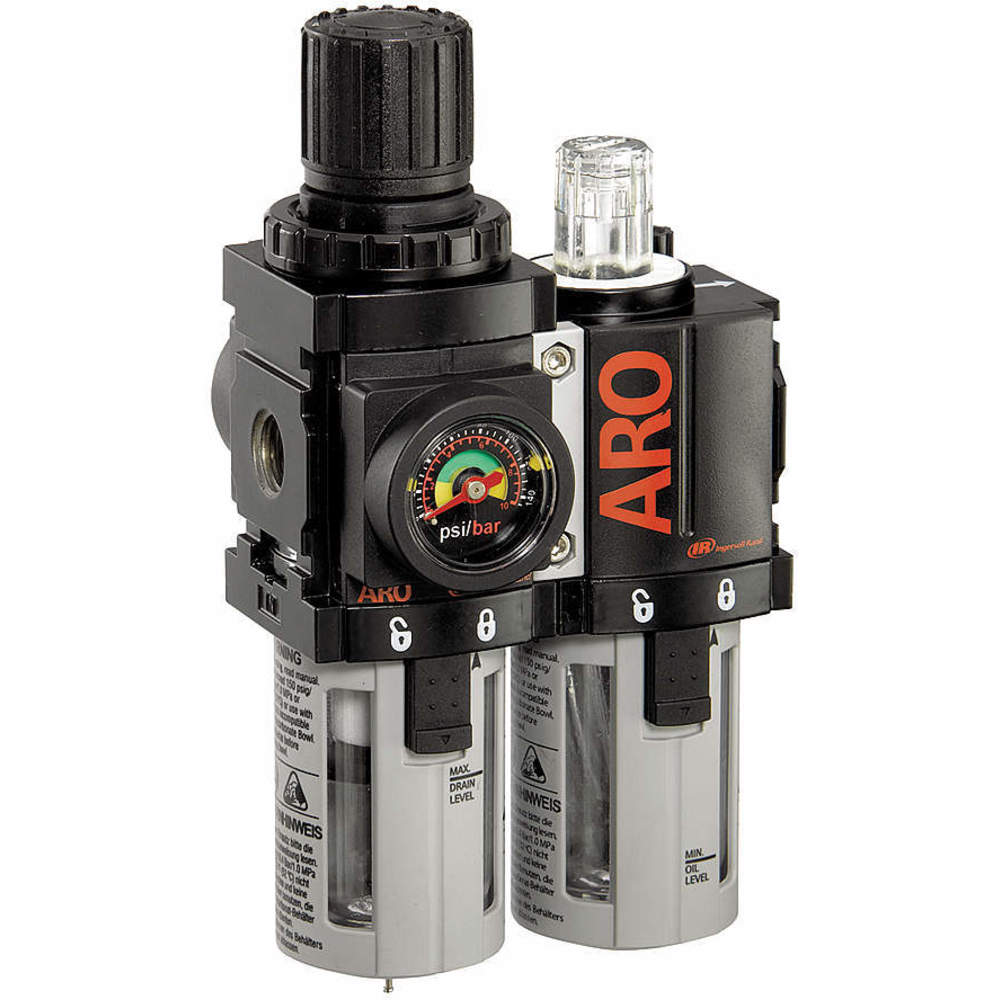

C38221-600 | Polycarbonate | 1/4" | 1.9 oz. | 4 7/16" | 1/4" | Polycarbonate | 3 5/16" | 125°F | €404.21 | |
|
C38231-610 | Metal | 3/8" | 1.5 oz. | 4 7/16" | 3/8" | Metal | 3 5/16" | 175°F | €569.51 | |
 |
C38221-800 | Polycarbonate | 1/4" | 1.9 oz. | 6 5/8" | 1/4" | Polycarbonate | 3" | 125°F | €475.46 | |
|
C38231-800 | Polycarbonate | 3/8" | 1.9 oz. | 6 5/8" | 3/8" | Polycarbonate | 3" | 125°F | €531.14 | |
|
C38221-810 | Metal | 1/4" | 1.5 oz. | 6 5/8" | 1/4" | Metal | 3" | 175°F | €481.27 | |
 |

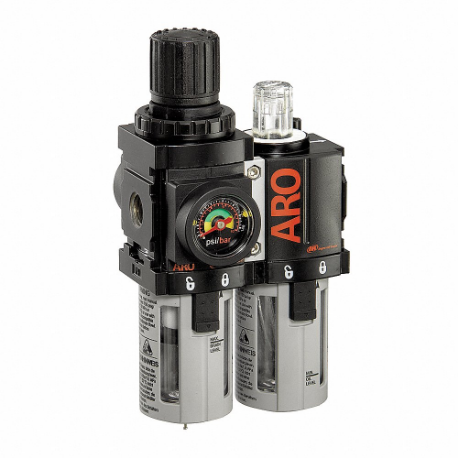

C38221-610 | Metal | 1/4" | 1.5 oz. | 4 7/16" | 1/4" | Metal | 3 5/16" | - | €541.43 | |
 |
C38231-810 | Metal | 3/8" | 1.5 oz. | 6 5/8" | 3/8" | Metal | 3" | - | €475.14 |
