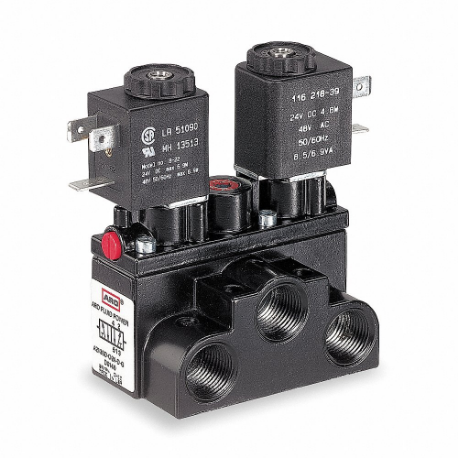

ARO A213SD-024-D Solenoid Air Control Valve, 24V Dc, 3/8 Inch Size Pipe Size, 50 To 150 Psi
Item: CN8VZQModel: A213SD-024-DCross Ref: 4XT35
7 In Stock
Ships within 2 days via
10.00% off
€471.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Solenoid Air Control Valve |
| Actuator Type | Double Solenoid |
| Ambient Temp. Range | 0°F to +180°F |
| Body Features | Single |
| Body Material | Zinc |
| Body Style | Base Mounted |
| Coefficient Of Volume | 1.7 |
| Electrical Connection | DIN Connectors |
| Electrical Connection Type | Din Solenoid Connector |
| Exhaust Port Connection Gender | Female |
| Exhaust Port Connection Size | 3/8" |
| Exhaust Port Connection Type | NPT |
| Fail Position | Open |
| For Media | Compressed Air, Inert Gas |
| Includes Mounting Hardware | Mounting Hardware Not Included |
| Includes Solenoid Coil | Yes |
| Inlet Port Connection Gender | Female |
| Inlet Port Connection Size | 3/8" |
| Inlet Port Connection Type | NPT |
| Lubrication | Lubrication Not Required |
| Max. Flow | 61 CFM |
| Nema Classification | NEMA 4 |
| Nema Rating | 4 |
| Number Of Positions | 2 |
| Number Of Ways | 4 |
| Operating Pressure - Maximum | 150 psi |
| Operating Temperature - Maximum | 180°F |
| Operating Temperature - Minimum | 0°F |
| Operational Pressure Range | 50 psi to 150 psi |
| Overall Height | 3 5/8" |
| Overall Length | 3 31/32" |
| Overall Width | 2 7/16" |
| Override | Non-Locking |
| Pilot Port Connection Gender | Female |
| Pilot Port Connection Size | 10-32 |
| Pilot Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Pipe Size | 3/8" |
| Power Consumption | 5.4 W |
| Product Type | Solenoid Air Control Valve |
| Response Time | 20 ms |
| Return Action | Solenoid Return |
| Series | Alpha Series |
| Shifting Technology | Solenoid, Pilot |
| Spool Material | Aluminum |
| Standards | Curus Listed |
| Vacuum Range | 0 in. hg to 29 in. hg |
| Vacuum Rating | Vacuum Operable |
| Valve Action | Normally Open |
| Valve Type | Spool |
| Valve Ways And Positions | 4-Way/2-Position |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 9.21 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Width | Overall Length | Pipe Size | Body Style | Voltage | Overall Height | Coefficient Of Volume | Valve Ways And Positions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A212SD-000-N | 1 15/16" | 3 31/32" | 1/4" | Base Mounted | - | - | 1.5 | - | €306.27 | |
 |
A249SS-120-A | 1 13/16" | 4" | 1/4" | Base Mounted | 120V AC | 3 21/32" | - | - | €275.13 | |
 |
A312SD-012-D | 1 15/16" | 3 31/32" | 1/4" | Base Mounted | 12V DC | 3 5/8" | 1.4 | - | €494.08 | |
 |
A312SD-120-A | 1 15/16" | 3 31/32" | 1/4" | - | 120V AC | 3 5/8" | 1.4 | - | €513.12 | |
|
A712SD-000-N | 1 15/16" | 3 31/32" | 1/4" | Base Mounted | - | - | 1.4 | - | €396.20 | |
|
A712SD-120-A | 1 15/16" | 3 31/32" | 1/4" | Base Mounted | 120V AC | - | 1.4 | - | €504.96 | |
 |
A213SS-024-D | 2 7/16" | 3 7/16" | 3/8" | Base Mounted | 24V DC | 3 5/8" | 1.7 | - | €374.90 |
