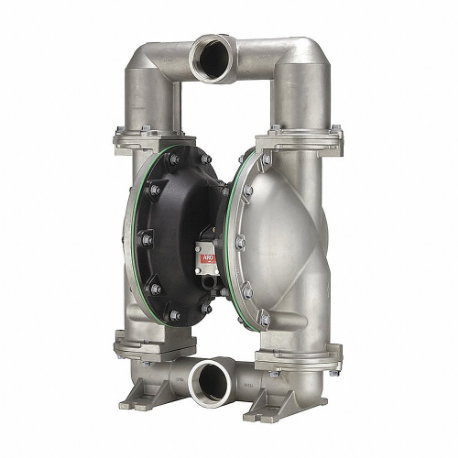

ARO 66630B-244-C Double Diaphragm Pump, Air, 316 Stainless Steel, 3 Inch Fluid Connection Size, Npt, Ptfe
Get it by Monday, Feb 16
10.00% off
€19,892.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Check Seat Material | Stainless Steel |
| Connection Size | 3" |
| Connection Type | NPTF |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 40 Psi | 0 GPM |
| Flow Rate @ 70 Psi | 0 GPM |
| For Use With Potable Systems | Yes |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Inlet Size | 3/4" |
| Inlet Type | NPTF |
| Manifold Connection Type | Single Port |
| Max. Flow Rate | 237 GPM |
| Max. Head | 289 ft. |
| Max. Media Temp. | 225°F |
| Max. Outlet Pressure | 10 psi |
| Max. Solid Dia. | 0.38" |
| Min. Media Temp. | 40°F |
| Overall Height | 30" |
| Overall Length | 22 1/5" |
| Overall Width | 24 2/5" |
| Power Source | Air |
| Rated Air Pressure | 10 psi |
| Series | 6663XX Series |
| Valve Material | PTFE |
| Valve Type | Ball |
Shipping Info:
| Ship weight (kg) | 120.6 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 56.39 |
| Ship width (cm) | 61.98 |
| Country of Origin | CN |
Product Variants
| Model | Housing Material | Diaphragm Material | Valve Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Overall Height | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 666300-G22-C | Aluminum | Buna N | Buna N | Buna N | 0.37" | 180°F | 32.3" | 22.2" | €6,642.55 | |
| 666300-9C9-C | - | - | - | - | - | - | - | - | €5,586.17 | |
| 666300-EEB-C | - | - | - | - | - | - | - | - | €5,337.90 | |
| 666301-244-C | - | - | - | - | - | - | - | - | €20,461.97 | |
| 666301-EEB-C | - | - | - | - | - | - | - | - | €18,237.84 | |
| 666301-2EB-C | - | - | - | - | - | - | - | - | €18,899.91 | |
| 666321-444-C | - | - | - | - | - | - | - | - | €19,665.42 |
