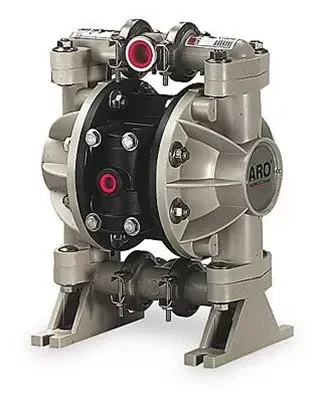

ARO 666053-389 Diaphragm Pump, Non-Metallic, 1/2 Inch Size
Get it by Tuesday, Aug 18
€1,417.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Air End Repair Kit | 637141 |
| Air Inlet | 1/4 NPT |
| Average Displacement | 0.04 gal. |
| Ball Material | Polyurethane |
| Diaphragm Material | Hytrel |
| Height | 11 1/4" |
| Inlet Outlet Port Size | 1/2" |
| Inlet Outlet Port Type | NPT |
| Length | 6 7/16" |
| Max. Flow Rate | 13 GPM |
| Max. Pressure | 100 psi |
| Max. Solids Dia. | 3/32" |
| Porting | Top Discharge |
| Ratio | 1:1 |
| Type Design | Non Metallic Bolted |
| Wet End Repair Kit | 637140-XX |
Shipping Info:
| Ship weight (kg) | 4.28 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Media Temp. | Diaphragm Material | Overall Width | Wetted Material | Outlet Size | Max. Solid Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD01P-HPS-PTT-A | Polypropylene | 5.4 GPM | 225°F | PTFE | 5 3/5" | - | - | 0.06" | €1,005.95 | |
 |
DAB05-PPUU-2-F | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,569.43 | |
|
DAB05-PPAA-2-E | Polypropylene | 14.4 GPM | - | - | - | Polypropylene, Santoprene | - | - | €1,760.96 | |
|
DAB05-SSTT-2-H | Stainless Steel | 12 GPM | - | - | - | Stainless Steel, PTFE | 5/8" | - | €3,676.31 | |
|
DAB05-ASCC-2-G | Aluminum | 12 GPM | - | - | - | Aluminum, Hytrel | 1/2" | - | €1,946.83 | |
 |
666053-388 | Polypropylene | 13.1 GPM | 150°F | Polyurethane | 6 1/2" | - | - | 0.09" | €1,643.36 | |
 |
66605J-344 | Polypropylene | 13.1 GPM | 225°F | PTFE | 6 1/2" | - | - | 0.09" | €1,990.19 |
