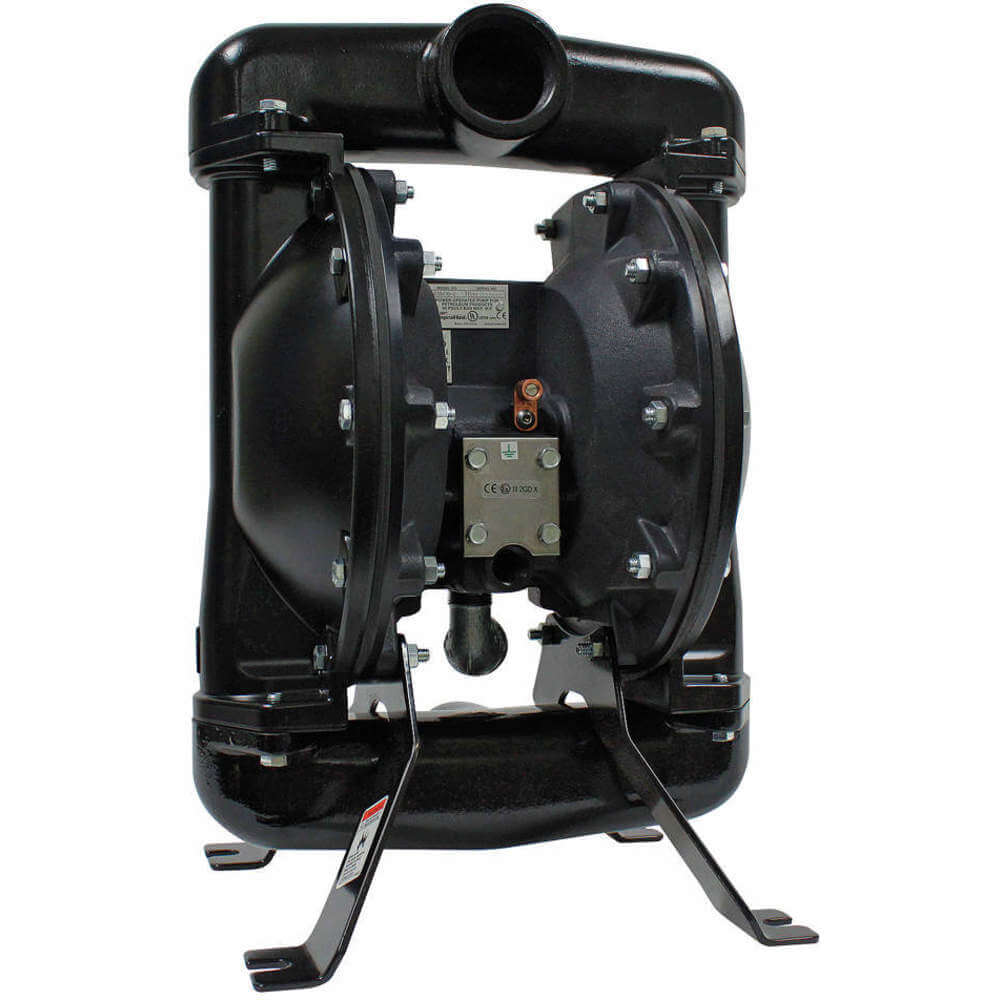

ARO 650719-C Double Diaphragm Pump Air Operated 2 Inch
Get it by Wednesday, Apr 1
5.00% off
€4,985.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 105 SCFM |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Ball Material | Acetal |
| Center Section Material | Aluminum |
| Check Seat Material | Polypropylene |
| Compatible Chemicals | Diesel, Gasoline, Kerosene, Oils |
| Connection Size | 2" |
| Connection Type | FNPT |
| Diaphragm Material | Viton |
| Display Qty | 1 |
| Flow Rate @ 40 Psi | 130 GPM |
| Flow Rate @ 50 Psi | 148.5 GPM |
| Fluid Intake Connection | 2" Fnpt |
| Fluid Outlet Connection | 2" Nptf |
| For Use With Potable Systems | No |
| Housing Material | Aluminum |
| Inlet Size | 3/4" |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 50 psi |
| Max. Flow Gpm | 75 |
| Max. Flow Rate | 148.5 GPM |
| Max. Head | 55 ft. |
| Max. Media Temp. | 180°F |
| Max. Operating Pressure | 50 psi |
| Max. Solid Dia. | 1/4" |
| Max. Viscosity | 50000 cPS |
| Media Discharge Location | Center |
| Media Intake Location | Center |
| Min. Media Temp. | 0°F |
| Operation Type | Air Operated |
| Overall Height | 19 4/5" |
| Overall Length | 18 2/5" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 50 psi |
| Self Priming | Yes |
| Self Priming Dry | 27 ft. |
| Self-priming Dry | 27 ft. |
| Series | Specialty Series |
| Series Family | Specialty |
| Standards | Ul 79 |
| Valve Material | Acetal |
| Valve Type | Ball |
| Warranty | 5 yrs. |
Shipping Info:
| Ship weight (kg) | 27.45 |
| Ship height (cm) | 50.29 |
| Ship length (cm) | 46.74 |
| Ship width (cm) | 48.77 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Material | Max. Flow Rate | Max. Media Temp. | Diaphragm Material | Max. Solid Dia. | Valve Material | Valve Type | Check Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
PD01P-HPS-PTT-A | Polypropylene | 5.4 GPM | 225°F | PTFE | 0.06" | PTFE | Ball | Polypropylene | €1,001.87 | |
 |
DAB05-PPUU-2-F | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,569.43 | |
|
DAB05-PPAA-2-E | Polypropylene | 14.4 GPM | - | - | - | - | - | - | €1,760.96 | |
|
DAB05-SSTT-2-H | Stainless Steel | 12 GPM | - | - | - | - | - | - | €3,676.31 | |
|
DAB05-ASCC-2-G | Aluminum | 12 GPM | - | - | - | - | - | - | €1,946.83 | |
 |
666053-388 | Polypropylene | 13.1 GPM | 150°F | Polyurethane | 0.09" | Polyurethane | Ball | Polypropylene | €1,634.13 | |
 |
66605J-344 | Polypropylene | 13.1 GPM | 225°F | PTFE | 0.09" | PTFE | Ball | Polypropylene | €1,918.93 |
