ARCH CUTTING TOOLS SH20 DTFNL3 Boring Bar
Get it by Friday, Aug 21
€519.60 /unit
Add To Cart
Request a Quote
Payment
Delivery

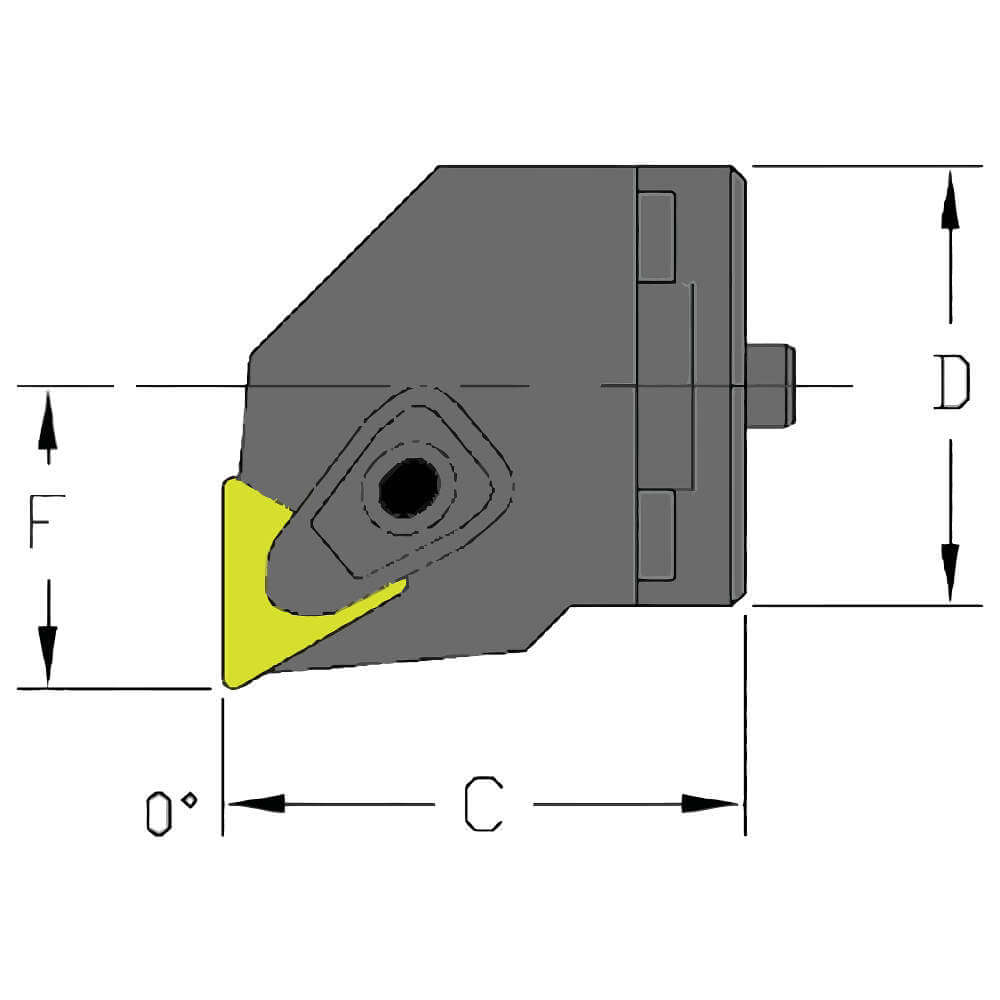

Product Specifications:
| Item | Boring Bar |
| Bar Dia. | 1.260" |
| Center To Cutting Tip | 0.866" |
| Compatible Hardware | Clamp Assembly PB3-CA, Shim Screw PB3-SS, Shim Seat ITSN-323 |
| Connection Size | 32 mm |
| Coolant Fed | Coolant Through |
| Cutting Angle | 0° |
| Cutting Application | Boring |
| Cutting Direction | Left |
| Cutting Edge Angle | 0° |
| Hardware Required | Clamp Assembly Pb3-Ca, Shim Screw Pb3-Ss, Shim Seat Itsn-323 |
| Inscribed Circle | 3/8" |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Pullback Clamp |
| Insert Inscribed Circle | 3/8" |
| Insert Shape | Triangle |
| Insert Size | 332 |
| Insert Style | TNMG |
| Insert Thickness | 0.187" |
| Lead Angle | 0° |
| Min. Bore Dia. | 1.575" |
| Mounting Style | Pullback Clamp |
| Overall Length | 1.496" |
| Rake | Negative |
| Shank Material | Steel |
| Side Cutting Edge Angle | 0° |
| Style | Chatter Free |
| Toolholder Style | DTFN |
| Type | Turning |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.2 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Min. Bore Dia. | Mounting Style | Insert Size | Cutting Direction | Lead Angle | Cutting Angle | Cutting Edge Angle | Insert Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SH16 SCLCL3 | 1.26" | - | 32.52 | Left | -5° | -5° | -5° | Diamond | €415.22 | |
 |
SH16 SCLCR3 | 1.26" | Screw Lock | 32.52 | Right | -5° | -5° | -5° | Diamond | €411.04 | |
 |
SH16 SDNCL2 | 1.299" | Screw Lock | 21.51 | Left | 27.5° | 27.5° | 27.5° | Diamond | €411.04 | |
|
SH16 SDNCR2 | 1.299" | Screw Lock | 21.51 | Right | 27.5° | 27.5° | 27.5° | Diamond | €411.04 | |
 |
SH16 SDUCL3 | 1.26" | Screw Lock | 32.52 | Left | -3° | -3° | -3° | Diamond | €411.04 | |
|
SH16 SDUCR3 | 1.26" | Screw Lock | 32.52 | Right | -3° | -3° | -3° | Diamond | €411.04 | |
 |
SH16 SDXCL2 | 1.299" | Screw Lock | 21.51 | Left | 5° | 5° | 5° | Diamond | €411.04 |
