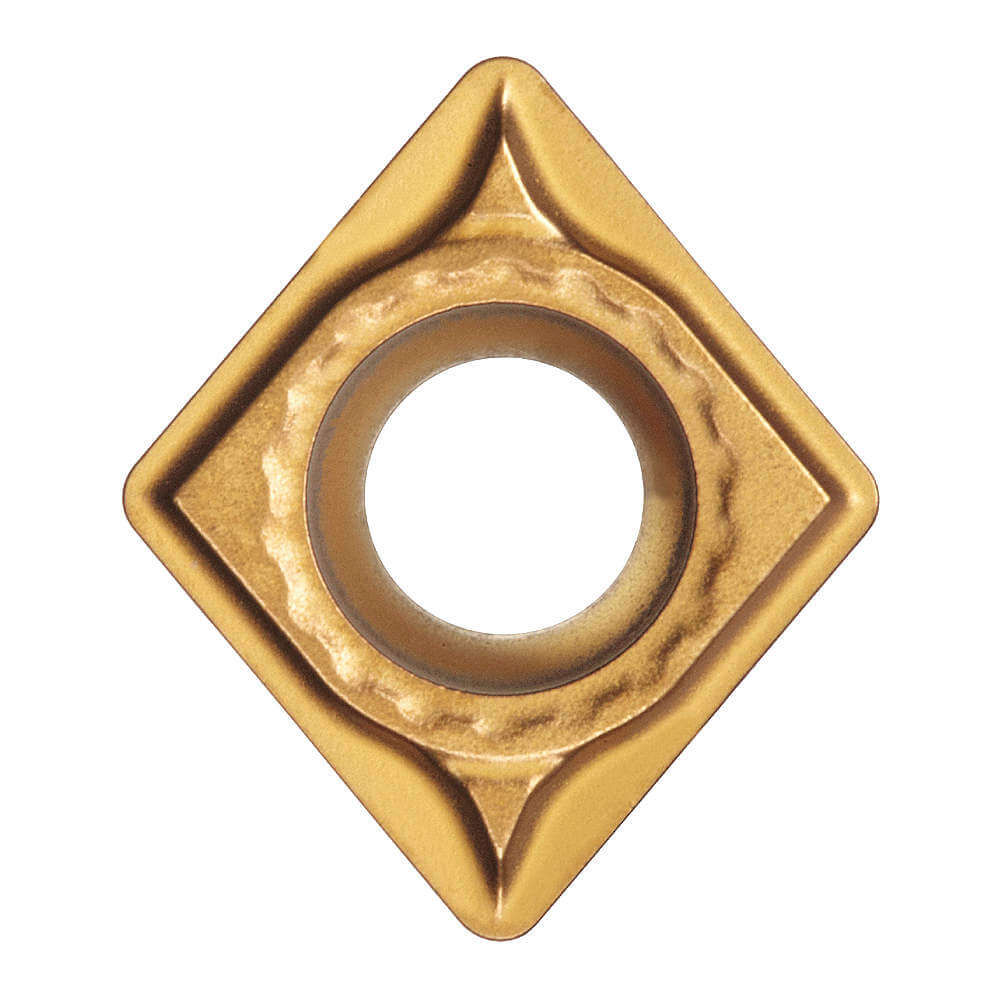

ARCH CUTTING TOOLS CDGT 1.511 UD2 Carbide Insert
Get it by Tuesday, Aug 25
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Carbide Insert |
| Chip Breaker | Yes |
| Chip-breaker Code | Zx3 |
| Clearance Angle | 15° |
| Coating | Uncoated |
| Corner Radius | 1/64" |
| Cutting Application | Boring, Turning |
| Cutting Direction | Neutral |
| Finish-machining | Bright (Uncoated) |
| Grade | Grade UD2 |
| Included Angle | 80° |
| Inscribed Circle | 3/16" |
| Insert Code | CDGT11 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Shape | Diamond |
| Insert Style | CDGT |
| Insert Thickness | 0.063" |
| Iso Number | 040104 |
| Manufacturer Grade | UD2 |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.085" |
| Mounting Style | Screw Lock |
| No. Of Cutting Edges | 2 |
| No. Of Edges | 2 |
| Nose Radius | 0.015" |
| Primary Material Application | All Materials |
| Rake | Positive |
| Secondary Material Application | Cast Iron, Ferrous Material |
| Secondary Material Application Iso Code | K, N |
| Shape | Rhombic |
| Style | CDGT |
| Thickness | 1/16" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Model | Primary Material Application | Material-machining | Primary Material Application Iso Code | Grade | Coating | Nose Radius | Inscribed Circle | Finish-machining | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CDGT 1.510.5 UD2 | - | - | - | Grade UD2 | Uncoated | 0.008" | 0.187" | - | - | RFQ
|
| CDGT 1.510.5 UD21 | Cast Iron | Carbide | K | Grade UD21 | TiAlN | 0.008" | 3/16" | TiAlN | - | RFQ
|
| CDGT 1.510.5 UD51 | Steel | Carbide | P | Grade UD51 | Tin | 0.008" | 3/16" | Tin | - | RFQ
|
| CDGT 1.510.5 UD52 | Nickel, Steel, Titanium | Carbide | P, S | Grade UD52 | TiAlN | 0.008" | 3/16" | TiAlN | - | RFQ
|
| CDGT 1.510.5 UD5C | All Materials | Carbide | - | Grade UD5C | Uncoated | 0.008" | - | Bright (Uncoated) | - | RFQ
|
| CDGT 1.510.5 UD5CT | Steel | Carbide | P | Grade UD5CT | TiAlN | 0.008" | 3/16" | TiAlN | - | RFQ
|
| CDGT 1.511 UD21 | Cast Iron | Carbide | K | Grade UD21 | TiAlN | 0.015" | 3/16" | TiAlN | - | RFQ
|
